Cloud Warehousemultifunction Packaging Machine

【basic introduction 】

 Combined packaging machine: to complete two or more automatic packaging processes of equipment through the combination of the packaging machine with different functions, which can meet different packaging requirements according to the actual situation.

【equipment characteristics 】

⊕ Seal and shrinkage machine: automatic membrane sealing, after heating, make the shrinking film shrink and wrap the product, seal and shrink once.

【machine parameters 】

〔〔Pillow packaging machine + shrinking machine——HS-102-ZS〕〕

『Pillow packaging machine』

Power supply: 220V, 50 / 60Hz

Power: 4.75KW

Packaging Film Width: Max.590mm

Bag length and size: 60-320mm

Wide material size: 10-200mm

High content size: 5-35mm

Packaging speed: 30-150 pack / min

Film type: PVC, POF and other thermal shrinkage film

Dimensions: L480 * W117 * H150cm

Weight: 760kg

『shrinker』

Power supply: 380V, 50 / 60Hz

Power: 13.5KW

Overall dimension: L260 * W60 * H170cm

Size of furnace channel: L230 * W25 * H20cm

Weight: 380kg

〔〔Semi-automatic cuff wrapping machine + air jet shrinking machine——HS-103-TS〕〕

『Cover film machine』

Power supply specification: 220V, 50 / 60Hz

Power: 1.5KW

Working air pressure: 5-7 kg / cubic meter. 2 cm 3

Packaging size (Max): L550 * W400 * H380mm

Seal length (Max): 650mm

Packaging speed: 0-10bags / min

Height: 800 ± 50mm

Applicable shrinkage film: PVC, PE

Machine size: L925 * W1040 * H1920mm

Net weight: 300kg

『shrinker』

Power supply: 380v, 50-60 HZ

Power: 24KW

Size of furnace channel: L1800 * W600 * H500mm

Product size: W550 * H450mm

Delivery speed: 0-15m / min

Delivery material: mesh belt. Chain roller.teflon

Delivered load: max.50kg

Machine size: L2500 * W900 * H1750mm

Overall weight: 450kg

Applicable shrinkage film: PE.POF.PVC

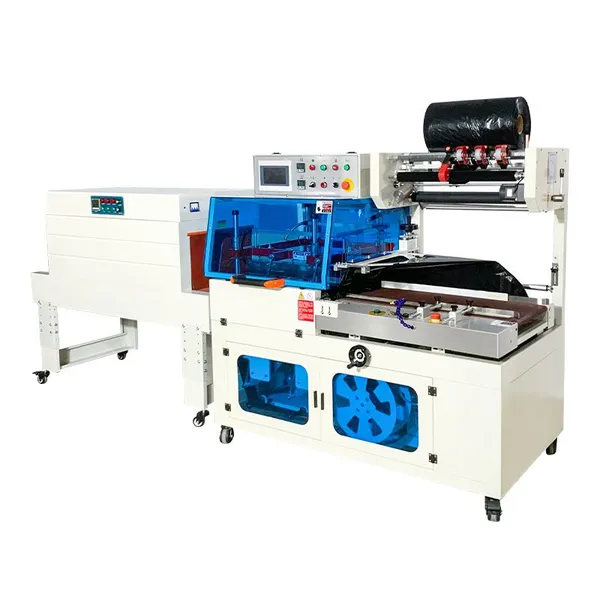

〔〔L-type sealing machine + thermal shrinkage machine——HS-FQ450+HS-SS4020C〕〕

『Seal cutting machine』

Power supply: 220V,1.35KW

Contrtraction membrane: POF, PE

Weight: 300kg

Packaging speed: 15-30bags / min

Use gas source: 5-7 kg / cubic meter 2 cm 3

Package size L + H: <500mm (H <150mm)

Package size W + H: <400mm (H <150mm)

Sealing knife size: L550 * W450mm

Overall dimension: L1650 * W800 * H1450mm

『shrinker』

Power supply: 380V, 9KW

Contrtraction membrane: POF, PVC, PE, PP

Weight: 80kg

Size of shrinkage furnace: L1200 * W400 * H200mm

Delivery speed: 0-15m / min

Delivery material: mesh belt, chain roller, Teflon

Delivery load: Max.20kg

Overall machine size: L1600 * W560 * H660mm

〔〔L-type sealing machine + thermal shrinkage machine——HS-FQ550-A+HS-SS4020C〕〕

『Seal cutting machine』

Power supply: 220V, 50 / 60Hz

Power: 1.5KW

Use gas source: 5-7 kg / cubic meter 2 cm 3

Packaging speed: 15-30bags / min

Package size L + H: <600mm (H <150mm)

Package size W + H: <500mm (H <150mm)

Sealing knife size: L650 * W550mm

Machine size: L1750 * W900 * H1450mm

Overall weight: 350kg

Applicable shrinkage film: POF, PE

『shrinker』

Power supply voltage: 380V, 50 / 60Hz

Power: 9KW

Size of shrinkage furnace: L1200 * W400 * H200mm

Product size: W350 * H150mm

Delivery speed: 0-15m / min

Delivery material: mesh belt, chain roller, Teflon

Delivery load: Max.20kg

Machine size: L1600 * W560 * H660mm

Overall weight: 80kg

Application: POF, PVC, PE, PP

〔〔Vertical sealing machine + one-click paste single machine——HS-FQ5545C+HS-TB101〕〕

『Seal cutting machine』

Power supply: 220V, 50 / 60Hz

Power: about 3KW

Packaging speed: 15-30bags / min

Sealing knife size: L550 * W450mm

Opening size: 180mm

Air pressure: 0.5 MPA

Delivery load: Max.15kg

Applicable shrinkage applicable: PE

Machine size: L1630 * W900 * H1470mm

Overall weight: 300kg

『Paste machine』

Type: research control step motor control

Order speed: 40-100 pieces / min

Order accuracy: ± 3mm

Exit speed: 25 m / min

Conveyor belt speed: 25 m / min

Conveyor belt length: 1,000 mm

Height: 600-850mm

Host direction: right and left

Carton Height: Max.300mm

Carton width: Max.300mm

Overall dimension: L1000 * W500 * H1200mm

Weight: 100kg

Power: 400W

Power supply: 220V, 50 / 60Hz

Operating ambient relative temperature: 0 to 50℃

Use of relative humidity: 15~90%

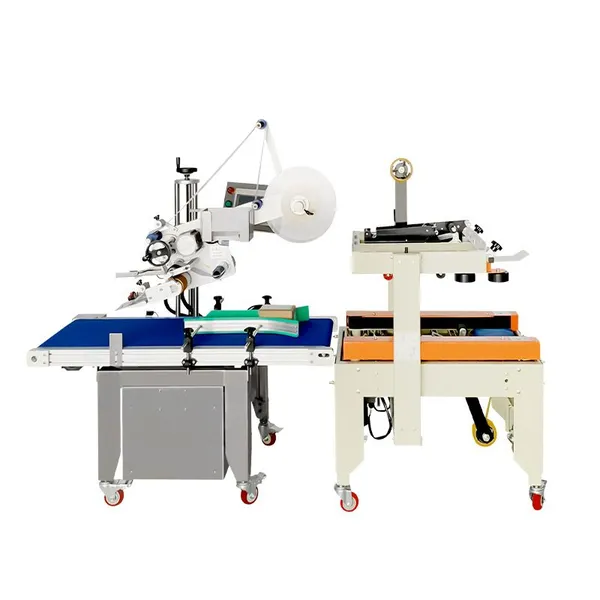

〔〔Touch screen type stick single machine + e-commerce box sealing machine——HS-TB102+HS-FX4030-A〕〕

『cartoning sealing machine』

Power supply voltage: 220V, 50Hz

Seal length range: 130mm-unlimited

Seal width range: 80-300mm

Seal height range: 90-400mm

Applicable width of the adhesive tape: 30-50mm

The reserved length of the tape on both sides: within 6cm

Drive mode: left and right drive

Applicable tape type: PVC, BOPP

Overall dimension: L152 * W63 * H139cm

『Paste machine』

Power supply specification: 220V, 50 HZ

Order speed: 25-30 times / min

Order accuracy: ± 1mm

Face single length range: 20-300mm

Face single width range: 30-120mm

Carton Height: Max.300mm

Carton width: Max.400mm

Overall dimension: L150 * W68 * H144cm

Overall weight: 200kg

Note: As the machine is constantly updated, the specific parameters are subject to the physical or contract.
