Vegetablespackaging Integrated Machine Combined Packaging Equipment

〖brief introduction 〗

 Combined packaging machine: to complete two or more automatic packaging processes of equipment through the combination of the packaging machine with different functions, which can meet different packaging requirements according to the actual situation.

〖features 〗

〓 Closing and pasting single machine: automatic bagging, sealing and veneer in a single step.

〖Technical parameters 〗

〔〔Pillow packaging machine + shrinking machine——HS-101-ZS〕〕

『Pillow packaging machine』

Power supply: 220V, 50 / 60Hz

Power: 4.75KW

Packaging Film Width: Max.590mm

Bag length and size: 80-450mm

Wide material size: 20-200mm

High content size: 5-90mm

Packaging speed: 30-175 pack / min

Film type: POF

Machine size: L490 * W113 * H150cm

Weight: 1,200 kg

『shrinking machine』

Power supply: 380V, 50 / 60Hz

Power: 13.5KW

Dimensions: L2600 * W600 * H1750mm

Weight: 380kg

〔〔Pillow packaging machine + shrinking machine——HS-102-ZS〕〕

『Pillow packaging machine』

Power supply: 220V, 50 / 60Hz

Power: 4.75KW

Packaging Film Width: Max.590mm

Bag length and size: 60-320mm

Wide material size: 10-200mm

High content size: 5-35mm

Packaging speed: 30-150 pack / min

Film type: PVC, POF and other thermal shrinkage film

Dimensions: L480 * W117 * H150cm

Weight: 760kg

『shrinker』

Power supply: 380V, 50 / 60Hz

Power: 13.5KW

Overall dimension: L260 * W60 * H170cm

Size of furnace channel: L230 * W25 * H20cm

Weight: 380kg

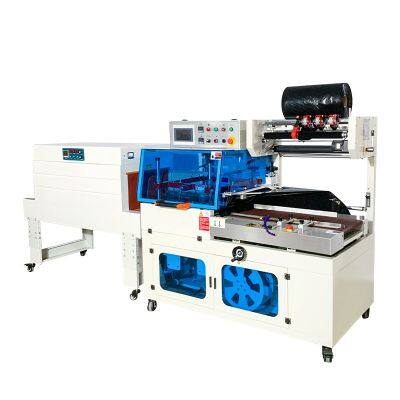

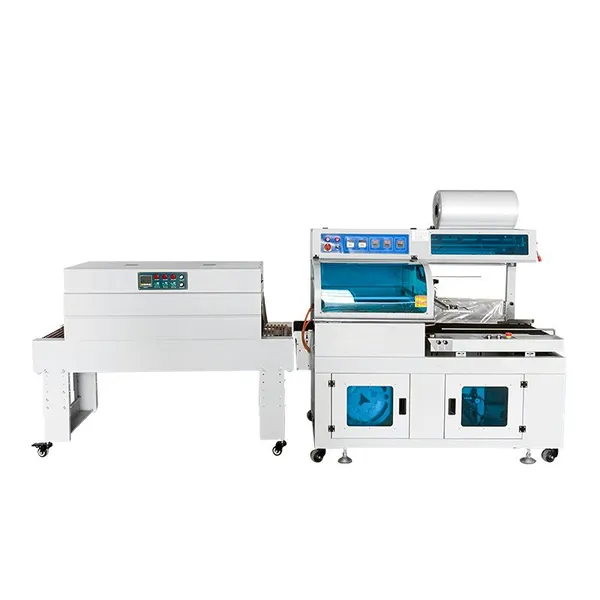

〔〔L-type sealing machine + thermal shrinkage machine——HS-FQ450+HS-SS4020C〕〕

『Seal cutting machine』

Power supply: 220V,1.35KW

Contrtraction membrane: POF, PE

Weight: 300kg

Packaging speed: 15-30bags / min

Use gas source: 5-7 kg / cubic meter 2 cm 3

Package size L + H: <500mm (H <150mm)

Package size W + H: <400mm (H <150mm)

Sealing knife size: L550 * W450mm

Overall dimension: L1650 * W800 * H1450mm

『shrinker』

Power supply: 380V, 9KW

Contrtraction membrane: POF, PVC, PE, PP

Weight: 80kg

Size of shrinkage furnace: L1200 * W400 * H200mm

Delivery speed: 0-15m / min

Delivery material: mesh belt, chain roller, Teflon

Delivery load: Max.20kg

Overall machine size: L1600 * W560 * H660mm

〔〔L-type sealing machine + thermal shrinkage machine——HS-FQ550+HS-SS4020C〕〕

『Seal cutting machine』

Power supply: 220V, 50 / 60Hz

Power: 1.5KW

Use gas source: 5-7 kg / cubic meter 2 cm 3

Packaging speed: 15-30bags / min

Package size L + H: <600mm (H <150mm)

Package size W + H: <500mm (H <150mm)

Sealing knife size: L650 * W550mm

Machine size: L1750 * W900 * H1450mm

Overall weight: 350kg

Applicable shrinkage film: POF, PE

『shrinker』

Power supply voltage: 380V, 50 / 60Hz

Power: 9KW

Size of shrinkage furnace: L1200 * W400 * H200mm

Product size: W350 * H150mm

Delivery speed: 0-15m / min

Delivery material: mesh belt, chain roller, Teflon

Delivery load: Max.20kg

Machine size: L1600 * W560 * H660mm

Overall weight: 80kg

Application: POF, PVC, PE, PP

〔〔Side sealing and cutting machine + heat shrinkage machine——HS-FQ550B+HS-SS5030〕〕

『Seal cutting machine』

Power supply: 220V, 50 / 60Hz

Power: 1.5KW

Use gas source: 5-7 kg / cubic meter 2 cm 3

Packaging speed: 15-30bags / min

Packaging size (L + H): No

Packaging size (W + H): <500mm

Seal knife size (L * W): unlimited * 550mm

Machine size: L1750 * W900 * H1450mm

Overall weight: 350kg

Applicable shrinkage film: POF, PE

『shrinker』

Power supply specification: 380V, 50 / 60Hz

Power:: 11KW

Delivery speed: 0-15m / min

Delivery material: mesh belt, chain roller, Teflon

Delivery load: Max.20kg

Size of shrinkage furnace: L1200 * W500 * H300mm

Product size: W450 * H250mm

Overall weight: 90kg

Applicable shrinkage film: PVC, POF

Overall machine size: L1600 * W660 * H760mm

〔〔Vertical sealing machine + thermal shrinkage machine——HS-FQ5545C+HS-SS5030〕〕

『Seal cutting machine』

Power supply: 220V, 50 / 60Hz

Power: about 3KW

Packaging speed: 15-30bags / min

Sealing knife size: L550 * W450mm

Opening size: 180mm

Air pressure: 0.5 MPA

Delivery load: Max.15kg

Applicable actile applicable: POF

Machine size: L1630 * W900 * H1470mm

Overall weight: 300kg

『shrinker』

Power supply specification: 380V, 50 / 60Hz

Power:: 11KW

Overall machine size: L1600 * W660 * H760mm

Delivery speed: 0-15m / min

Delivery material: mesh belt, chain roller, Teflon

Delivery load: Max.20kg

Size of shrinkage furnace: L1200 * W500 * H300mm

Product size: W450 * H250mm

Overall weight: 90kg

Applicable shrinkage film: PVC, POF
