Manufacture API cementing plug/top and bottom plug for oilfield drilling

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Port tianjin or qingdao or shanghai or lianyungang
Payment TermsT/T L/C Other
Delivery Detail10 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

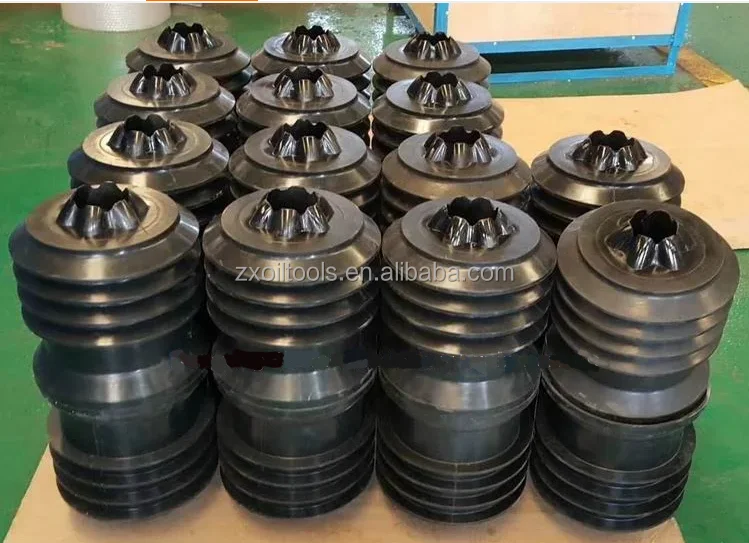

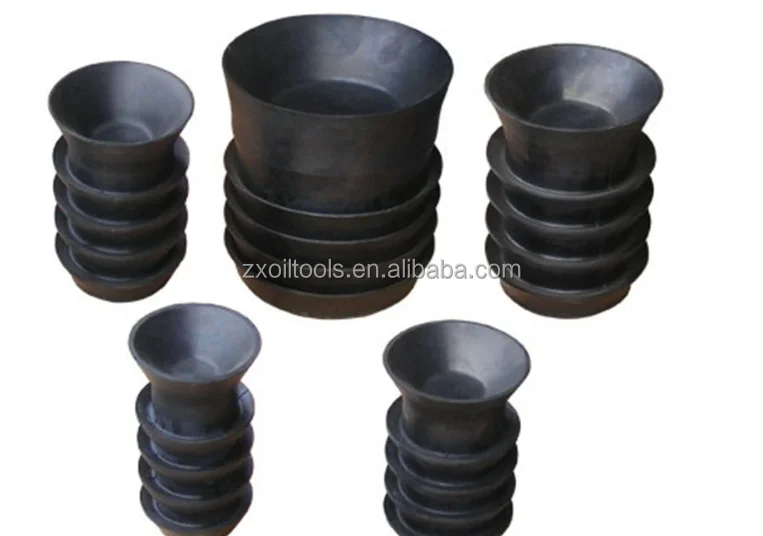

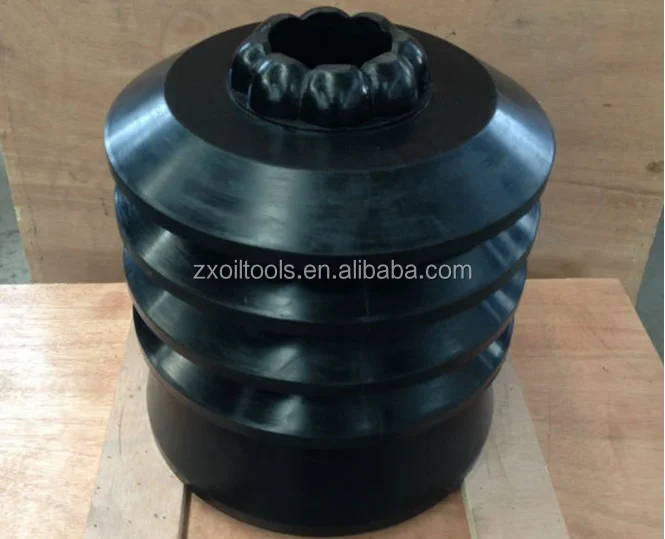

Cementing Plugs from high-performance special elastomers and core materials. These Cementing Plugs are specially designed with a positive wiping action to ensure that the casing is clean.

Bottom Plugs:Like the Top Cementing Plug, the fins and tail section provide positive wiping action. Fins also serve as a seal while cementing. The core of the bottom plug also made of special materials such as Plastic, Aluminium or Phenolic depending on the application and well conditions. A rubber diaphragm at the top of the plug ruptures after the plug is seated allowing cement to flow through.

Top Plugs:The Top Cementing Plug is designed to exert continuous pressure on the casing wall. The core is made of special materials such as Plastic, Aluminium or Phenolic depending on the application and well conditions. The tapered base fits the cavity of the top plug initiating a positive seal. A solid rubber top plug is also available.

Specification:

Casing size(in)	Casing weight range		Wiper Fin O.D
Casing size(in)	mm	in	mm	in
4 1/2"	14.14-17.26	9.50-11.60	110	4.331
5"	17.11-35.86	11.50-24.10	122	4.803
5 1/2"	20.83-39.88	14.00-26.80	135	5.315
7"	25.30-56.55	17.00-38.00	170	6.693
7 5/8"	35.72-63.69	24.00-42.00	185	7.283
9 5/8"	53.57-79.62	36.00-53.50	235	9.252
10 3/4"	60.27-97.77	40.50-65.70	260	10.236
13 3/8"	71.43-107.15	48.00-72.00	333	13.110
20"	139.89-197.93	94.00-133.00	498	19.606
