Overview
Product Description

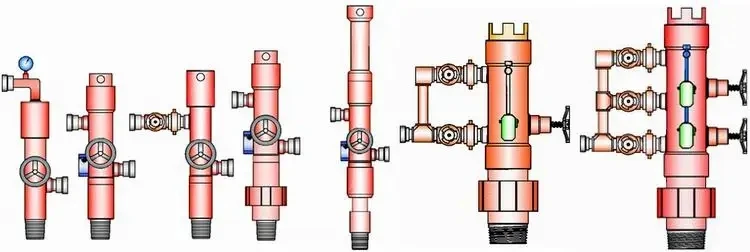

Cementing Head Type
Features:
* Main parts are made from AISI4145H alloy steel.
* Quick-latch adapter is designed to offer easier, faster and safer makeup for two-stage cementing.
* It is manufactured utilizing API grade steels with API threads.
* Positive lever indicates plug releasing.
* Balance pipe is developed.

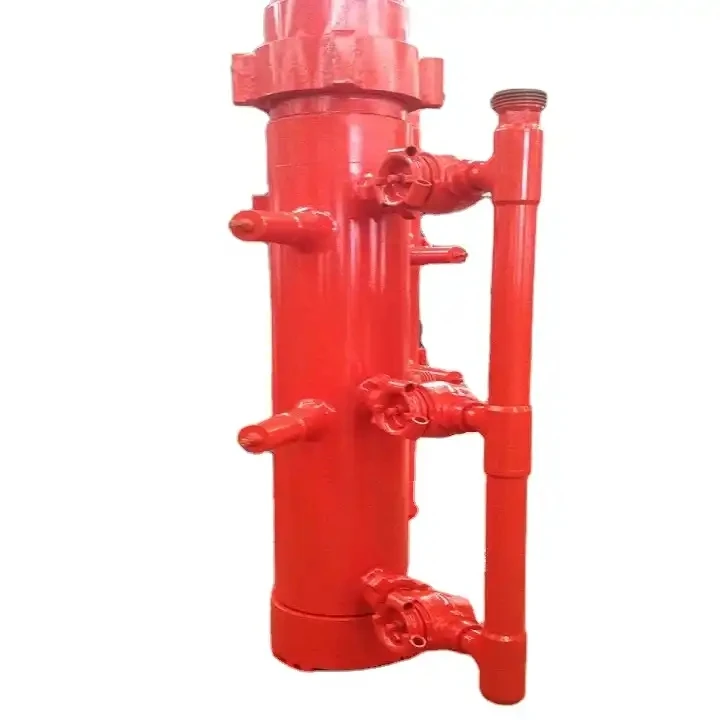

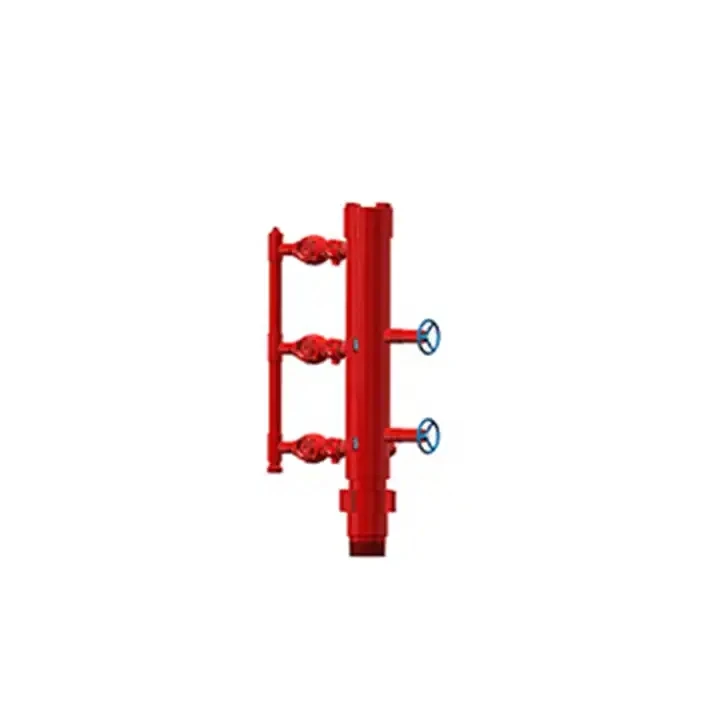

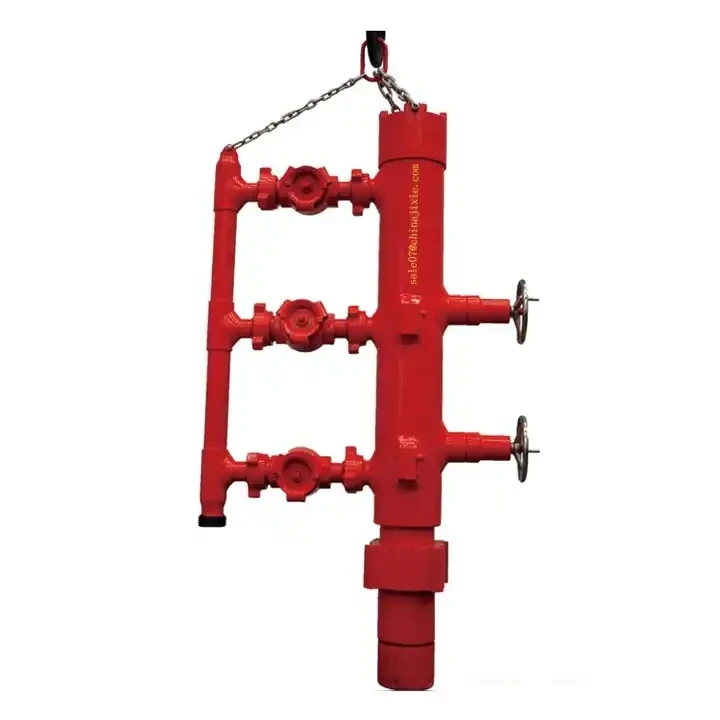

Oilfield Conventional Double Plugs Cementing Head
Double plug cementing head is a special tool for pumping slurry and releasing plug which can couple with two plugs simultaneously and makes the drilling fluid fill into casing in turn and quickly.
| TYPE | 127 | 177.8 | 244.5 | 339.7 |
| (5″) | (7″) | (95/8″) | (133/8″) | |
| Max rated pressure(Mpa) | 35 | 35 | 35 | 21 |
| Connecting Thread | BTC | BTC | BTC | BTC |
| Manifold | 2″1502 Union | 2″1502 Union | 2″1502 Union | 2″1502 Union |
| ID of main body(mm) | 113 | 160 | 225 | 320 |
| Length of top plug container(mm) | 270 | 270 | 290 | 375 |
| Lenght of bottom plug container(mm) | 270 | 270 | 290 | 375 |
| total length(mm) | 1686 | 1718 | 1993 | 2152 |

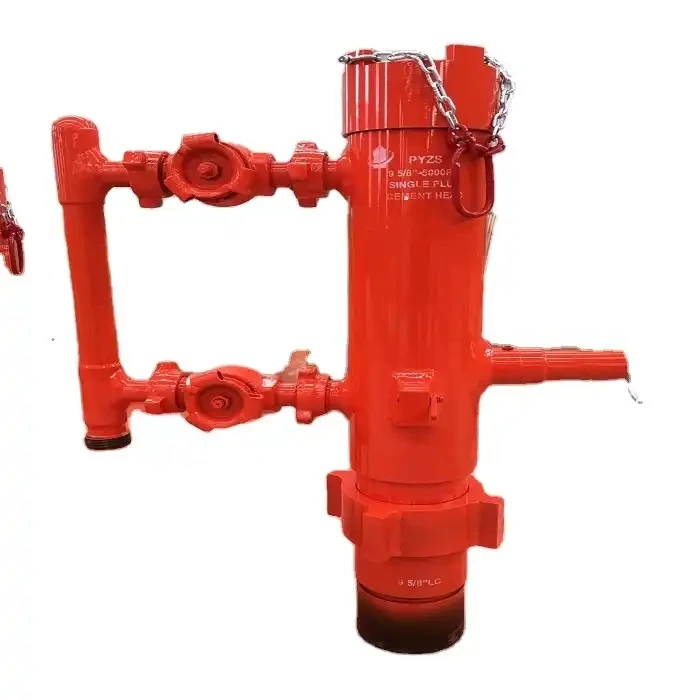

Oilfield Conventional Singal Plugs Cementing Head
Single plug cement head is a special tool for pumping slurry and releasing pumpdown plug. It can
couple with one plug, and make the drilling fluid fill into drill pipe in turn and quickly, simplify ce-
menting operation and prevent cement pollution.
Features:
1. It is manufactured utilizing API grade steels with connections for threads.
2. Indicator indicates plug releasing.
3. Reasonable Structure, main parts are made from AISI4135H alloy steel.
4.The connection thread of Top lift nipple and body is large pitch thread, which is convenient for quick installation.
| Specifications, mm | Φ139.7 | Φ177.8 | Φ193.7 | Φ244.5 | Φ273 | Φ339.7 |
| Overall-length,mm | 1950 | 2020 | 2020 | 2360 | 2360 | 2440 |
| Manifold | 2'' Union | |||||
| I.D. of plug container, mm | Φ125 | Φ160 | Φ175 | Φ225 | Φ250 | Φ320 |
| Length of plug container, mm | 400 | 450 | 450 | 550 | 550 | 600 |
| Working Pressure, Mpa | 35.5 | 35.5 | 35.5 | 35.5 | 35 | 35 |
