Diaphragm Capsule Pressure Gauge-Medical Type (Night Vision)

Diaphragm Capsule Pressure Gauge-Medical Type (Night Vision);

Size : ∅55 mm;

Displacement: 1.1-1 .4mm;

Accuracy Class(%): 2-1-2

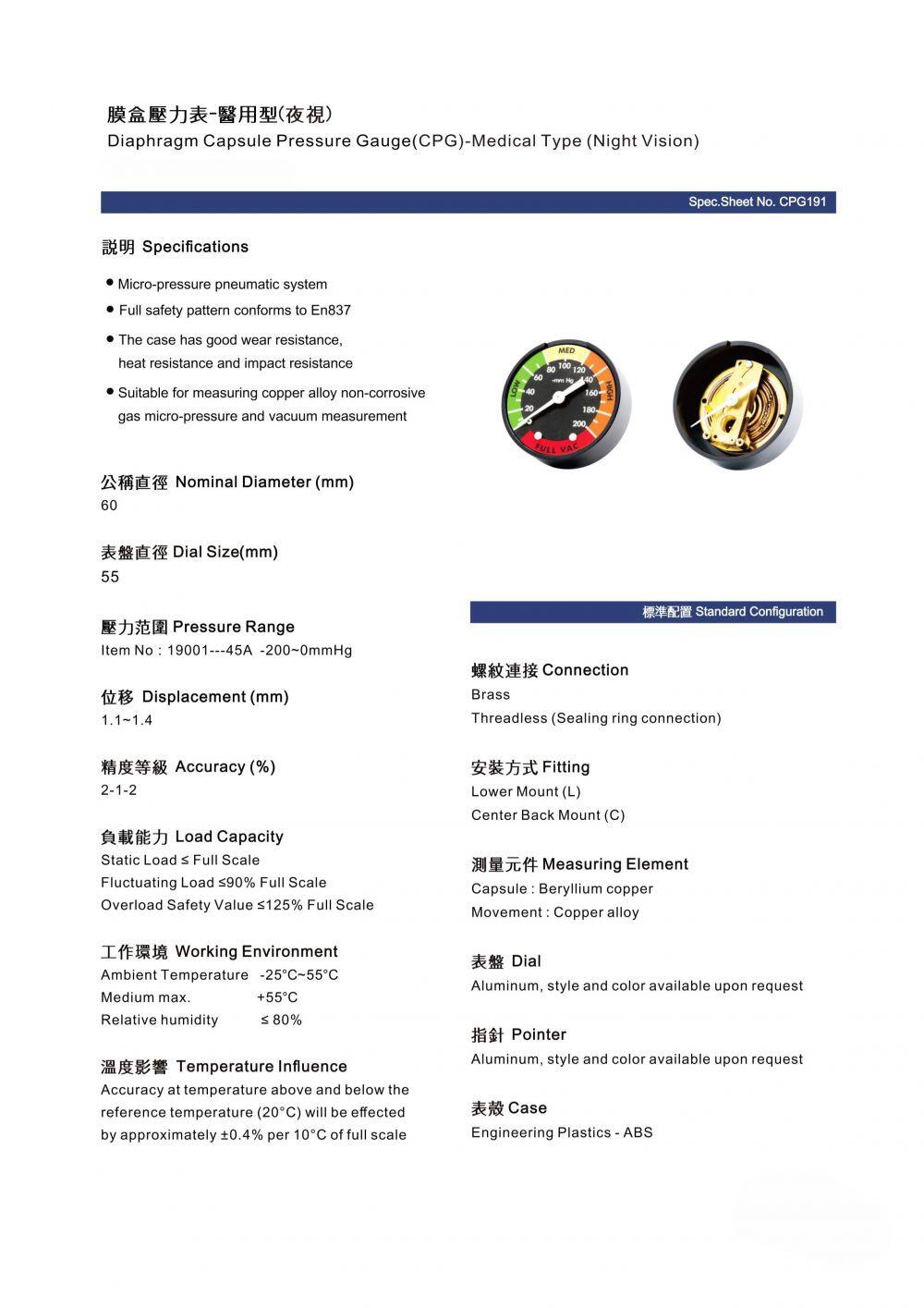

Diaphragm Capsule Pressure Gauge(CPG)-Medical Type (Night Vision)

 Model:YYEY-60

Specifications

Micro-pressure pneumatic system

Full safety pattern conforms to En837

The case has good wear resistance,

heat resistance and impact resistance

Suitable for measuring copper alloy non-corrosive

gas micro-pressure and vacuum measurement

 Nominal Diameter(mm):60

 Dial Size(mm):55

Pressure Range---45A -200~0mmHg

Displacement(mm):1.1~1.4

 Accuracy(%):2-1-2

 Standard Configuration

 Connection

Brass

Threadless (Sealing ring connection)

Fitting

Lower Mount (L)

Center Back Mount(C)

 Load Capacity

Static Load ≤ Full Scale

Fluctuating Load ≤90% Full Scale

Overload Safety Value ≤125% Full Scale

 Working Environment

AmbientTemperature -25°C~55°C

Medium max.

Relative humidity

+55°C

≤80%

 TemperatureInfluence

Accuracy at temperature above and below the

reference temperature(20°C) will be effected

by approximately +0.4% per 10'C of full scale

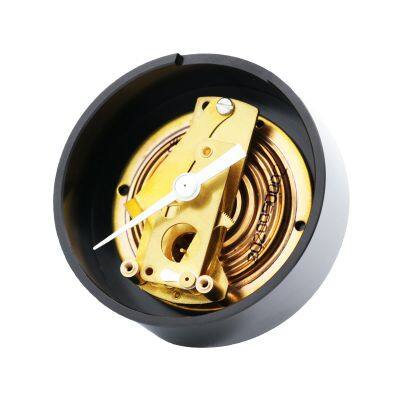

 Measuring Element

Capsule :Beryllium copper

Movement :Copper alloy

 Dial

Aluminum, style and color available upon request

 Pointer:Aluminum, style and color available upon request

Case:Engineering Plastics-ABS
