High Accuracy MCM2600 Multi Channel Power Meter Multi-circuit Energy Meter
- 50 Piece / Pieces per Month
- Shanghai
- T/T L/C Other
- 7 days
- GYDDCG DC Insulation Monitoring Relay for EV Charging Station DC System IT System
- DEM-4M3C Three Phase KWH Electric Meter RS485 Din Rail Energy Meter With LCD Display
- APM-96Q Industrial Electric Multifunction Panel Meter Power Meter Energy Meter With RS485
- Electrical Dual Channel DC KWH Power Meter DC Energy Meter for EV Charging Station
Product Details
Brand Name: | Blue Jay | Place of Origin: | China | Model Number: | MCM2600 |
Phase: | Other, single phase or three phase | Output Voltage: | 100VAC / 400VA | Operating Temperature: | 0 to 50°C |
Dimensions: | 228*120*65mm | Display Type: | Analog and Digital | Accuracy Class: | U / I / P / Q – 0.5% (Optional 0.2%) Frequency – 0.1% Active Energy – 1.0s class Reactive Energy – 2.0s class |
Measuring Energy Range: | actvie energy, reactive energy meter |
Product Description

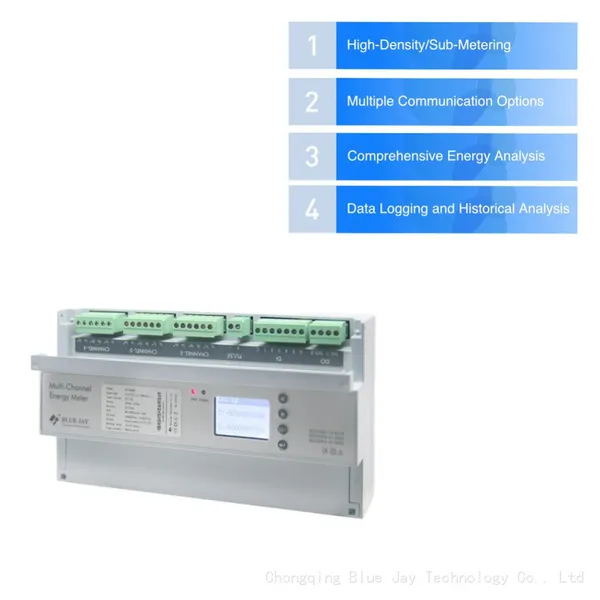

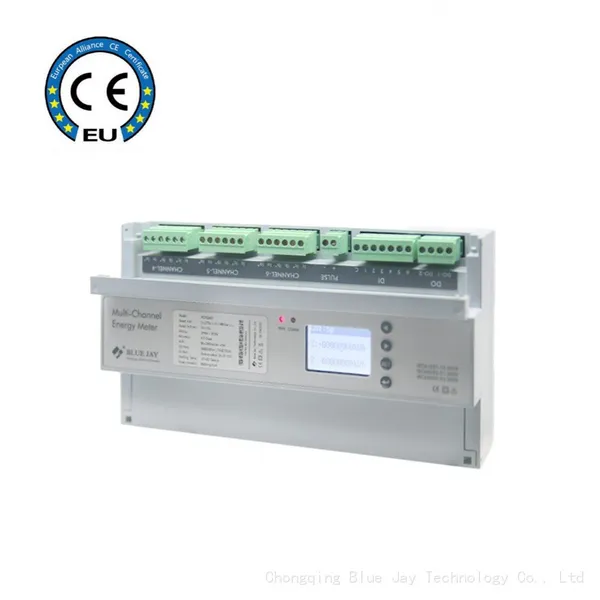

MCM2600 multi channel power meter is designed for Industrial or commercial branch circuit metering projects. The MCM2600 series branch circuit power meter includes the MCM2603 multi-channel power meter and the MCM2601 multi-channel power meter. The MCM2603, a three-phase meter, supports 6-channel metering and 3P4W/3P3W wiring. The MCM2601, a single-phase branch circuit power meter, supports 18-channel metering and 1P2W wiring. The MCM2600 series multi-channel power meter has the basic measuring function of Voltage, Current, Frequency, Total power factor, Active power, Reactive power, Apparent power, Active energy, Reactive energy, and 2-31th Individual harmonic. Besides, there are many optional functions such as Voltage harmonic distortion, current harmonic distortion, Time of Use, Voltage imbalance, current imbalance, max demand, voltage deviation, and SOE record so you can choose as your needs. The dimensions of the multi-channel power meter are a length of 228mm, a width of 65mm, and a height of 120mm.
Optional Profibus
Optional 6*Digital inputs
Optional 2*Digital outputs
Feature of MCM2600 Multi-channel Power Meter
35mm standard din-rail installation
13M width with a 1.6” dot matrix LCD screen
0.5 class high-precision performance
Multiple digital energy meter alternative
6 channels or 18 channels circuit metering
Measurement accuracy class 0.5
Current measuring: 1A or 5A
Power supply: 85-265VAC/DC
RS-485 Modbus/RTU Communication
Optional 6 channels Digital Input (DI) or 2 channels Digital Output (DO)
Optional advanced electrical parameter
Optional record and read multi- tariffs ratio, Up to 3 months (TOU record)
Optional max 99 lists SOE record
Improving reliability and reducing maintenance costs
Accept customization design
Specification
Power Supply | AC / DC 80-265V, 45-65Hz Burned <10VA |
Current Measurement | …/ 1A or …/5 A Burned <0.1W |
Voltage Measurement | Direct measurement 30~450V ac (L-L) PT secondary …/100Vac Burned <0.1W |
Frequency Measurement | 45~65Hz |
Accuracy | U / I / P / Q – 0.5% (Optional 0.2%) Frequency – 0.1% Active Energy – 1.0s class Reactive Energy – 2.0s class |
Communication Port | RS485 (2/3 wires half duplex) Modbus RTU mode |
Alarms Outputs (Optional) | 2 channel DO & 6 channel DI 230 VAC 5 A |
