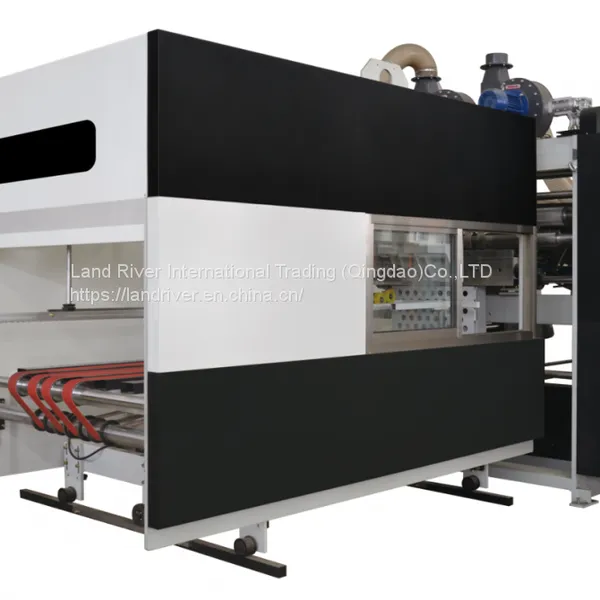

Auto Paper Box Making Machine Corrugated Carton Box Making Machine

FOB Price

US$ 180000 - 350000 / Set

1 Set(Min. Order)

Port Qingdao China
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Land River	Place of Origin	China
Model Number	SYKM Series	Certification	ISO9001
Type	Other, Printing slotting machine	After-sales Service Provided	Engineers available to service machinery overseas
Warranty	One Year	Weight	Customized
Dimension(LWH)	Customized	Condition	New
Voltage	Customized	Power(W)	Customized
Computerized	Yes

Product Description

__________________________________________________________________

§ Native Advantage §
__________________________________________________________________

High precision, High efficiency and High speed carton manufacturing era has come,so HOW to make it come true?Through the efforts of all workers,we succeeded in finding a new direction------High Efficient Automatic Carton Box Production Line.
This production line includes three units:Printing Slotting Die-cutting Unit, Folding Gluing Unit,Stacking Unit(optional).
It is a complete carton box production line,and this high efficient line also can absolutely make your carton manufacturing process more automated and intelligent, and have the advantages of high efficiency, economy, environmental protection, etc.

____________________________________________________________
§ The Line Features §
____________________________________________________________

1.This machine is designed and made to high quality and safety standard,with the advantages of high speed, auto control and quick order shift.
2.Computerized control,order setting in touch screen.
3.The Folding Section adopts belt transfer system assisted with vacuum suction,to make best transfering and folding quality
4.The Gluing Section adopts U.S.A VALCO high speed auto-sensor glue spray system
5.The correction device in the Countering Section can conquer the fish-tail,makes the carton even
6.The quantity of bundle come out from the Counter Ejector can be set in touch screen
7.All electronic and pneumatic components are with European standards

_______________________________________________________________

§Detailed Description§

_______________________________________________________________

№1 Printing Slotting Die-cutting Unit

@Description
1.Computer order storage and adjustment,faster order update and convenient operation.
2.Complete machine wallboard and other important pieces are all made by high precision process center and grinded by digi-controlled grinder.
3.All the transmission axle and rollers are made of high-quanlity steel with high-precision gynamic balance,plated with figid chrome and grinded surface.
4.The transmission gear adopts the high-quality steel,which is grinded after heat-treatment,after long use,it still maintains the high topping precision.
5.The main machine transmission part adopts the hand-free connection ring to eliminate the interval,suitable for long-term high speed printing.
6.The whole machine undergoes the spray lubrication and is equipped with engine oil automatic balance facilities.
7.It possesses the print,die-cutting,slotting memory function,which could return to Zero and Re-set automatically.
8.PCLINK control network,MCGS software,Siemens low voltage electric appliance and host frequency conversion control,30% electricity saving.
9.Double axle slotting to configure whole machine production management computer control system.
10.Customer can choose to use steel anilox roller or ceramic roller,the lines of the anilox roller ac so can be choosed according to the customer's use.

@Technical parameters

Model	410	480	530
Color Group	AS customized
Printing Paper	A,B,C,A/B,B/C,A/B/C
Production Speed	150pcs/min	150pcs/min	120pcs/min
Economy Speed	0-120pcs/min	0-120pcs/min	0-100pcs/min
Max. Paper Sizes	900~1200 ×2600mm	1200~1450 ×3000mm	1400~1600 ×2600mm
Min. Paper Sizes	350×680mm	380×680mm	380×680mm
Max. Printing Sizes	1200×2400mm	1450×2700mm	1600×2200mm
Max. Die-cutting Size	1200×2550mm	1400×2950mm	1600×2550mm
Standard Printing Plate Thickness	4~9mm	4~9mm	4~9mm
Slotting Width	2~12mm	2~12mm	2~12mm
Max. Slotting Depth	320mm	320mm	380mm
Min. Slotting Space	160×160×160×160mm 300×60×300×60mm	160×160×160×160mm 300×60×300×60mm	160×160×160×160mm 300×60×300×60mm
Printing roller Dia.	300mm	408mm	408mm

@Feeding Unit Configuration

1.Edge-leader feeding system:adopt smaller press edge-leader feeding system,friction between paperboard and the platform.Chinese advanced technology,with character of protecting original strength of paperboard, avioding damaging the corrugate and avoiding pressing to thin.It is good to transport smoothly after pressing line,with stable system,feeding quickly and precisely,suitable for all kinds of corrugated paperboard.
2.Vacuum absorption to assist feeding,the air volume and air press can be adjusted as the paperboard size.
3.Electrically adjust the left block and back box,with pneumatic patting equippment,to make the paperboard position more precisely.
4.10.4inch colorful touch screen control feeding part,printing part,slotting part,die cutting part ,can return zero once.

@Printing Unit Configuration

1.Printing roller and driving roller adopt good quality steel,computer dynamic balance,dliminate the off-center force,grinded face and chrome plated.
2.Printing roller adopt holding groove ,foot step electric control positive and negative rotate,install and uninstall the plate quickly and conveniently.
3.Whole sealed double scrape blade system,no dust,back ink quickly,scraping ink effect is very good.
4.Ink anilox roller:Ceramic anilox,laser carved,can choose 300-800line.
5.Printing phase and axial direction adjusting:phase adjusting adopts planet type gear configuration,PLC touch screen and electrical digital in 360 degree(can adjust both run and stop),converter motor drive,change rotating speed of roller as requirement,precision is 0.1mm,quick and convenient,printing roller moving axially adopt PLC touch screen and electrical digital to adjust,adjusting arrange is 10mm.
6.Through ink roller gap,pringting pressing roller,paper-leading roller gap adopt double wrm wheel box to adjust,gravimetric show digital,(0-10mm)convenient to adjust and with self-lock funtion.
7.Option:Drying system, to insure the printing quality.
