Help CenterDisc Turbine Impeller Arrow Blade Disc Turbine Impeller
Related Products
-
Spiral Belt Blender Helical Ribbon and Screw ImpellerUS$ 1000 - 6000MOQ: 1 Unit -
Anchor and Frame Type Impeller BlenderUS$ 1000 - 6000MOQ: 1 Set
-
Bubble Removing Oar Blender Mixer Agitator Antifoaming PaddleUS$ 1000 - 6000MOQ: 1 Unit
-
Flat Blade Integral Paddle Impeller Even and Direct AgitatorUS$ 1000 - 6000MOQ: 1 Unit
-
Opposite Pitched Subsidiary Detachable Blade Impeller Agitator FoldedUS$ 1000 - 6000MOQ: 1 Unit

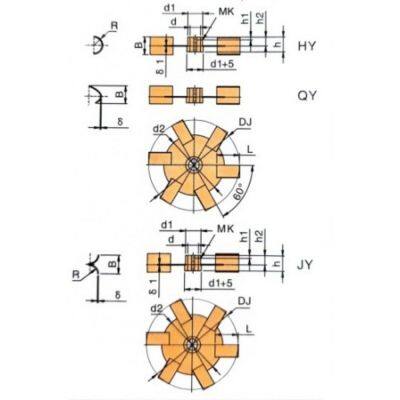

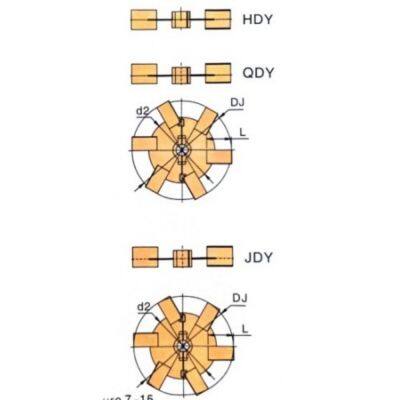

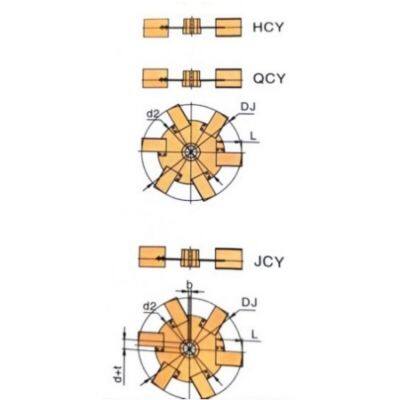

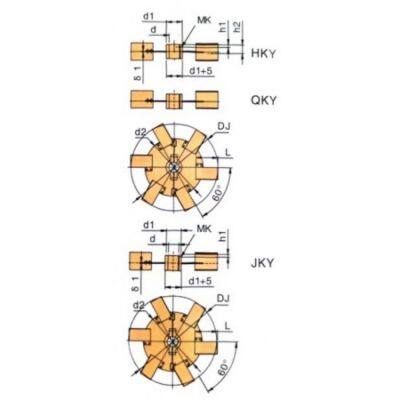

This blender series have the characteristics of universal round plate turbine blender.The difference is the change of the leave's section shape,as to increase the pump transferring capability of the blender,improve the performance of dispersion and media.The operation condition is the same with the universal round plate turbine blender.
Flow state:The flat blade impeller and curved blade impeller are radial flow.When there is baffle,the upper and down circulating flows can be formed from the blade boundary.The opposite pitched subsidiary blade impeller has an axial shunt.The capacity mixing of liquid above and below the disc is worse than the open turbine impeller.
Hengfengtai has been committed to the design, development and manufacture of mechanical stirring equipment for more than 30 years. All plans and design data are stored in the database, combined with self-developed professional design software, a very efficient mixing design expert and computer-aided design system are formed. When designing the scheme, according to the information, requirements and relevant characteristic parameters provided by the user, the same or similar implementation scheme can be quickly searched, which provides a design reference for the scheme design and type selection of our professional stirring design engineers, and through experiments or Computational fluid dynamics simulation (CFD) for auxiliary design, verification, optimization and other means makes our design scheme very professional and rigorous, so it has strong applicability and reliability. At the same time, our company provides strong technical support for project research and development and design through postdoctoral workstations, as well as industry-university-research cooperation with Zhejiang University, Zhejiang University of Technology, Wenzhou University and other institutions of higher learning.
Hengfengtai has more than 6,000 customers of mechanical mixing equipment, and has successfully provided services for Sinopec, Wanhua Chemical, Ecosys, Aluminum Corporation of China, China Guodian, Cargill China, Shenhua Ning Coal, Zhejiang Huayou, Hubei Hongrun, Shanshan Energy , Zhongwei, Jiana Energy, Ganfeng Lithium, Yihai Kerry, Haitian Group, Delicious Fresh, Yipin Biology, Livzon Pharmaceutical, Xinfa Pharmaceutical, CSPC Group, Shandong Lukang, Beifang Pharmaceutical, Jade Star Bio, Tianli Pharmaceutical, Zijin Mining, Western Mining, Longjing Environmental Protection and other well-known domestic enterprises provide diversified and personalized technical solutions.
The company's mechanical mixing equipment includes top entry, side entry, bottom entry, horizontal, combined and other mixing products, and can also be customized according to the special needs of customers.
