Crossover
US$ 17000 - 200000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
fenlgiang petroleum
Place of Origin:
China
Model Number:
Kelly drill pipe
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin
Delivery Detail:
120 days
Related Products
Brand Name
fenlgiang petroleum
Place of Origin
China
Model Number
Kelly drill pipe
After-sales Service Provided
Engineers available to service machinery overseas
Condition
New

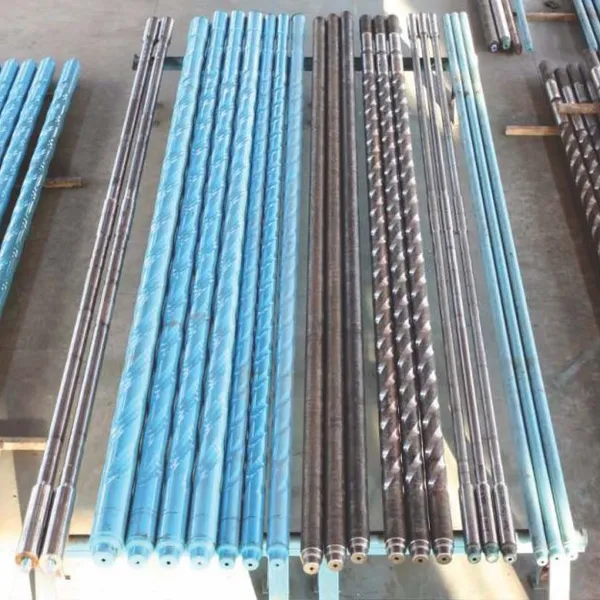

Drill Collar is the basic component in the BHA
which provides weight on the bit for drilling and
keeps the drill string in tension.
Fengliang Drill Collar is manufactured from
AISI 4145H modified quenched and tempered
steel and is heat treated along its entire
length for uniform toughness and durability.
Strict metallurgical tests are performed per
specifications to ensure that the heat treatment
produces consistent and maximum hardness
through the depth of the bar.
Features and Benefits
● A hardness range of 285 to 341 BH N
and a Charpy impact value of 40 lbs/ft are
guaranteed for evenly distributed 16 points in
any cross sections at room temperature;
Specifications - Drill Collar
● Connections are phosphate coated after
machining to protect the threads from
corrosive elements and to prevent galling
upon initial make-up;
● Thread roots are cold rolled on API and H-90
connections;
● Pressed steel thread Protector-p.html target='_blank'>Protectors are supplied
for all drill collar that are equipped with
standard connections
When ordering please specify:
● Drill collar OD and ID;
● Overall length;
● Connections required (size and type);
● Special features desired, for example:
Slick or Spiral;
Stress Relief Features;
Slip and/or Elevator Recess;
Hardbanding;
Heavy Weight Drill Pipe (HWDP) is an
intermediate weight drill stem component
which is used in conjunction with the drill
pipes and dril l collars. TIAnHE HWDPis
available in standard, spiral and non-
magnetic designs. In some applications,
heavy-weight drill pipes also can be used
instead of the drill collars.
Fengliang HWDP is made from one-piece AISI
4145H modified quenched and tempered
steel. It is designed for tough drilling
environment in vertical and directional wells.
Fengliang HWDP is a transition member
between drill collar and drill pipe. For
directional holes HWDP provides weight-
on-bit and additional stiffness to prevent
buckling.
Specifications - Heavy Weight Drill Pipe
Features and Benefits
● A center upset or wear pad to increase
tube life, reduce hole drag and differential
sticking problems;
● Connections are completed (phosphate
coated) to protect them from the elements
after machining and to help prevent galling
upon initial make-up;
● Thread roots are cold rolled on API
and H-90 connections. And pressed steel
thread Protector-p.html target='_blank'>Protectors are supplied for standard
connections;
● Hardbanding and internal coating can be
provided
