Home > Instruments & Meters > Meter for Liquid & Gas > Pressure Gauge > Single Diaphragm Differential Pressure Gauge With Balance Valve

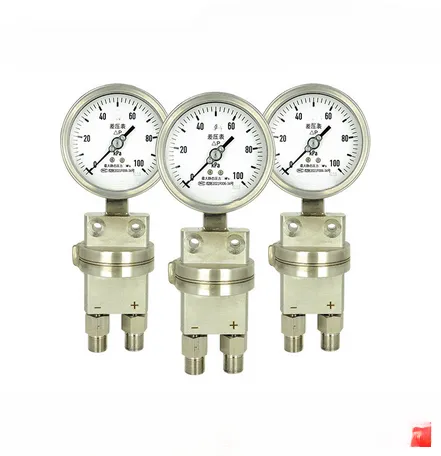

Single Diaphragm Differential Pressure Gauge With Balance Valve
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2023
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Double Needle Double Tube Differential Pressure GaugeNegotiableMOQ: 1 Piece -
4 Inch All Stainless Steel Bottom Connection Safety Pattern Pressure Guages With Blow-out BackNegotiableMOQ: 1 Piece
-
Flange Type Pressure Gauge DN25 DN50 1.6MPa，NegotiableMOQ: 1 Piece
-
Diaphragm Thread 14*1.5 Stainless Steel 316L Shock, Corrosion and High Temperature Diaphragm Pressure GaugeNegotiableMOQ: 1 Piece
-
All Stainless Steel (seismic Resistant) Electric Contact Pressure GaugeNegotiableMOQ: 1 Piece
Single diaphragm differential pressure gauge 100 diameter thread connection differential micro negative pressure stainless steel diaphragm pressure gauge
Single diaphragm differential pressure gauge with Balance valve
Product model: Stainless steel diaphragm pressure gauge
Accuracy level :1.6, 2.5 can be customized
Measuring range :0~2kPa..... 0.1Mpa can be customized
Ambient temperature :-40 to 70°C
Medium temperature :-40~100°C
Process connection :M20*1.5, 1/2"NPT, G1/2" can be customized
Liquid material :316SS can be customized
Case material :304SS, 316L optional
Pressure sensing element: diaphragm + bellows
Protection level :IP54, IP65, IP66
