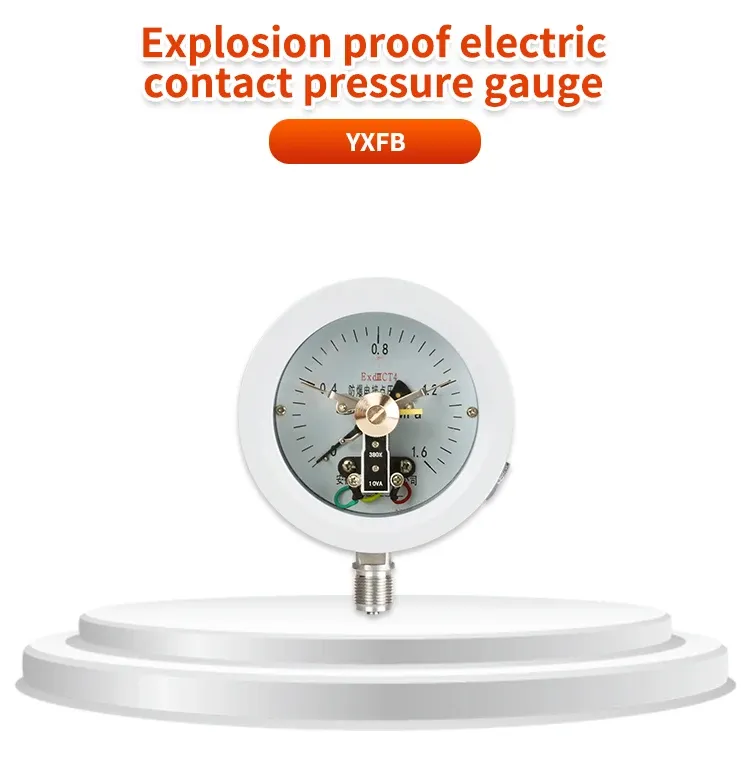

Help CenterStainless Steel Pressure Gauge With Shock-proof Diaphragm Gauge With Explosion-proof Electric Contact
Related Products
-
High Quality 4 " Manometer， Corrosion Resistant Stainless Steel Diaphragm Seal ManometerNegotiableMOQ: 1 Piece -
Stainless Steel Pressure Gauge With 150mm Diameter China FactoryNegotiableMOQ: 1 Piece
-
Electric Contact Diaphragm Pressure Gauge Customized Support OEM Factory in ChinaNegotiableMOQ: 1 Piece
-
Pressure Gauge Steel Manometer High-Precision 2.5% ,1.6% Glycerin Filled Pressure Gauge With DiaphragmNegotiableMOQ: 12 Pieces
-
NPT1/2 100mm Electric Contact Pressure Gauge Axial Back Connection Type With Flange Edge Pressure GaugesNegotiableMOQ: 1 Piece
Accuracy level: 1.6, 2.5
Nominal diameter: 100mm, 150mm
Measuring range:-0.1~0~0.1...60MPa can be customized
Ambient temperature:-40~70°C
Medium temperature:-40~100°C
Wetted material: 304SS
Case material: cast aluminum spray-coated
Overvoltage capability: full scale x130%
Pressure sensing element: 10MPa spiral tube
Process connection: M20x1.5, 1/2"NPT, G1/2'
Explosion-proof level: Exd I BT6, Exd I CT4
Magnetically assisted YX-100/150 hydraulic gas explosion-proof electric contact pressure gauge
Magnetically assisted YX-100/150 hydraulic gas explosion-proof electric contact pressure gauge
100B/150B flameproof ExdIICT6 grade gas liquid vacuum explosion-proof electric contact pressure gauge
Stainless steel pressure gauge with shock-proof diaphragm gauge with explosion-proof electric contact
100B/150B liquid oil gas vacuum negative pressure gauge switch quantity control explosion-proof electric contact pressure gauge
Accuracy level：1.6 level, 2.5 level
Measuring range：-0.1~0~0... 60MPa customizable

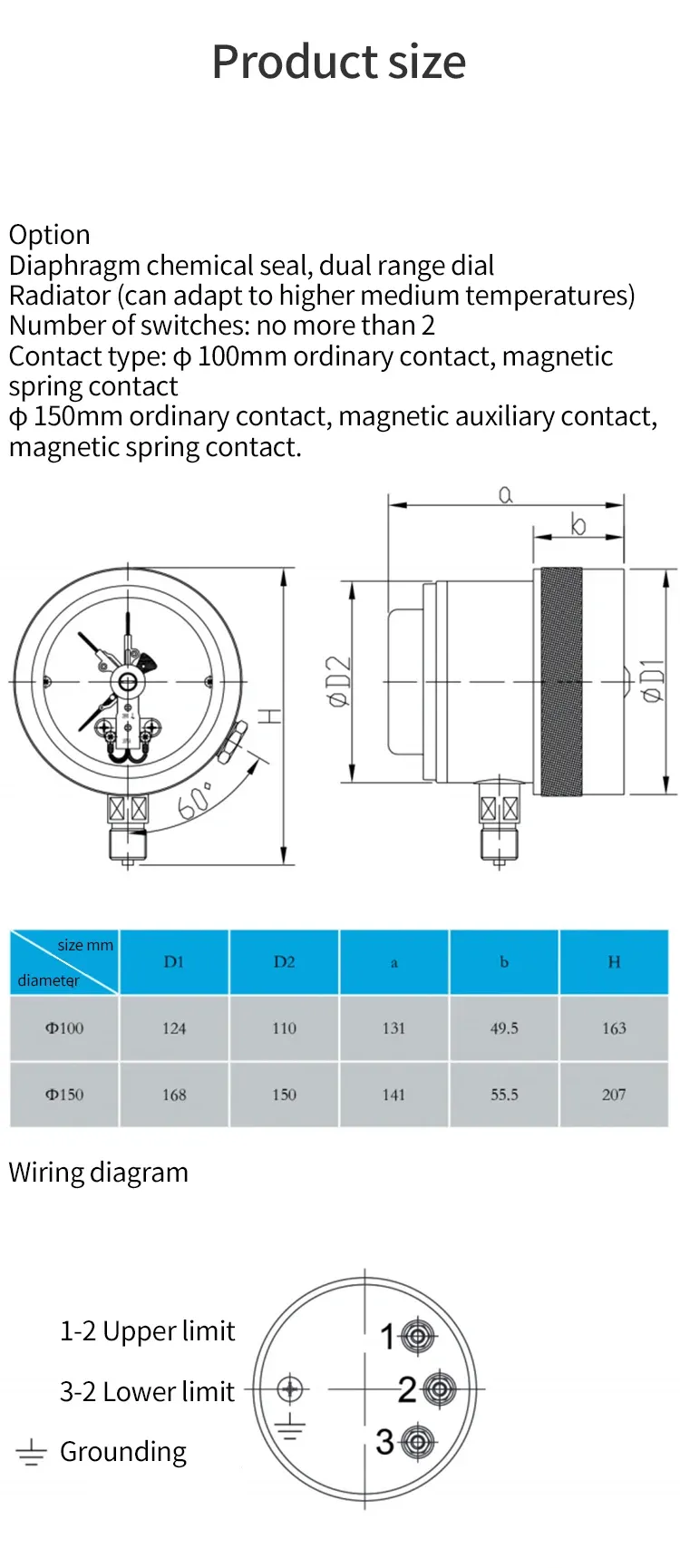

Option:Diaphragm chemical seal, dual range dial
Radiator (can adapt to higher medium temperatures)
Number of switches: no more than 2
Contact type: Ф 100mm ordinary contact,magneticspring contactф 150mm ordinary contact, magnetic auxiliary contact.magnetic spring contact.
