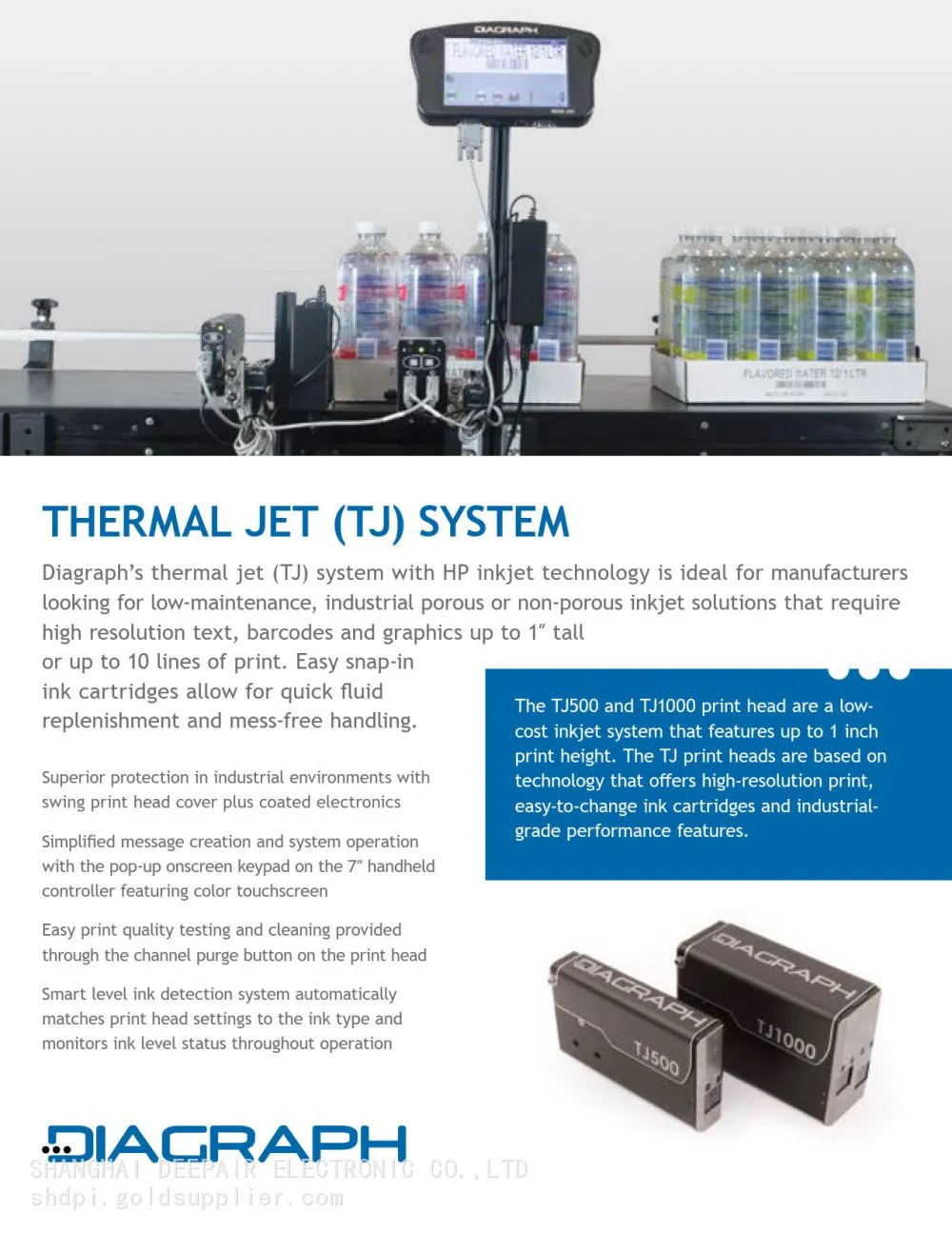

The Diagraph HP Thermal Jet line of industrial inkjet printers features the most robust and durable print head with HP inkjet technology and is capable of printing high-resolution characters up to 1” tall.

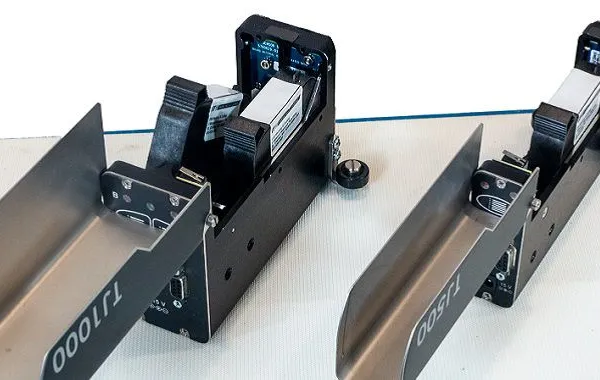

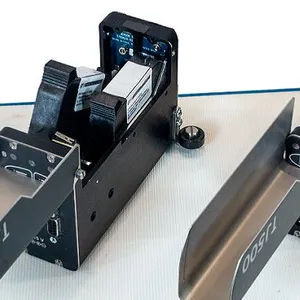

The TJ500 printhead is a low-cost HP45A cartridge inkjet system that features up to 1/2 inch print height. The TJ500 is based on the thermal industrial inkjet printers technology offering high-resolution print, easy-to-change ink cartridges and industrial-grade performance features.
The TJ1000 printhead is a low-cost HP45A cartridge inkjet system that features up to 1 inch print height. The TJ1000 is based on the thermal industrial inkjet printers technology offering high-resolution print, easy-to-change ink cartridges and industrial-grade performance features.
IJ4000 HH features a 7” high resolution touchscreen display and Unicode language capabilities for universal ease-of-use. It pairs seamlessly with Diagraph’s TJ print heads, providing operators increased versatility with a smaller controller footprint.

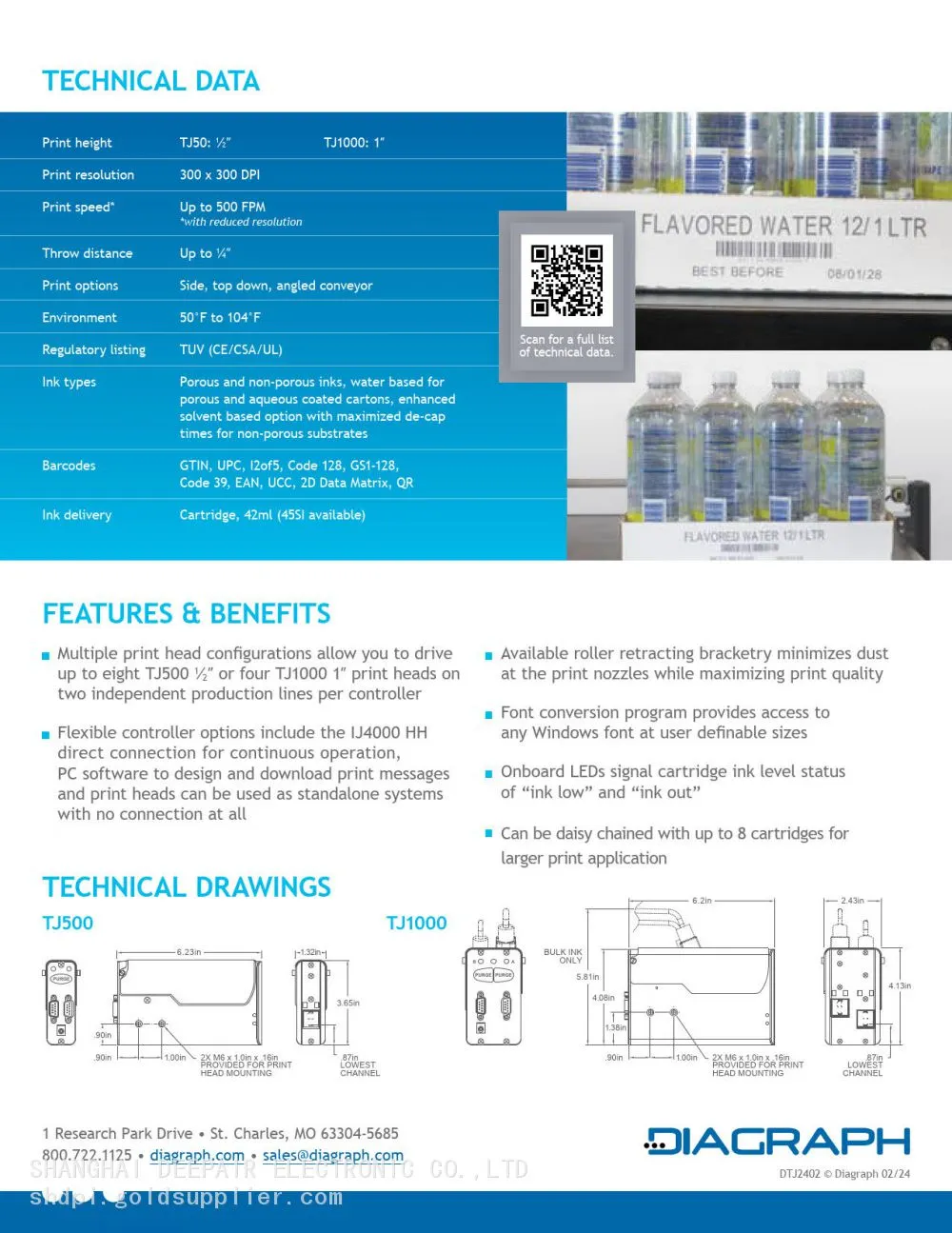

| Thermal Jet | |
|---|---|
| Controller | IJ4000 handheld |
| Touchscreen display | 7" color |
| Operator interface | Graphical user interface, WYSIWYG |
| QWERTY keypad | Touchscreen pop-up, Unicode compatible |
| Enclosure | Industrial thermoplastic, drop resistant |
| Memory | 512 MB |
| Connectivity | 1-Ethernet, 1-USB, 2-RS232 |
| IO interface | No |
| Auto codes | Time, date, use by, Julian, count, user defined, shifts, variable input |
| Barcodes | UPC, GTIN, I2of5, 128, Code 39, EAN, UCC, 2D Data Matrix, QR |
| Logos | BMP, JPEG, TIF, PNG |
| Fonts | TrueType available |
| PC Interface | |
| Windows PC GUI software | Graphical user interface, WYSIWYG editor |
| Networking software w/ database | No |
| Direct interface | Protocol provided |
| Print Heads | |
| Technology | Thermal et with HP inkjet technology |
| Print height | 1/2" & 1" print heads |
| Print resolution | 300 x 300 DPI |
| Standard print speeds | Up to 200 FPM |
| Print speeds w/ reduced resolution | Up to 500 FPM |
| Print options | Side, top down |
| Print distance | Up to 1/4" |
| Ink Systems | |

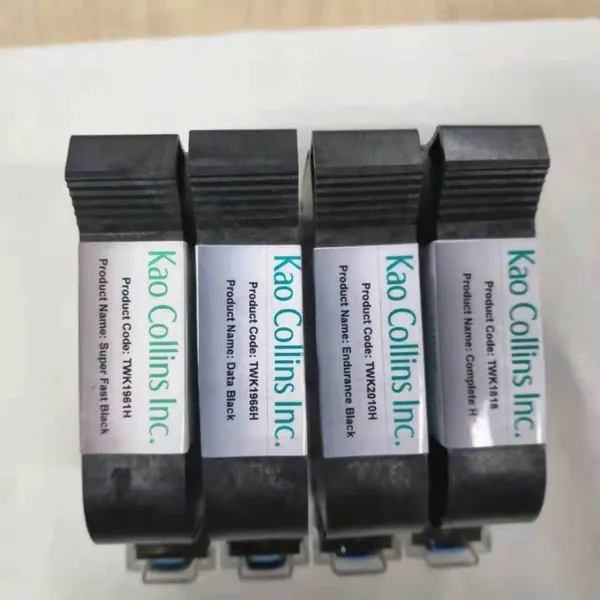

| Ink delivery | Cartridge |
| Ink supplies | 42 ml |
| Ink types | Porous & non-porous inks Water based for porous & aqueous coated cartons, solvent based for non- porous stock |
| System | |
| Regulatory listings | TUV (CE/CSA/UL) |
| Operating environment | 50°F to 104°F |
