Home > Products > sucker rod > Oil Well API 11D1 RTTS Packer for Testing/water Injection

Oil Well API 11D1 RTTS Packer for Testing/water Injection

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Port Tianjin or Qingdao or as client's requirement
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	China	Model Number	5-1/2“-9-5/8“
Material	Other, Alloy	Certification	API
Use	Well Drilling	Processing Type	Forging
Machine Type	Drilling Tool

Product Description

Products Description

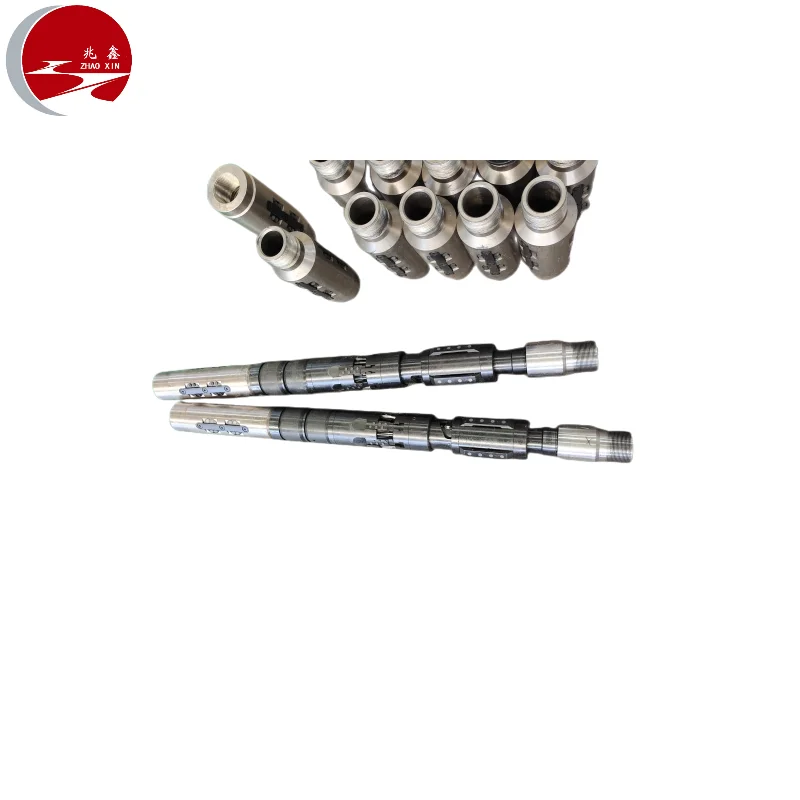

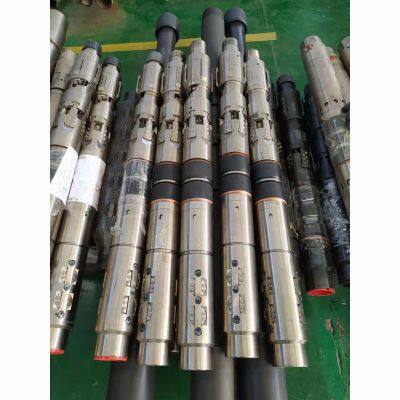

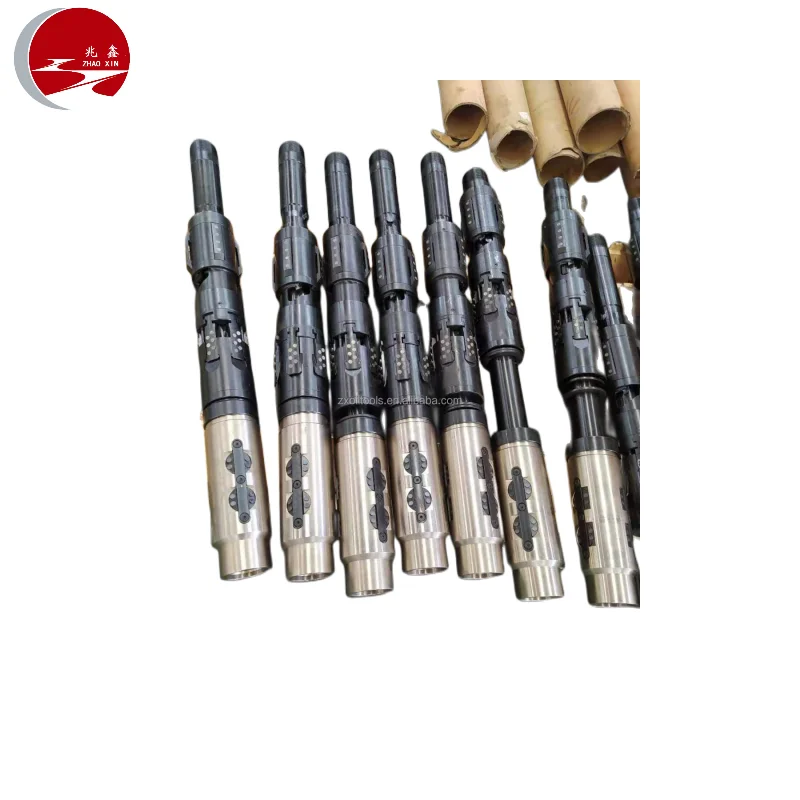

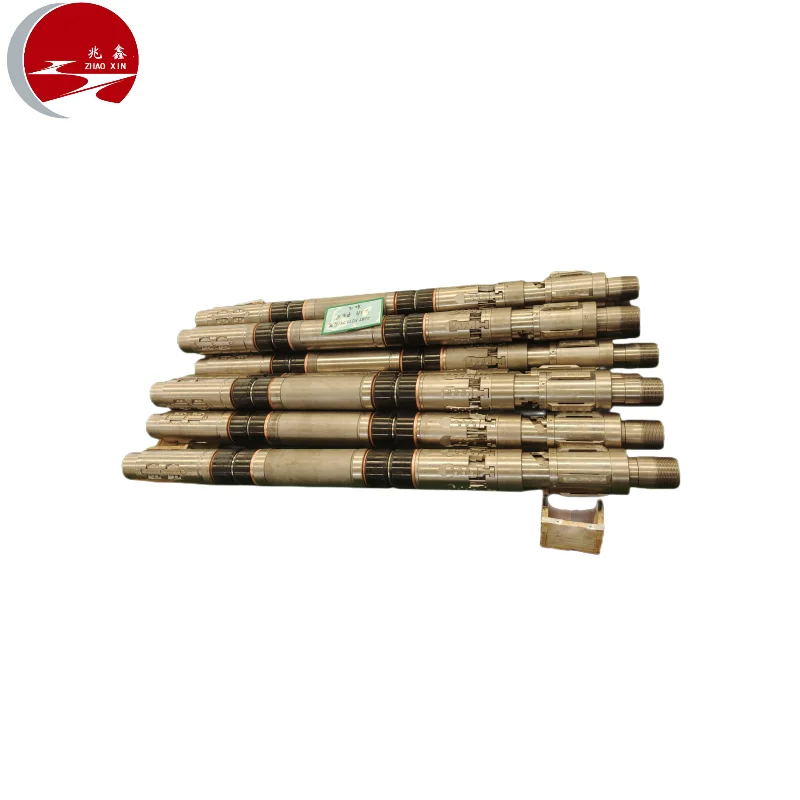

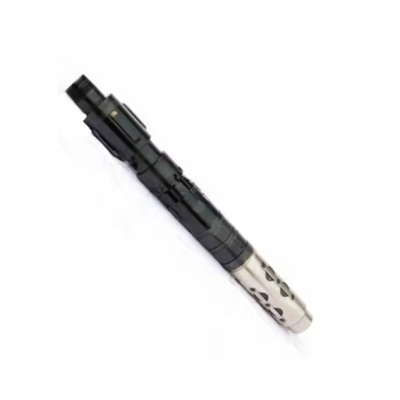

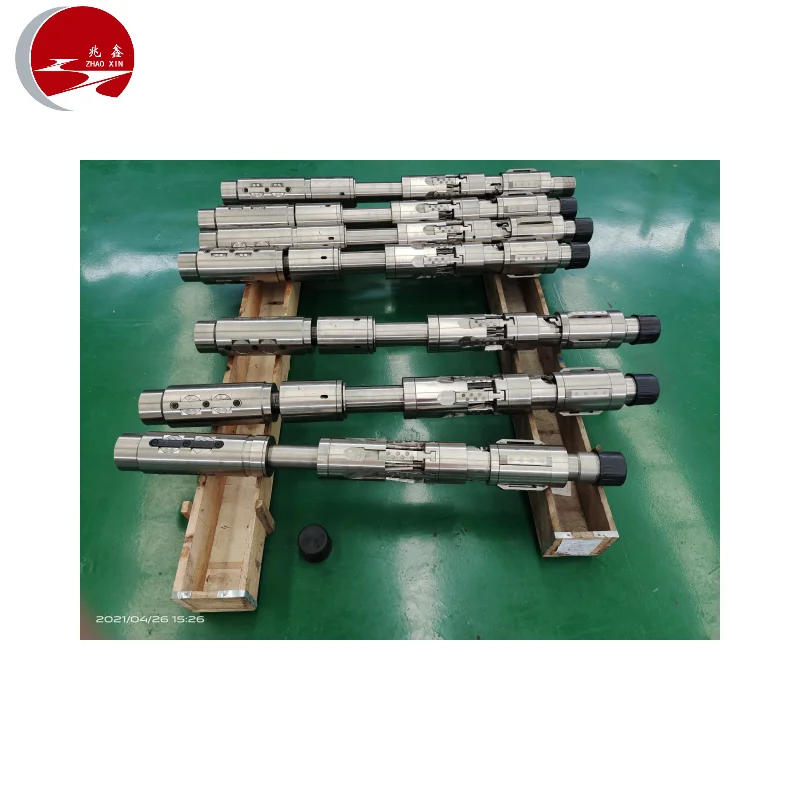

 The RTTS packer is a full-opening, hook wall packer used for testing, treating, and squeeze cementing operations. In most cases,he tool runs with a circulating valve assembly.
The packer body includes a J-slot mechanism, mechanical slips, packer elements,
and hydraulic slips. Large, heavy-duty slips in the hydraulic hold down mechanism
help prevent the tool from being pumped up the hole. Automatic J-slot sleeves are standard
equipment on all packer bodies.

Features

1. Full-opening design of the packer mandrel bore allows large volumes of fluid to pump through the tool. 2. Can be set and relocated as many times as necessary with simple tubing manipulation. 3. Tungsten carbide slips provide greater holding ability and improved wear resistance in high-strength casing. 4. Optional integral circulating valve locks into open or closed position during squeezing or treating operations and opens easily to allow circulation above the packer

Specification

Specifications	5″	5 1/2″	7″	9 5/8″
OD(mm)	103	115.6	151.1	207.8
ID(mm)	45	48	61	101
Length(mm)	1226	1232	1380	2088
Working pressure(Mpa)	70	70P	70	70
Working pressure(℃)	-29℃~+177℃	-29℃~+177℃	-29℃~+177℃	-29℃~+177℃

Company Information

Zhaoxin Industry & Trade Company, Ltd. of Dongying City is located in the hinterland of beautiful Yellow River Delta --- Dongying City normally called “ Petroleum City”. The company, which conducts scientific research, development, manufacture, sale and after sale service, is one enterprise for oilfield tool and equipment manufacture. At Shengli Industry Area, the company was established in 1999. It has owned more than 3000 square meters of workshops which manufacture different oilfield down hole tools and accessories such as fracture packer series, sand blast, fracture hydraulic anchor. The products of company have been widely applied in oilfields in China and entered markets abroad. The company conducts management mode of combination between regulation and humanity, develops perfect management system and inspiring system, has achieved ISO9000 international quality system certification and has got first order market entry qualification. The company has owned practical, specialized, experienced and powerful research and development team, applied and got more than 40 national patents awarded by National Intellectual Property Bureau, widened the markets in Neimeng, Xinjiang, and Liaohe,etc, and established approved reputation. For many years, the company has followed the management idea of existence by means of quality and development by means of innovation, maintained the service aim of quality first and reputation first, faced competition with the new products, explored development with the new idea and widened market with the new technology. In the future of more severe competition market, Zhaoxin Company , with perfect attitude, product and service, is going to make further development together with customers at home and abroad .

Customer Photo

Our Services

Certifications

For more information, you can contact me :

Contact person : Alisa Ma

Mob : +86-13706368719

Looking forward to cooperating with you!
