Wood frame high-efficiency filter pharmaceutical factory high-efficiency filter screen

standard packaging

The filter material of our company's partition high-efficiency filter is separated and folded into shape using specialized automatic equipment to create wrinkles on aluminum foil. The company's management of the production process and strict side testing ensure the quality of the product. Our company has partition high-efficiency filters that can provide multiple materials and sizes of frames. Standard resistance type (S) and low resistance type (W), low resistance products are suitable for places with high air volume or low resistance requirements. The standard thickness of SPAN partition filters is divided into 150, 220, and 290 mm. As the 220mm thickness is a commonly used specification in China, only the standard pressure loss type is available. Our company has partition high-efficiency filters, which are more suitable for places with high air volume requirements because the filter material area of high air volume products is larger than that of standard air volume products. For the design of the new system, the high air volume type can reduce the number of products used and installation space. For systems that have already been used, replacing standard products with products with high air volume can reduce system resistance. Our company has advantages such as efficient filters with partitions to achieve energy conservation, extended product replacement cycles, and reduced disposal costs.

Product features:

The high-efficiency filter screen with partition adopts internationally renowned brand filter media, ensuring that the high efficiency level can reach 99 under the rated air volume 99% at 0.3um;

Maximum temperature: 80 ℃, maximum humidity: 100% RH (non fogging state);

We can provide wooden frames, galvanized frames, aluminum frames, and stainless steel frames;

The partition material can provide aluminum partitions and paper partitions;

Various non-standard sizes can be provided.

Advantages of low resistance type baffle filters compared to standard resistance type baffle products:

Under the same resistance, a larger air volume can be achieved with a wind speed of 2 At a speed of 5m/s, the resistance only slightly increases when used under the same conditions, saving energy consumption and extending the service life compared to standard products.

Places where high-efficiency filters with partitions are suitable:

Mainly used in aviation, aerospace, electronics, semiconductors, chips, biopharmaceutical industries, hospitals, food industries and other occasions that require high cleanliness;

Used for terminal filtration in air conditioning and ventilation systems.

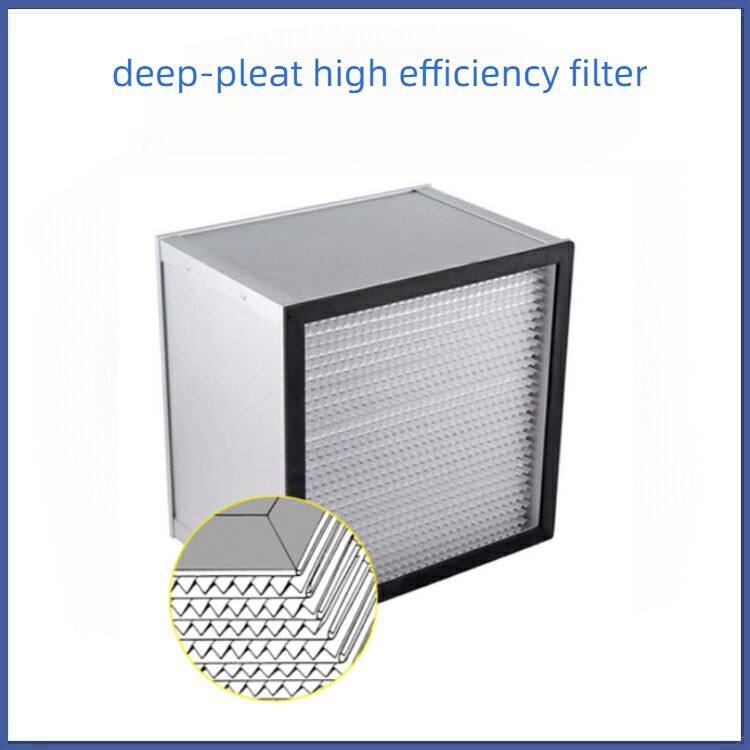

Product Display：
