HEPA grade filter screen, H13 high-efficiency air filter

The MPT non partition filter (mesh) produced by our company uses hot melt adhesive instead of aluminum foil with partition filters to separate the filter material. Due to the absence of partitions, the 50mm thick non partition filter can achieve the performance of a 150mm thick partition filter. The HEPA with an MPT 90mm thick outer frame can achieve an air volume of 1.3 times that of the SPAN 150mm thick standard resistance type with partitions and twice that of the SPAN 150mm thick standard resistance type with the same filtration area and filtration efficiency. MPT can meet the demanding demands of various space, weight, and energy consumption for air purification today. MPT not only offers products with standard filter material pleats, but also offers four types of filter material pleats ranging from 40mm to 75mm, which are suitable for customers to meet their diverse product needs and improve product performance. MPT's four pleated products can achieve HEPA and ULPA efficiency. Four product combinations with high pleats can provide customers with more choices in air volume, resistance, efficiency, and size.

Features:

The high-efficiency filter without partition has a unique seamless sealing technology, which provides better sealing effect, longer lasting, and less prone to leakage;

Filter material with double-sided metal protective mesh.

Can provide various thicknesses such as 50mm, 70mm, 90mm, etc.

◎ Laser scanning count per unit MPPS efficiency: 95%, 99.999995% (EN1822).

◎ Filtering levels: H11, H14, U15, U16 (EN1822).

Non partition high-efficiency filters are widely used in industries such as optical electronics, LCD manufacturing, biopharmaceuticals, precision instruments, film and fiber equipment, PCB printing, and other dust-free purification workshops for air conditioning end supply.

Purchase of high-efficiency filter screen without partition:

Single or double-sided metal protection, mesh single or double-sided airtight gasket

The highest humidity can reach 100% RH, and the highest temperature can reach 85 ℃

Usage:

The high-efficiency filter screen without partition is widely used in the air conditioning end filtration of dust-free purification workshops in industries such as optical electronics, LCD manufacturing, biomedicine, precision instruments, film and fiber equipment, PCB printing, etc.

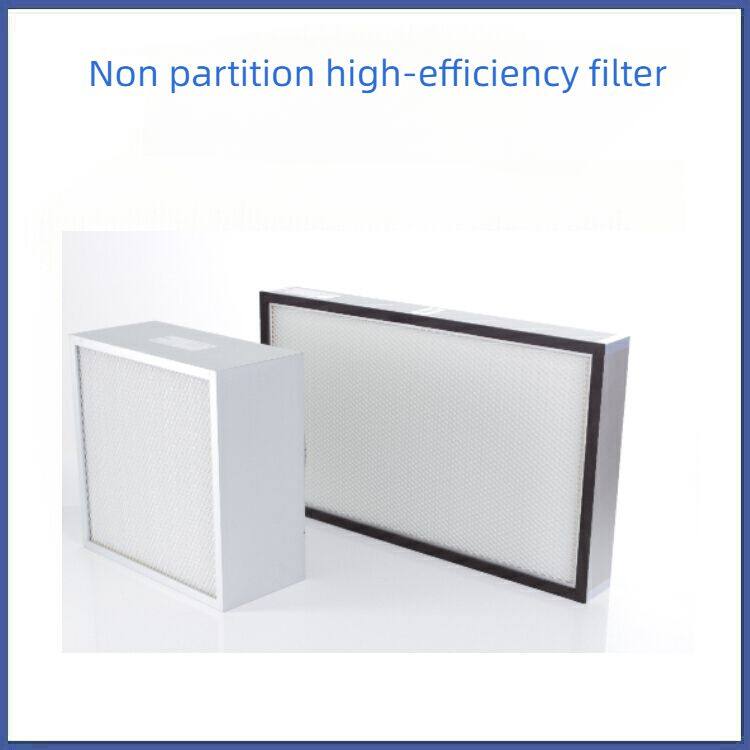

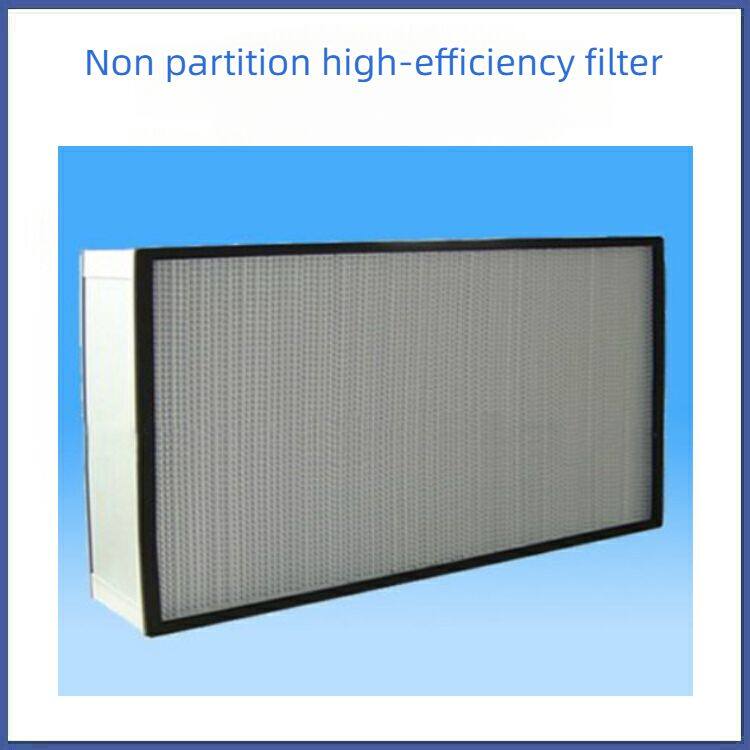

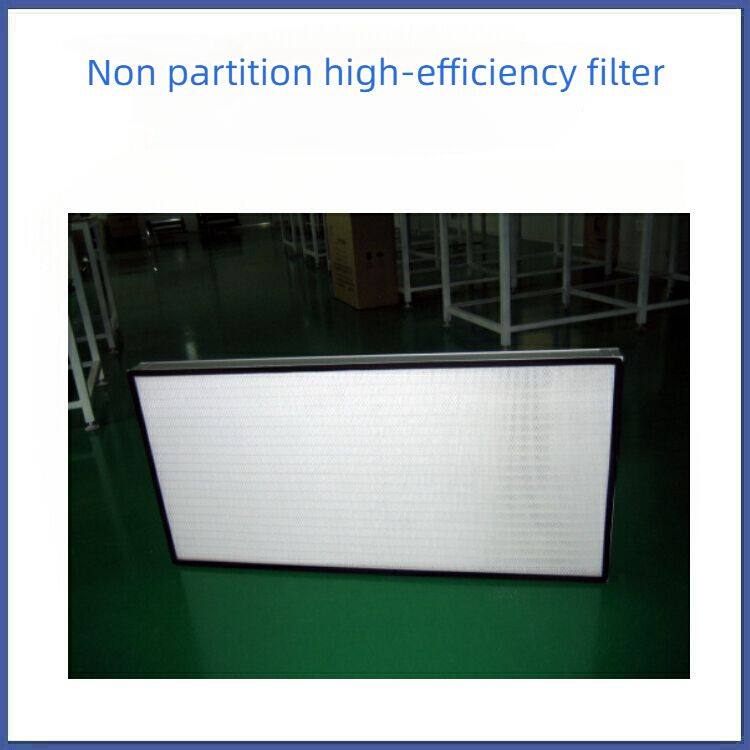

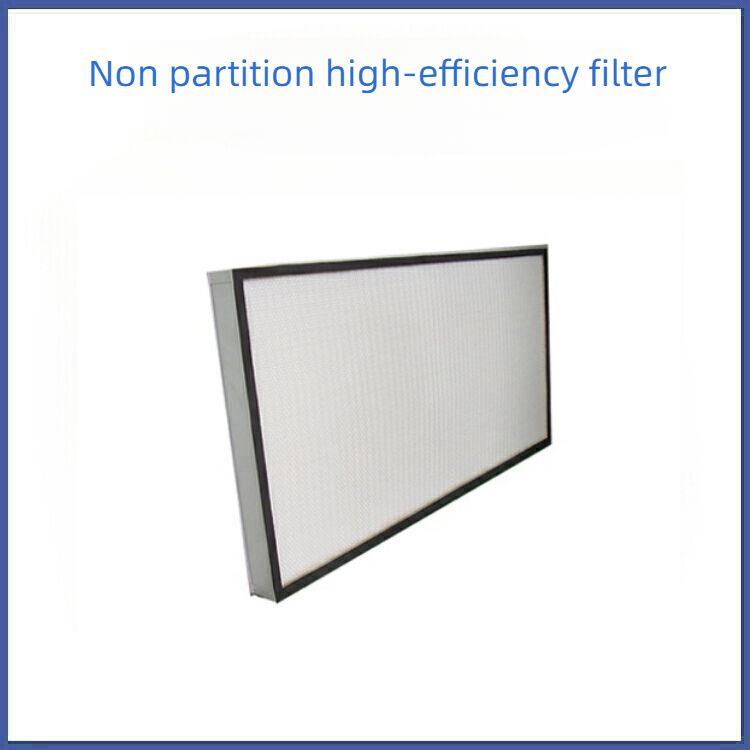

Product Display：
