Oilfield Tubing Anchor Catcher for Sucker Rod Pump

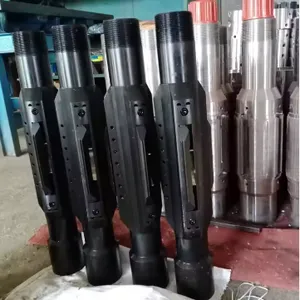

Oilfield Tubing Anchor Catcher for Sucker Rod Pump photo-1
Oilfield Tubing Anchor Catcher for Sucker Rod Pump photo-2
Oilfield Tubing Anchor Catcher for Sucker Rod Pump photo-3

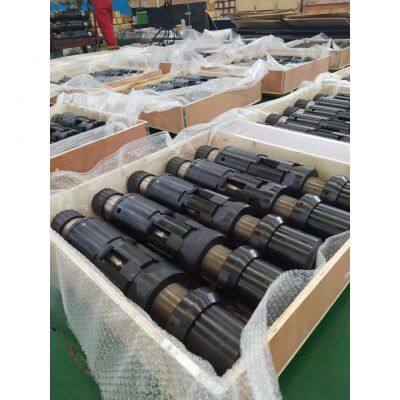

Oilfield Tubing Anchor Catcher for Sucker Rod Pump photo-4

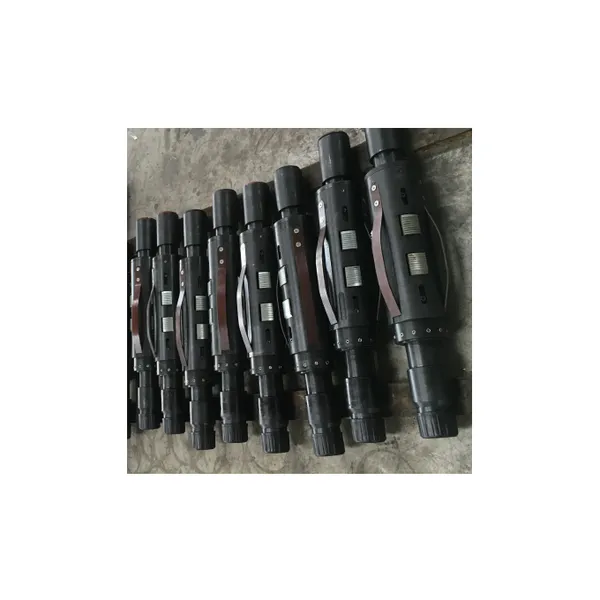

Oilfield Tubing Anchor Catcher for Sucker Rod Pump photo-5
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Model Number:
5-1/2“-9-5/8“
Material:
Other, Alloy
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin or Qingdao or as client's requirement
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin China
Model Number 5-1/2“-9-5/8“
Material Other, Alloy
Certification API
Use Well Drilling
Processing Type Forging
Machine Type Drilling Tool
Overview

1.Breif Intrduction



Our tubing anchor anchor the tubing string in a rod pumping well .The tubing anchor effectively reduce rod, tubing, and casing wear. This cuts operating costs. Elimination of breathing and buckling of the tubing string also increases production by lengthening the effective stroke of the pump, which increases volumetric efficiency.  Based on proven technology, the Anchor uses hydraulically activated hold-down slips to provide an anchoring point for the tieback or workstring during stimulation operations. These tubing anchors are the most economical and effective insurance you can buy against premature repairs and downtime.



2.Technical and Specification



Model

Length

(mm)

Max OD

(mm)

Min ID (mm)

Pressure(MPa)

Max OD when teeth open

Setting Pressure

(MPa)

Connecting Thread

Casing ID to be used

51/2"

580

115

62

25

128

8-12

2-7/8 TBG

121-124

7"

660

150

76

25

168

8-12

3 1/2 TBG

155-166

9 5/8"

970

208

76

25

245

8-12

3 1/2 TBG

218-240

9 5/8"

970

208

98

25

245

8-12

4 1/2 TBG

218-240





3.Services



our company have own services team can prodvide  field services .



Picture :

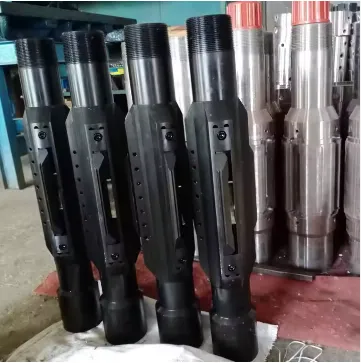

Sping type tubing anchor for sucker rod pump

Sping type tubing anchor for sucker rod pump



Sping type tubing anchor for sucker rod pump





Company Information







   Zhaoxin Industry & Trade Company, Ltd. of Dongying City is located in the hinterland of beautiful Yellow River Delta --- Dongying City normally called “ Petroleum City”. The company, which conducts scientific research, development, manufacture, sale and after sale service, is one enterprise for oilfield tool and equipment manufacture. At Shengli Industry Area, the company was established in 1999. It has owned more than 3000 square meters of workshops which manufacture different oilfield down hole tools and accessories such as fracture packer series, sand blast, fracture hydraulic anchor. The products of company have been widely applied in oilfields in China and entered markets abroad. The company conducts management mode of combination between regulation and humanity, develops perfect management system and inspiring system, has achieved ISO9000 international quality system certification and has got first order market entry qualification. The company has owned practical, specialized, experienced and powerful research and development team, applied and got more than 40 national patents awarded by National Intellectual Property Bureau, widened the markets in Neimeng, Xinjiang, and Liaohe,etc, and established approved reputation. For many years, the company has followed the management idea of existence by means of quality and development by means of innovation, maintained the service aim of quality first and reputation first, faced competition with the new products, explored development with the new idea and widened market with the new technology. In the future of more severe competition market, Zhaoxin Company , with perfect attitude, product and service, is going to make further development together with customers at home and abroad .

Our Services

We are a professional manufacturer of oil down hole tools , high quality and reasonable price .

For more information, you can contact me :

    Contact person : Alisa Ma

    Mob : +86-13706368719



Looking forward to cooperating with you!


Product Tags: oil well tubing anchor , tubing anchor , tubing anchor for oilfield
