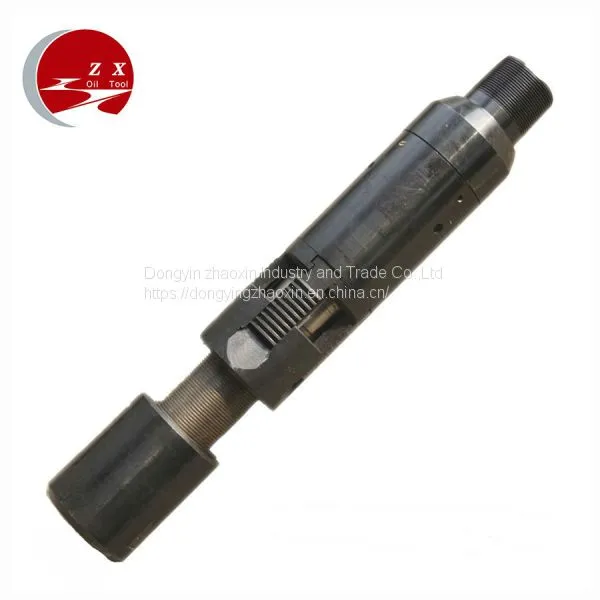

API Oilfield Mechanical Tubing Anchor for Sucker Rod Pump

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Port Tianjin or qingdao or lianyungang or shanghai
Payment TermsT/T L/C

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	ZHAOXIN	Place of Origin	China
Model Number	YGM-114/150	After-sales Service Provided	No overseas service provided
Condition	New

Product Description

Overview

1.Breif Intrduction

Our tubing anchor anchor the tubing string in a rod pumping well .The tubing anchor effectively reduce rod, tubing, and casing wear. This cuts operating costs. Elimination of breathing and buckling of the tubing string also increases production by lengthening the effective stroke of the pump, which increases volumetric efficiency. Based on proven technology, the Anchor uses hydraulically activated hold-down slips to provide an anchoring point for the tieback or workstring during stimulation operations. These tubing anchors are the most economical and effective insurance you can buy against premature repairs and downtime.

2.Technical and Specification

Model	Length (mm)	Max OD (mm)	Min ID (mm)	Pressure(MPa)	Max OD when teeth open	Setting Pressure (MPa)	Connecting Thread	Casing ID to be used
51/2"	580	115	62	25	128	8-12	2-7/8 TBG	121-124
7"	660	150	76	25	168	8-12	3 1/2 TBG	155-166
9 5/8"	970	208	76	25	245	8-12	3 1/2 TBG	218-240
9 5/8"	970	208	98	25	245	8-12	4 1/2 TBG	218-240

3.Services

our company have own services team can prodvide field services .

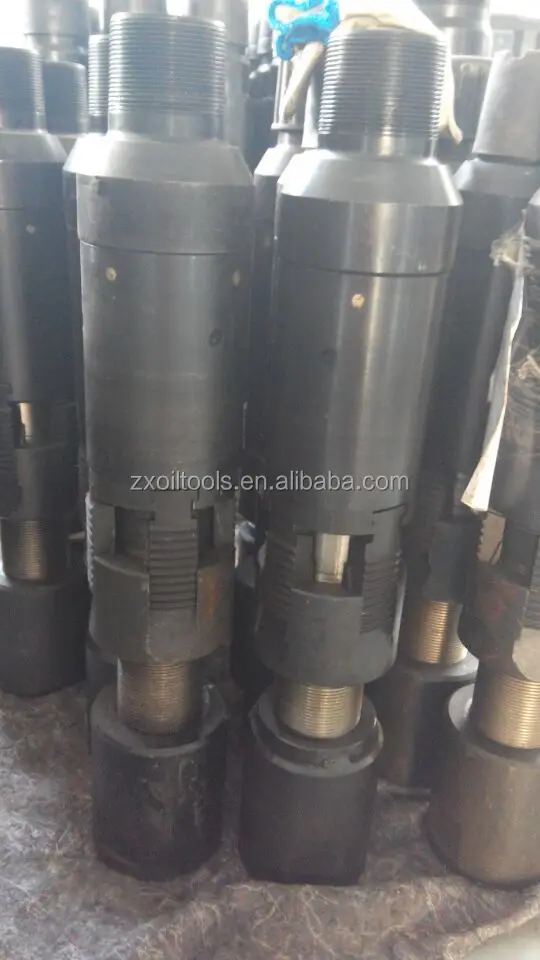

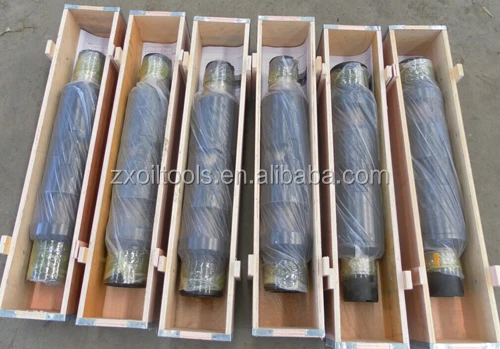

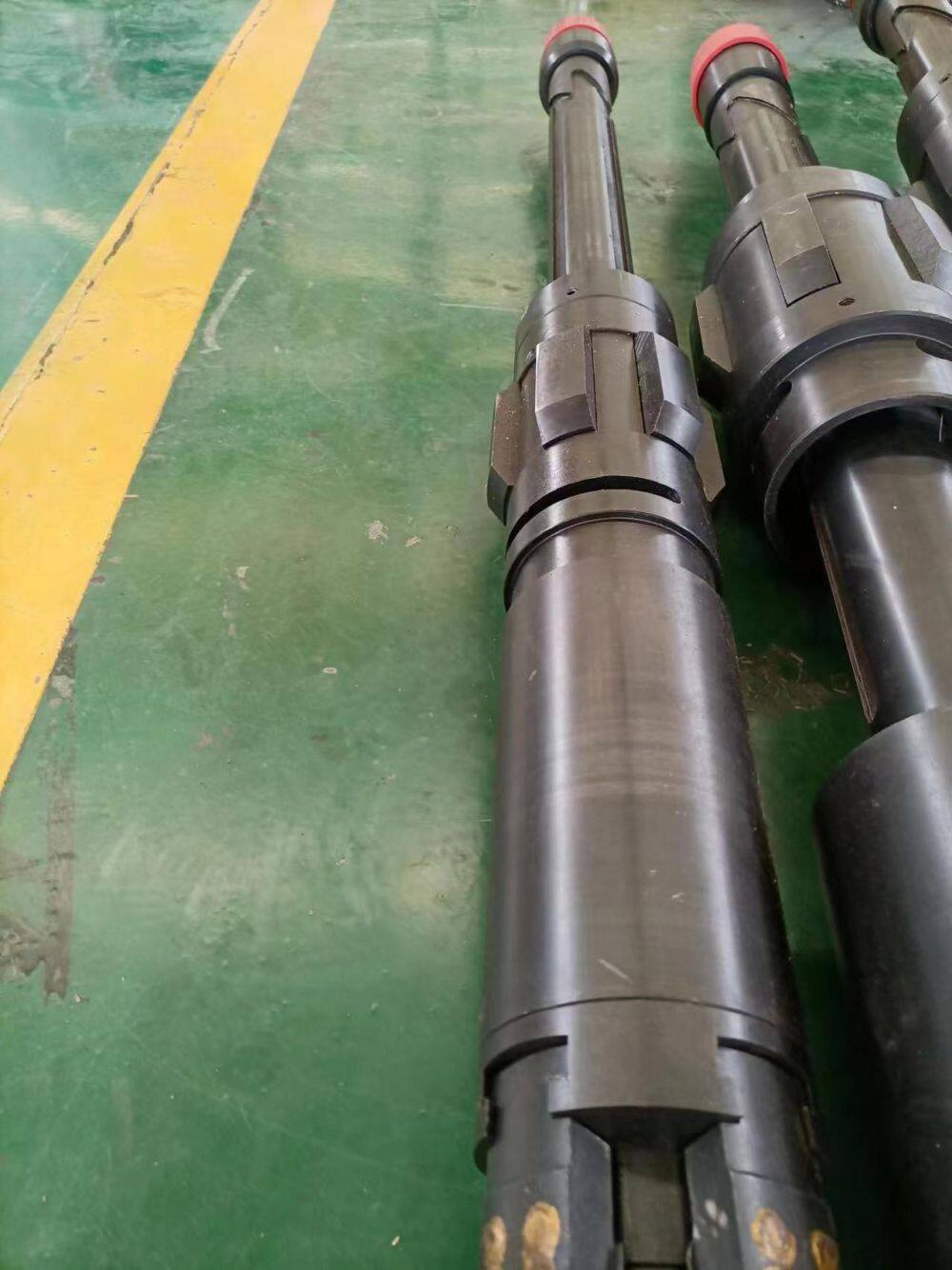

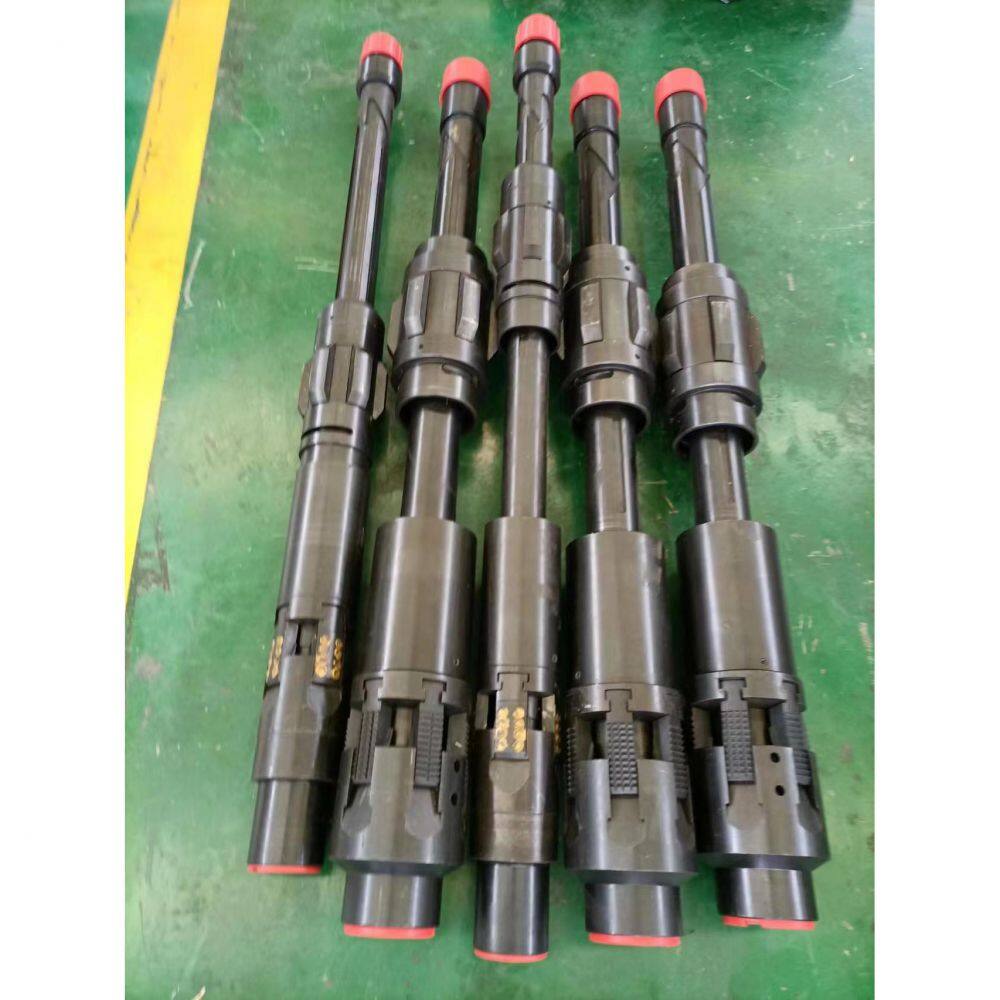

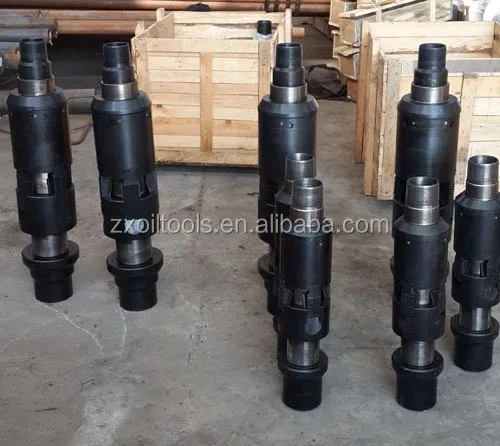

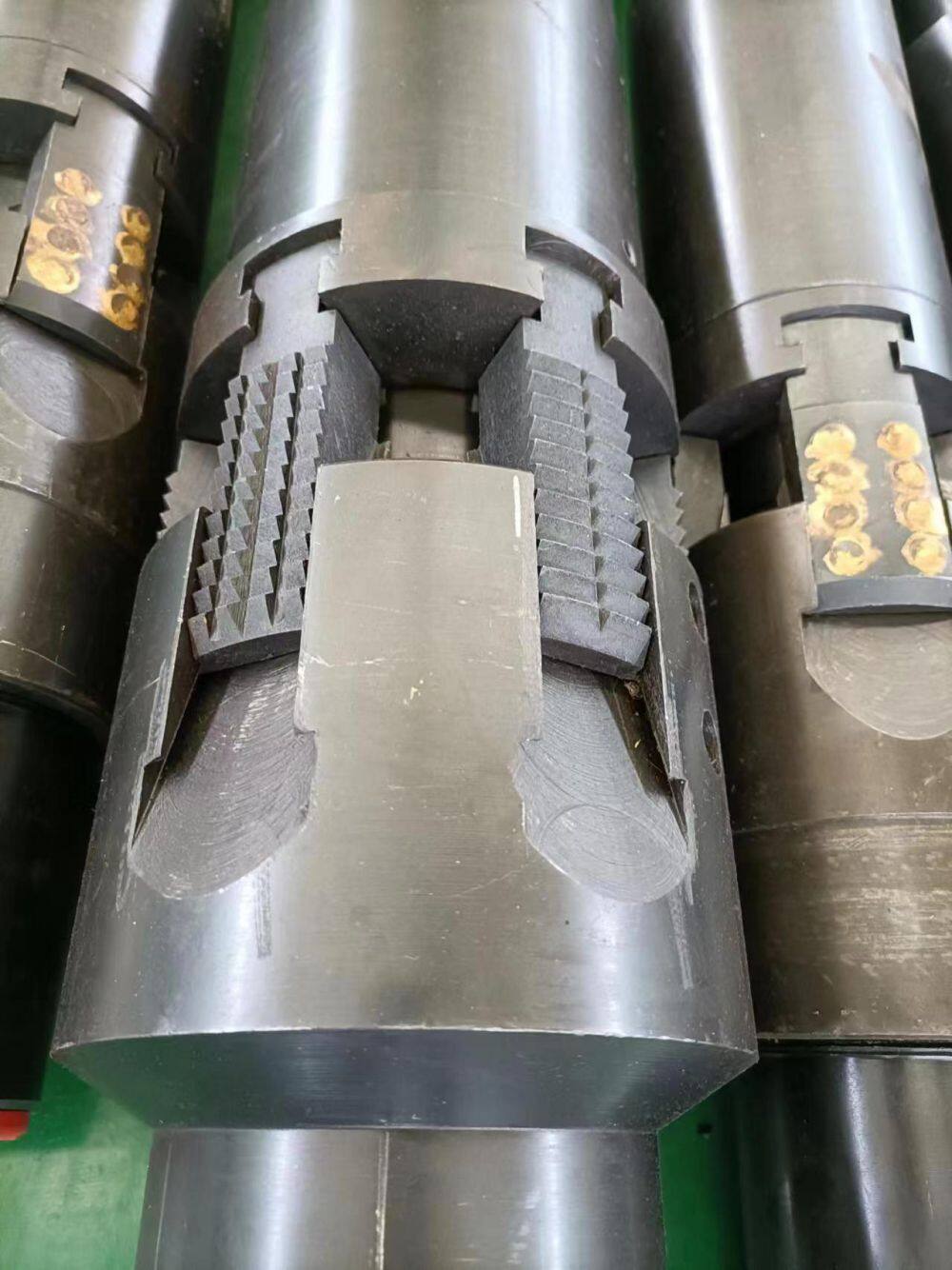

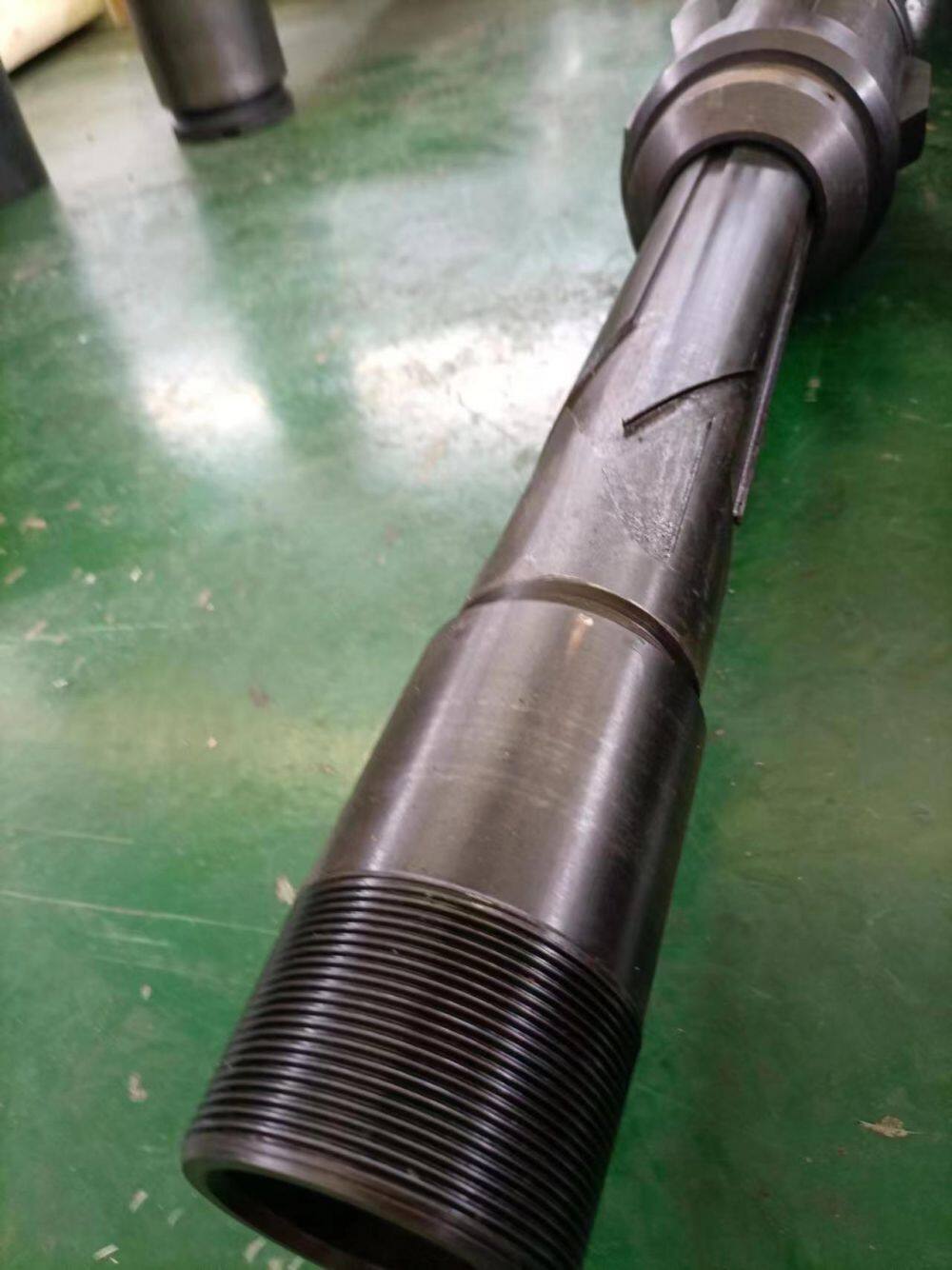

Picture :

Company Information

Zhaoxin Industry & Trade Company, Ltd. of Dongying City is located in the hinterland of beautiful Yellow River Delta --- Dongying City normally called “ Petroleum City”. The company, which conducts scientific research, development, manufacture, sale and after sale service, is one enterprise for oilfield tool and equipment manufacture. At Shengli Industry Area, the company was established in 1999. It has owned more than 3000 square meters of workshops which manufacture different oilfield down hole tools and accessories such as fracture packer series, sand blast, fracture hydraulic anchor. The products of company have been widely applied in oilfields in China and entered markets abroad. The company conducts management mode of combination between regulation and humanity, develops perfect management system and inspiring system, has achieved ISO9000 international quality system certification and has got first order market entry qualification. The company has owned practical, specialized, experienced and powerful research and development team, applied and got more than 40 national patents awarded by National Intellectual Property Bureau, widened the markets in Neimeng, Xinjiang, and Liaohe,etc, and established approved reputation. For many years, the company has followed the management idea of existence by means of quality and development by means of innovation, maintained the service aim of quality first and reputation first, faced competition with the new products, explored development with the new idea and widened market with the new technology. In the future of more severe competition market, Zhaoxin Company , with perfect attitude, product and service, is going to make further development together with customers at home and abroad .

Our Services

We are a professional manufacturer of oil down hole tools , high quality and reasonable price .

For more information, you can contact me :

Contact person : Alisa Ma

Mob : +86-13706368719

Looking forward to cooperating with you!
