Home > Products > swab cup > Tubing Swab Cup 2-3/8"-3-1/2"

Tubing Swab Cup 2-3/8"-3-1/2"

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Port Tianjin or Qingdao or as client's requirement
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	China	Model Number	2-3/8“-5-1/2“
Material	Other, Alloy	Certification	API
Use	Other	Processing Type	Forging
Machine Type	Drilling Tool

Product Description

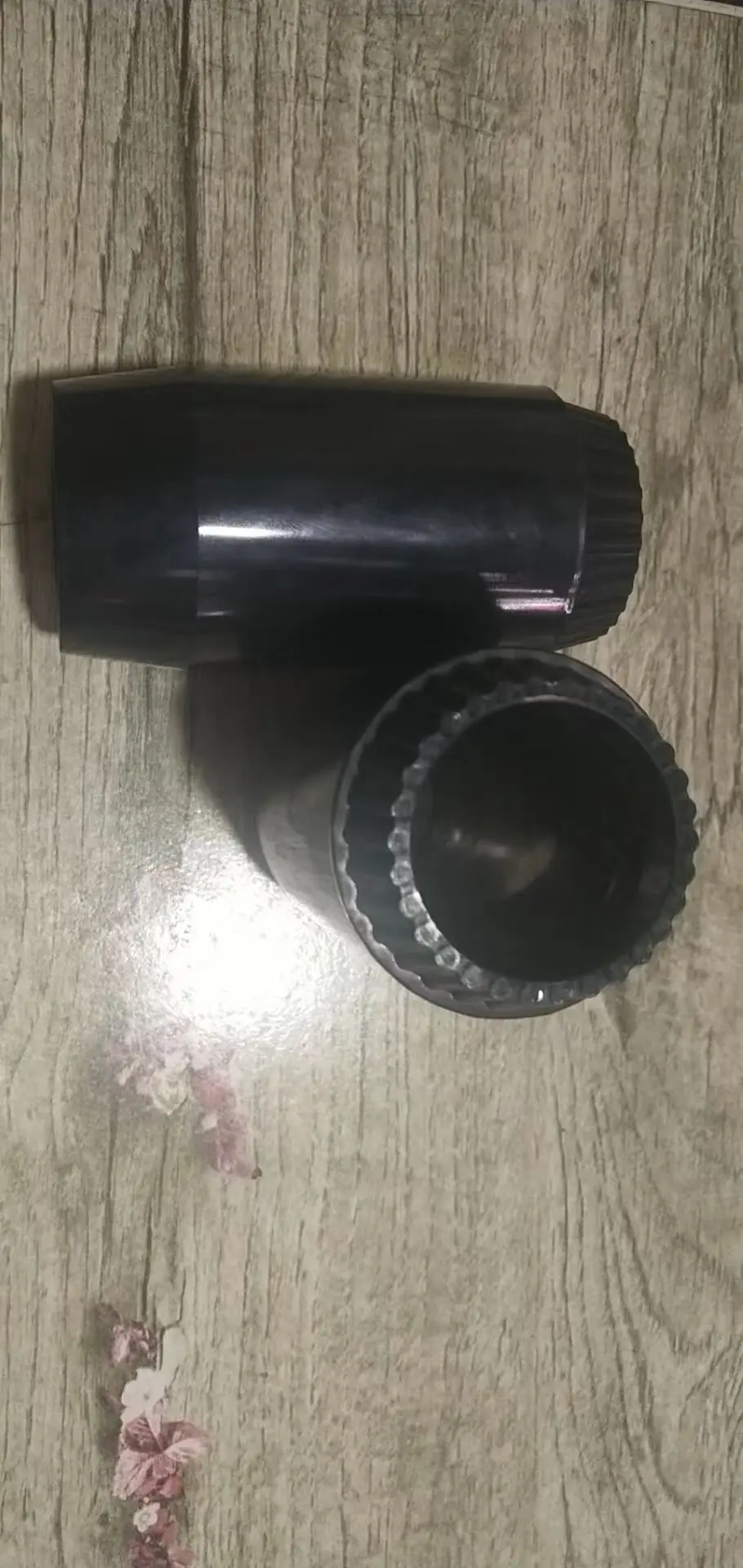

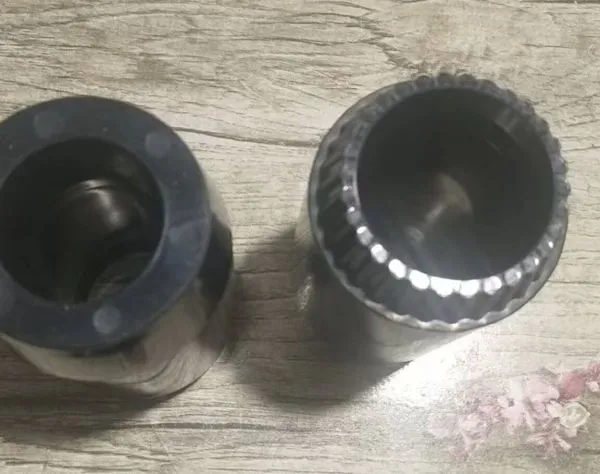

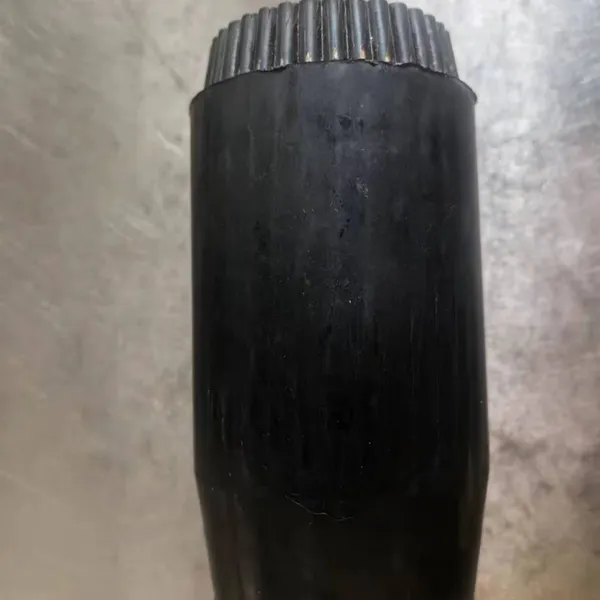

The TUF swab cup is a flexible, synthetic rubber cup with spring steel reinforcing wires for heavy loads but is flexible enough for light or medium loads.

The TUF swab cup is an all-purpose, synthetic rubber cup containing strong, flexible spring steel reinforcing wires.

Technical Parameters:

Tubing O.D.	LBS./Foot	Tubing Min I.D.	Nominal Tubing Size	Wire Cup
2.375	4.6	1.995	2”	PW2R 1.935
2.375	4.6	1.995	2”	PW2R 1.915
2.875	6.4	2.441	2-1/2”	PW2-1/2R 2.370
2.875	6.4	2.441	2-1/2”	PW2-1/2U 2.340
2.875	7.9	2.323	2-1/2”	PW2-1/2HS 2.220
2.875	8.7	2.259	2-1/2”	PW2.259 2.050
3.50	8.5-10.2	2.992	3-1/2”	PW3-1/2 2.920
4.50	10.4-12.5	4.090-3.958	4-1/2”	PW4-1/2C 3.890
5.50	13.5-15.5	5.044-4.950	5-1/2”	PW5-1/2C 4.920

Our Services

Company Information

Zhaoxin Industry & Trade Company, Ltd. of Dongying City is located in the hinterland of beautiful Yellow River Delta --- Dongying City normally called “ Petroleum City”. The company, which conducts scientific research, development, manufacture, sale and after sale service, is one enterprise for oilfield tool and equipment manufacture. At Shengli Industry Area, the company was established in 1999. It has owned more than 3000 square meters of workshops which manufacture different oilfield down hole tools and accessories such as fracture packer series, sand blast, fracture hydraulic anchor. The products of company have been widely applied in oilfields in China and entered markets abroad. The company conducts management mode of combination between regulation and humanity, develops perfect management system and inspiring system, has achieved ISO9000 international quality system certification and has got first order market entry qualification. The company has owned practical, specialized, experienced and powerful research and development team, applied and got more than 40 national patents awarded by National Intellectual Property Bureau, widened the markets in Neimeng, Xinjiang, and Liaohe,etc, and established approved reputation. For many years, the company has followed the management idea of existence by means of quality and development by means of innovation, maintained the service aim of quality first and reputation first, faced competition with the new products, explored development with the new idea and widened market with the new technology. In the future of more severe competition market, Zhaoxin Company , with perfect attitude, product and service, is going to make further development together with customers at home and abroad.
