2,000 psi cold working pressure
Recommended service
Manifold line connections, suction service, and corrosion service
Features
* O-ring in male sub improves sealing and protects metal-to-metal seal against corrosion
* Replaceable O-ring extends union service life
* 1 to 8 inch sizes
A: the union of compact structure, widely used in low-pressure well pipeline,
can also be used in the medium pressure range of air, water, oil or steam applications requirements.
B: the available models use the welding Sch.40.

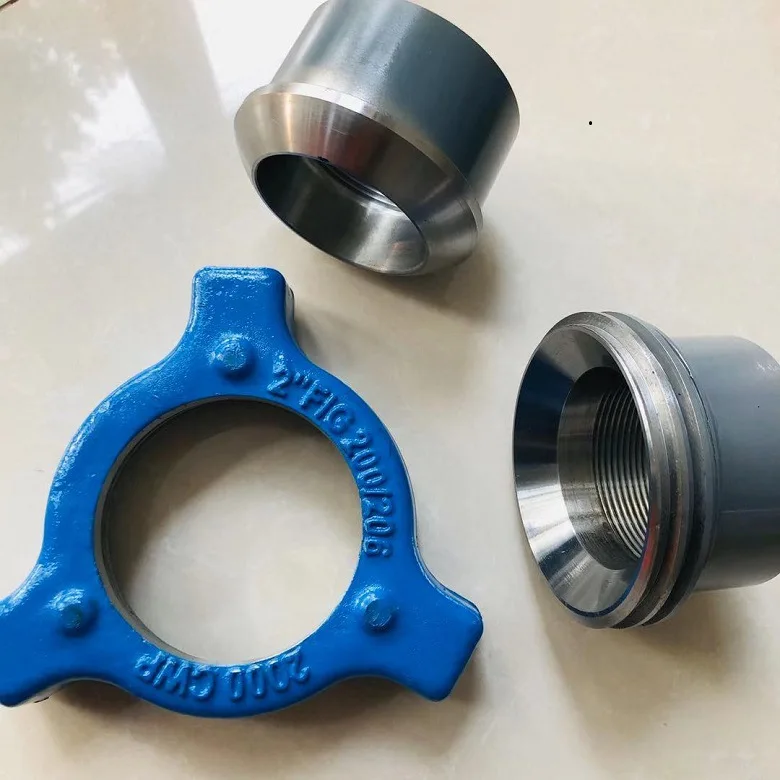

C: type 2006Hammer Union, 2000PSI NSCWP, the test pressure 3000PSI blue nut, grey parts
- Dongying zhaoxin Industry and Trade Co.,Ltd
- Main products: oil packer , torque anchor, sucker rod centralizer, gas anchor, coupling, washover pipe, polished rod clamp, tubing drain, tubing anchor, sucker rod roller /tubing centralizer, thread protector for oil pipes, sucker rod
Home > Products > hammer union > FMC weco figure 1502 1003 602 hammer union
FMC weco figure 1502 1003 602 hammer union
Negotiable
/ Piece
1 Piece(Min. Order)
- Tianjin or Qingdao or as client's requirement
- T/T
You May Like
Product Details
| Place of Origin | China | Model Number | 1“-6“ | |
| Material | Other, Alloy | Certification | API | |
| Use | Ore Mining | Machine Type | Drilling Tool |
Product Description
Products Description
FIG206
Other model parameters
FIG50
These low pressure and suction union of Fig-50 are made from carbon steel. The nut and O-ring are common in both sizes. Available in 4" or 5" sizes in threaded & socket welded connection. These unions are suitable
for 500 PSI wp.
for 500 PSI wp.
FIG100
1,000 psi cold working pressure
Recommended service
Manifold and line connections
Features
* Pressure-tight make-up with hammer
* Economical low-pressure union
A: precision sealing surface binding guarantees reliable pressure seal.
B: recommended the use of low pressure manifold and the work pressure is not more than 1000Psi.
B: type 100 Hammer Union, 1000PSI NSCWP, the test pressure 1500PSI black nuts, yellow
parts
Recommended service
Manifold and line connections
Features
* Pressure-tight make-up with hammer
* Economical low-pressure union
A: precision sealing surface binding guarantees reliable pressure seal.
B: recommended the use of low pressure manifold and the work pressure is not more than 1000Psi.
B: type 100 Hammer Union, 1000PSI NSCWP, the test pressure 1500PSI black nuts, yellow
parts
FIG200
2,000 psi cold working pressure
Recommended service
General service manifolds and lines
Features
* Economical, general-purpose union
* 1 to 8-inch sizes
A: the union of compact structure, widely used in low-pressure well pipeline, can also be used in the medium pressure range of air, water, oil or steam applications requirements.
B: the available models use the welding Sch.40.
C: type 200 Hammer Union, 2000PSI NSCWP, the test pressure 3000PSI blue nut, grey parts
Recommended service
General service manifolds and lines
Features
* Economical, general-purpose union
* 1 to 8-inch sizes
A: the union of compact structure, widely used in low-pressure well pipeline, can also be used in the medium pressure range of air, water, oil or steam applications requirements.
B: the available models use the welding Sch.40.
C: type 200 Hammer Union, 2000PSI NSCWP, the test pressure 3000PSI blue nut, grey parts
FIG207
2,000 psi cold working pressure
Recommended service
Seals manifold connections and protects union threads
Features
* Parts interchangeable with Figures 200 and 206
* O-ring on blanking cap ensures a leak-free seal
* Cap can be tapped for pressure gauge
* Available in butt-weld
Recommended service
Seals manifold connections and protects union threads
Features
* Parts interchangeable with Figures 200 and 206
* O-ring on blanking cap ensures a leak-free seal
* Cap can be tapped for pressure gauge
* Available in butt-weld
FIG602
6,000 psi cold working pressure
Recommended service
Manifold line connections and mud service
Features
* Replaceable, lip-type seal provides primary seal, protects
secondary metal-to-metal seal, and minimizes
Flow turbulence
* Butt-weld available
* Available for sour gas service at 6,000 psi cold working pressure
See specifications tables (pages WU1A to WU6A) for sizes, dimensions, weights, materials, and part numbers
Recommended service
Manifold line connections and mud service
Features
* Replaceable, lip-type seal provides primary seal, protects
secondary metal-to-metal seal, and minimizes
Flow turbulence
* Butt-weld available
* Available for sour gas service at 6,000 psi cold working pressure
See specifications tables (pages WU1A to WU6A) for sizes, dimensions, weights, materials, and part numbers
FIG1002
10,000 psi cold working pressure through 4-inch sizes; 7,500 psi cold working pressure, 5 and 6-inch sizes
Recommended service
Cementing, fracturing, acidizing, testing, and choke-and-kill lines
Features
* Replaceable, lip-type seal
* 5 and 6-inch sizes have O-rings for primary seals
* Available for sour gas service: 7,500 psi cold working pressure
* Butt-weld available
See specifications tables (pages WU1A to WU6A) for sizes, dimensions, weights, materials, and part numbers
Recommended service
Cementing, fracturing, acidizing, testing, and choke-and-kill lines
Features
* Replaceable, lip-type seal
* 5 and 6-inch sizes have O-rings for primary seals
* Available for sour gas service: 7,500 psi cold working pressure
* Butt-weld available
See specifications tables (pages WU1A to WU6A) for sizes, dimensions, weights, materials, and part numbers
FIG1502
15,000 psi cold working pressure
Recommended service
Cementing, fracturing, acidizing, testing, and choke-and-kill lines
Features
* Replaceable, lip-type seal
* Available for sour gas service: 10,000 psi cold working pressure; butt-weld
or non-pressure seal configurations only
* Butt-weld available
See specifications tables (pages WU1A to WU6A) for sizes, dimensions,
weights, materials, and part numbers
Recommended service
Cementing, fracturing, acidizing, testing, and choke-and-kill lines
Features
* Replaceable, lip-type seal
* Available for sour gas service: 10,000 psi cold working pressure; butt-weld
or non-pressure seal configurations only
* Butt-weld available
See specifications tables (pages WU1A to WU6A) for sizes, dimensions,
weights, materials, and part numbers
Specification
Product packaging
