Portable Hand Angle Grinders Rail Grinding Machine

Wuhan Linkage Track Equipment Co.,ltd
Portable Hand Angle Grinders Rail Grinding Machine thumbnail-1
Portable Hand Angle Grinders Rail Grinding Machine thumbnail-2
Portable Hand Angle Grinders Rail Grinding Machine thumbnail-3
Portable Hand Angle Grinders Rail Grinding Machine thumbnail-4
Portable Hand Angle Grinders Rail Grinding Machine photo-1
Portable Hand Angle Grinders Rail Grinding Machine photo-2
Portable Hand Angle Grinders Rail Grinding Machine photo-3
Portable Hand Angle Grinders Rail Grinding Machine photo-4
US$ 850 - 950 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
linkage
Place of Origin:
China
Model Number:
SNGM-180
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name linkage
Place of Origin China
Model Number SNGM-180

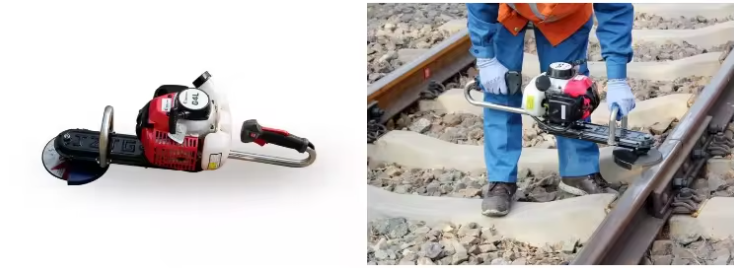

SNGM-180 Angle Grinder
SNGM-180 portable internal combustion rail grinding machine for all types of rails for all-round grinding.

its small size, flexible and lightweight, simple operation, high grinding efficiency, easy to carry, easy maintenance and repair, but also for other occasions.


1. The gasoline and two-stroke Komatsu gasoline engine special lubricants mixed with 50: 1 ratio or the use of the market to sell the two-stroke oil 25: 1 ratio of mixing, and shake evenly. Specific methods refer to the gasoline engine manual.
2. Check whether the wheel damage and moisture deformation, the end surface is smooth, if the normal use of the wheel should be replaced immediately. Press the stop button above the spindle (stop button can only be used as a disassembly lock nut, prohibited as a stop brake), use the machine to carry the wrench, the grinding wheel lock nut off, replace the new wheel The Install the grinding wheel with the same way to tighten the lock nut. (Note: If the lock nut is not easy to remove through the stop button, you can use other wrenches on the back of the grinding wheel in the flat side, and then forced to disassemble.
3. Start the gasoline engine, no-load operation of not less than 30 seconds, one hand to hold the front armrest, one hand after holding the handrail, internal combustion engine warmer, gradually increase the throttle, if no abnormal sound, the equipment is running smoothly and then polished.
Specification



Model
SNGM-180
Type
Railroad Track Grinding Machine
Material
Aluminium
Dimensions (L x W x H) (mm)
780*270 *310 mm
Petrol engine
Two-stroke gasoline engine
Power
1.42kW
Speed
≥7500r / min
Grinding wheel
180*22.2*6  Or  150* 22*6
Wheel speed
≥ 70m / s
The spindle speed
≥ 6000r / min
Machine weight
7kg

Package & Delivery

Export Standard Wooden box + pe bag+paper carton, 1 unit/Wooden box , Wooden box:151*60*95cm G.W: 10KG


Certificate




Company Profile

Wuhan Linkage track Co., Ltd. established in 2022, we are a rapidly growing company involved in the design and manufacture of an extensive range of equipment for the railway industry.

We started our business from producing railway measurement device in 2003 and wide our product range to small rail machines like rail cutting machine ,rail grinding etc .

Our company has expanded its operation to include three branch office , location facilitates in Xiangyang ,Wuhan and Guangzhou China.

Now, Linkage family of brands provides a diverse and comprehensive product line for different markets and demands.

Our products are sold in more than 50 countries and regions worldwide. Market acceptance is backed by ISO9001, European CE certification .
