Product Overview

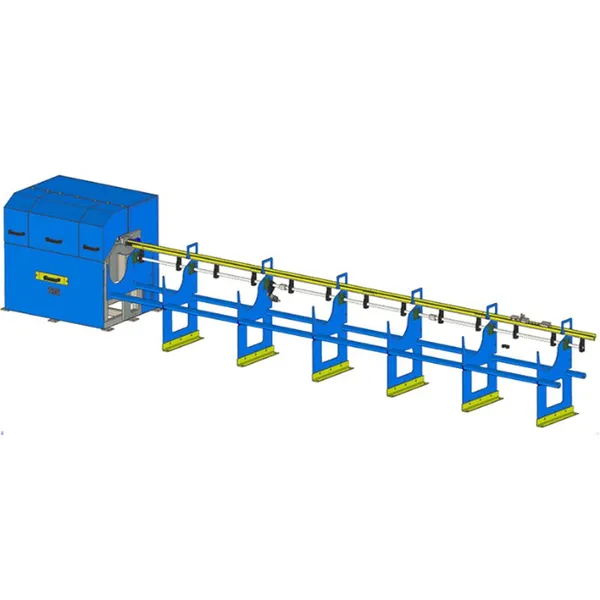

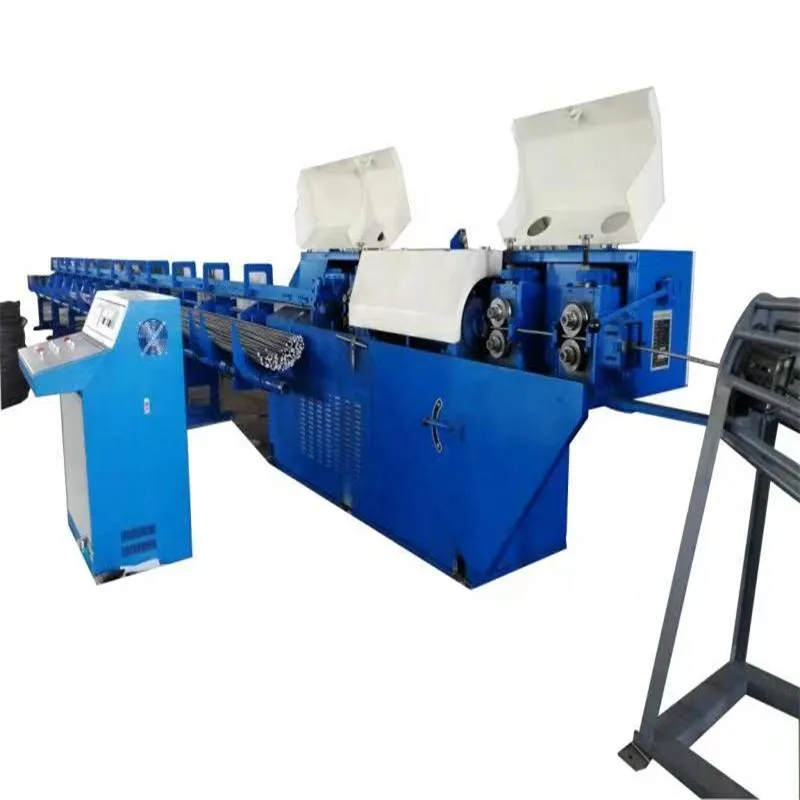

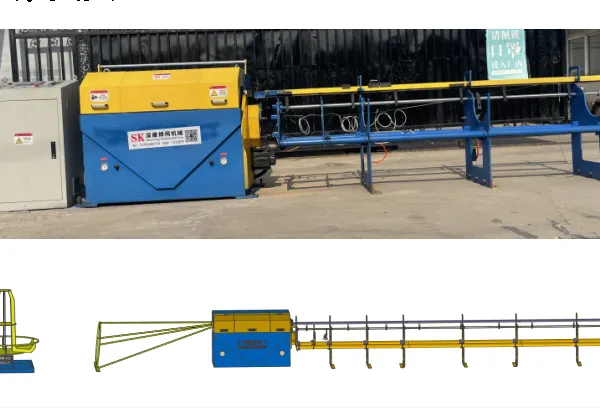

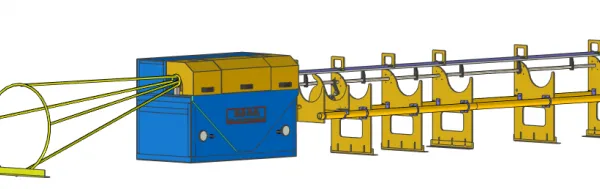

Fully automatic high-speed wire straightening machine
Wire straighteners are used to straighten and remove bends from metal wires to improve quality and precision. It consists of a feeding system, a straightening system and a discharging system, and is continuously processed through rollers or other straightening devices. It is widely used in steel, non-ferrous metal and other industries to improve the surface quality and processing accuracy of wire rods.
FEATURES AT A GLANCE
PRODUCT SPECIFICATIONS
| Model | GTJ2/4 |
| Wire diameter | 2mm-4mm |
| Straightening speed | 80-120m/min. |
| Straightness | ≤2mm／m |
| Material feeding form | Coil wire |
| Cutting length | 500mm-6250mm |
| Cutting way | Pneumatic cutting |
| Wire material | Cold drawn wire, galvanized wire |
| Wire pressing way | pneumatic |
| Cutting error | ±0.2mm／m |
| Overall power | 5.5KW |
| Power supply | 380V/3P/50HZ |
Company Profile
Anping Shenkang wire mesh products Co., Ltd. specializes in manufacturing wire mesh making machines.We have nearly 20 years‘ experience in this industry.
Our main products covers wire mesh welding machine for fencing, animal cage mesh welding machine, wire mesh welding machine for construction, reinforced steel mesh welding machine, electric welded wire netting machine, roll mesh welding machine, wire straightening and cutting machine, grassland net (cattle net) weaving machine, wire drawing machine, steel rebar cold rolling line, chain link fence making machine, barbed wire making machine, etc. Machine products are mainly applied in construction & building, highway, railway, coal mine, airport fence, garden, hardware, stadium fence, urban construction network and other fields.
Company Capability
common problem
Ask: How long does it take for delivery?
Answer: 40-45 days.
Ask: Does your company provide machine transportation?
Answer: Yes, we will provide you with the most favorable shipping route based on the delivery address you provided.
Ask: What packaging is used for the machine?
Answer: Wrap the machine in cling film and place it in a container.
Ask: Are you a trading company or a factory? Where is the location of the unit?
Answer: Our factory has been established for over 20 years and has its own trading department. Our factory is located in Anping County, Hebei Province, China. The nearest airport is Beijing Airport or Shijiazhuang Airport. We can pick you up from Shijiazhuang city.
Ask: Can we arrange for engineers to install the machines we purchased?
Answer: Yes, our engineers have been to over 60 countries before. They are very experienced.
Ask: What is the guarantee time for your machine?
Answer: Our warranty period is 2 years after the machine is installed in your factory.
Ask: Can your products be exported for transportation?
Answer: Sure. We have rich experience in exports.Ask: Can you provide us with the customs clearance documents we need?
Answer: Sure. We can provide relevant materials such as customs clearance documents, CE certificates, Form E, and certificates of origin.
