NQG-5.8 Portable Lightweight Abrasive Rail Saw Disc Cutting Machine

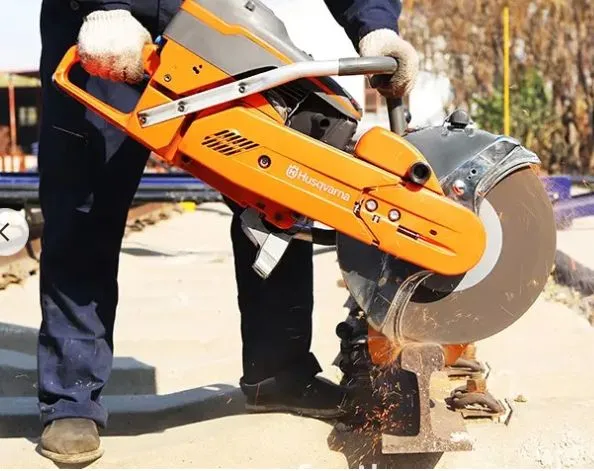

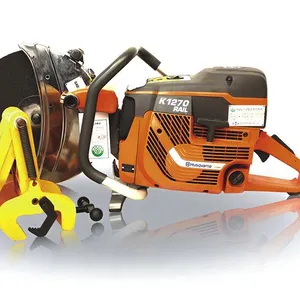

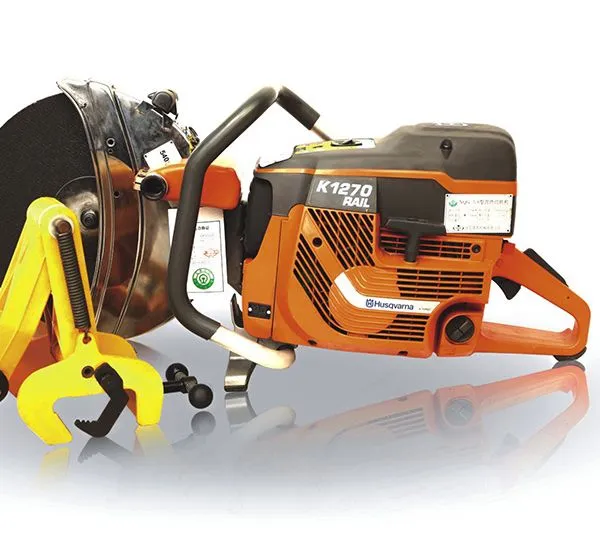

NQG-5.8 Portable Lightweight Abrasive Rail Saw Disc Cutting Machine photo-1

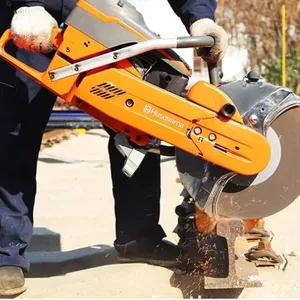

NQG-5.8 Portable Lightweight Abrasive Rail Saw Disc Cutting Machine photo-2
Negotiable MOQ: 1 Box (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
linkage rail
Place of Origin:
China
Model Number:
NQG—5.8
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Brand Name linkage rail
Place of Origin China
Model Number NQG—5.8
Material Stainless Steel
Dimensions (L x W x H) (mm) 670*600*510mm
NQG-5.8 Portable Lightweight Abrasive Rail Saw Disc Cutting Machine
NQG-5.8 lightweight abrasive rail saw is a railway maintenance tool. It not only cuts rails with high speed and high quality, but also has low wear cutting discs. It is locked by rail clamps. It has a simple structure, light weight, safety and easy movement. It is suitable for maintenance, repair of broken rails of seamless tracks, and cutting of steel rails in long rail welding factories.
PRODUCT SPECIFICATIONS
Model
NQG—5.8
Type
Abrasive Rail Saw
Material
Stainless Steel
Dimensions (L x W x H) (mm)
850*480*500mm
Engine
Single-cylinder, air-cooling two-stroke petrol engine (imported from Sweden K1270R)5.8 kW
Cutting disc form
Double- layer reinforced wire mesh
Linear speed of cutting disc
100 m/s
Rated RPM
≥4500 r/min
Specification of cutting disc
φ355xφ25.4 x3.8mm
Cutting accuracy
Vertical deviation of notch and rail≤0.30mm Deviation of bidirectional cutting interfaces≤0. 35mm
Cutting time
≤110s( cut off 60kg/m rail)
Fuel tank capacity
1.25 L
Weight
22kg


Product Tags: Abrasive Rail Cutting Machine , Railroad Maintenance Machine , Railway machine
