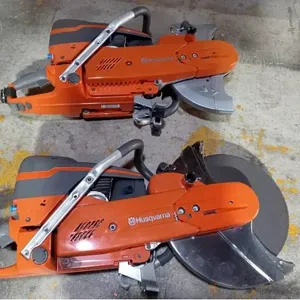

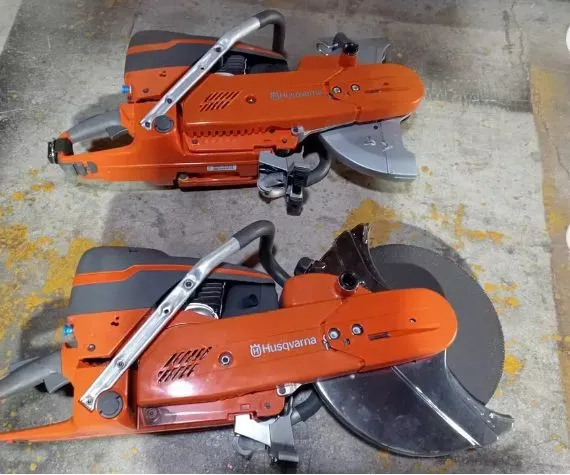

Help CenterK1270 14inch/16 Inch Rail Saw Rail Abrasive Cutting Machine
Related Products
-
Li-Battery Powered Abrasive Rail Saw Rail CutterNegotiableMOQ: 1 Box -
High Quality Abrasive Rail Cutting Machine For Railway MaintenanceNegotiableMOQ: 1 Box
-
Supply Abrasive Rail Cutter for Sale /Rail Cutting Machine/ Abrasive Rail Saw From China FactoryNegotiableMOQ: 1 Box
-
NQG-5.8 Portable Lightweight Abrasive Rail Saw Disc Cutting MachineNegotiableMOQ: 1 Box
-
Gasoline Abrasive Rail Disc Cutter Saw Railway Cutting MachineNegotiableMOQ: 1 Box

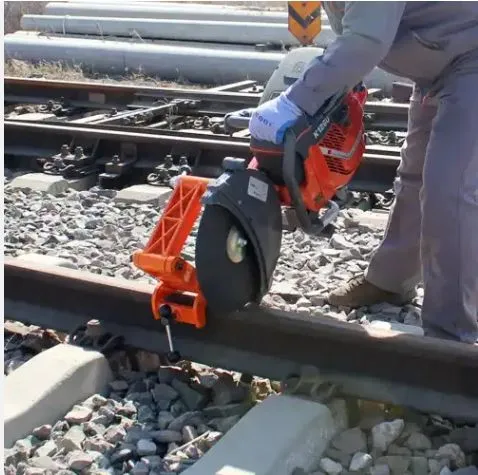

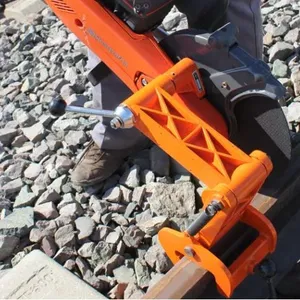

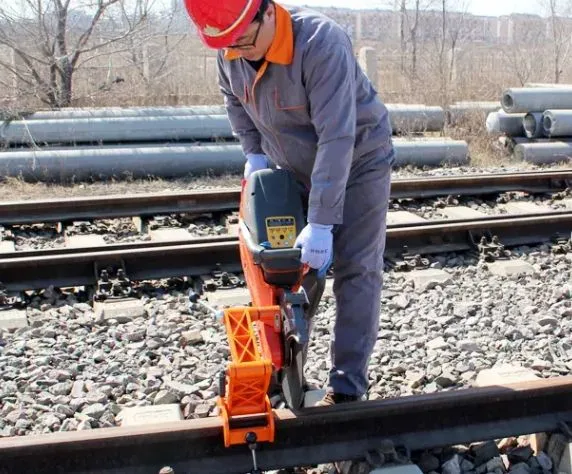

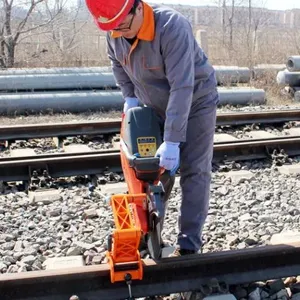

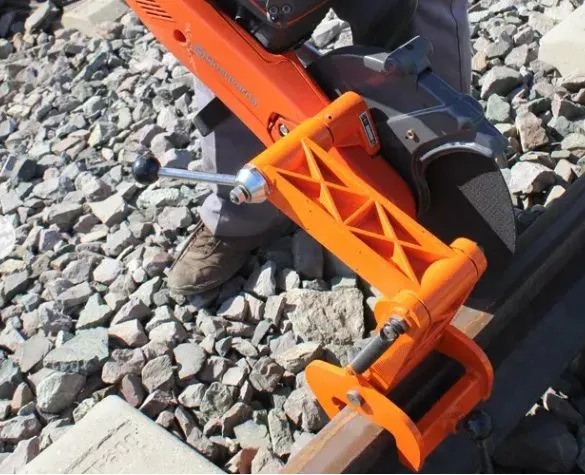

NQG-5.8 lightweight abrasive rail saw is a railway maintenance tool. It not only cuts rails with high speed and high quality, but also has low wear cutting discs. It is locked by rail clamps. It has a simple structure, light weight, safety and easy movement. It is suitable for maintenance, repair of broken rails of seamless tracks, and cutting of steel rails in long rail welding factories.
PRODUCT SPECIFICATIONS
Model |
NQG—5.8 |
Type |
Abrasive Rail Saw |
Material |
Stainless Steel |
Dimensions (L x W x H) (mm) |
850*480*500mm |
Engine |
Single-cylinder, air-cooling two-stroke petrol engine (imported from Sweden K1270R)5.8 kW |
Cutting disc form |
Double- layer reinforced wire mesh |
Linear speed of cutting disc |
100 m/s |
Rated RPM |
≥4500 r/min |
Specification of cutting disc |
φ355xφ25.4 x3.8mm |
Cutting accuracy |
Vertical deviation of notch and rail≤0.30mm Deviation of bidirectional cutting interfaces≤0. 35mm |
Cutting time |
≤110s( cut off 60kg/m rail) |
Fuel tank capacity |
1.25 L |
Weight |
22kg |
