Home > Products > drill bit > Well Drilling Drill Bit Huanghe Whirlwind China Supplier API Matrix Body Oil Well Drilling Pdc Bits Prices

Well Drilling Drill Bit Huanghe Whirlwind China Supplier API Matrix Body Oil Well Drilling Pdc Bits Prices

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Port Tianjin or Qingdao or as client's requirement
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	China	Model Number	2“-20“
Certification	API	Type	Drill Bit
Use	Well Drilling

Product Description

PDC Drill Bits for Oilfield

We provide both steel body PDC bits and matrix body PDC bits for oil & gas drilling.

Steel Body PDC Bits Features:

Body of steel body PDC bits are made of premium alloy steel.

Extensive tungsten carbide hardfacing prolongs the bit life.

High performance PDC cutters enhance the ROP and lifetime.

Optimal layout of blades and cutters increase the ROP and stability.

Optimal nozzle layout promotes hydro-horsepower of bits.

Matrix Body PDC Bits Features:

Body of PDC matrix body bits are cast by tungsten carbide matrix powder bonded with a copper-nickel alloy binder.

High performance PDC cutters enhance the ROP and lifetime.

Optimal layout of blades and cutters increase the ROP and stability.

Optimal nozzle layout promotes hydro-horsepower of bits.

Main parameter of PDC bits:

Bit size	IADC Code	Blades	Cutter size	Recommended formation
17-1/2"	S223	5	19mm	Ultra soft with stick layers and low compressive strength sand, mud, clay, marl
12-1/4"	S222	5	19mm
12-1/4"	M223	4	19mm
12-1/4"	M223	5	19mm
9-7/8"	M223	5	19mm
8-1/2"	M223	5	19mm
8-1/2"	S223	5	19mm
12-1/4"	M323	6	19mm	Soft with low compressive strength and high drillability marl, shale, anhydrite, sand, clay
12-1/4"	M323	6	19mm
9-7/8"	M323	6	19mm
8-1/2"	M323	6	19mm
12-1/4"	M323	5	16mm	Soft to medium compressive strength and high drillability shale, sand, chalk, limestone; soft to medium with low compressive strength and anisotropic layers shale, sand, chalk, limestone
12-1/4"	M323	6	16mm
9-7/8"	M323	6	16mm
8-1/2"	M223	5	16mm
8-1/2"	M323	6	16mm
8-1/2"	S323	6	16mm
6"	M222	5	16mm
12-1/4"	M333	6	13mm	Medium to hard with medium compressive strength and small abrasive layers shale, sandstone, limestone; Hard dense with high compressive and abrasive: shale, sandstone, limestone, siltstone
12-1/4"	M433	7	13mm
12-1/4"	M433	8	13mm
9-7/8"	M333	6	13mm
8-1/2"	M333	6	13mm
8-1/2"	M433	7	13mm
8-1/2"	M433	8	13mm
6"	M333	6	13mm
6"	M433	8	13mm
6"	M332	5	13mm

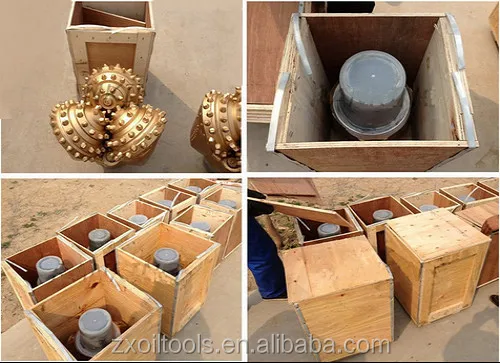

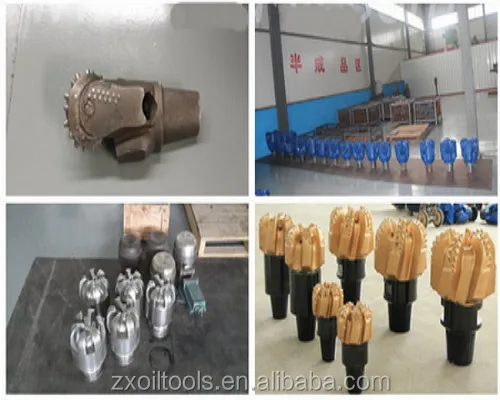

Picture :
