Detection of Crystallization Point of Benzene ASTM D852 Solidification Point of Benzene Tester

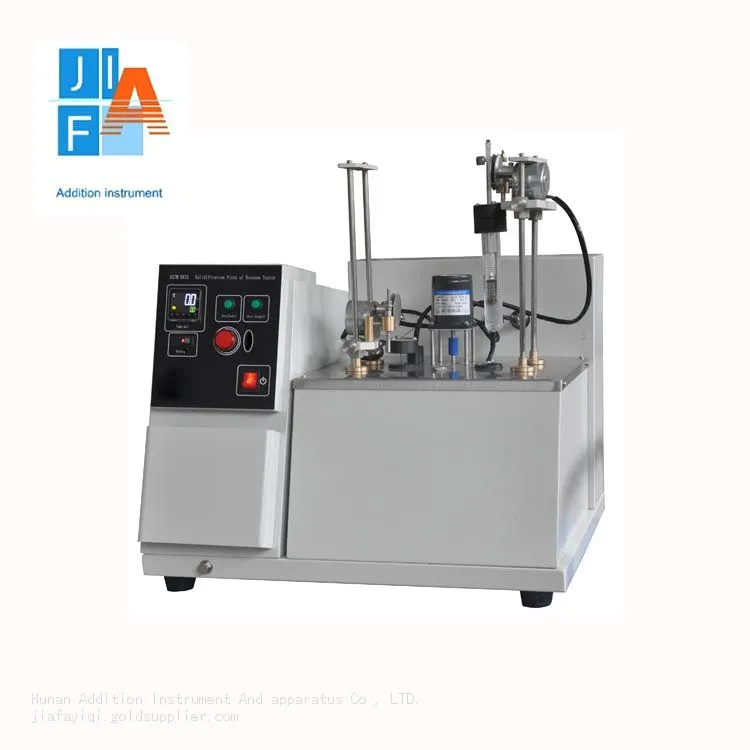

Solidification Point of Benzene Tester  ASTM D852

Product model: JF3145

Product Introduction

This instrument is suitable for detecting the crystallization point of benzene.

Technical Parameter

1. Applicable standard: ASTM D852, GB/T3145

2. Temperature control method: Digital display PID temperature controller

3. Temperature range: Rt ~ -20℃

4. Refrigeration method: Compressor refrigeration

5. Stirring method: Magnetic stirring

6. Power supply: AC220V±10%/50HZ

7. Working unit: 2 holes

Main Feature

1. Separate mechanical stirring device;

2. Imported fully enclosed compressor for refrigeration;

3. Stainless steel stirring wire;

4. Separate temperature control system;

5. There is an automatic compressor cooling system inside;

6. One-piece structure, small and beautiful appearance;

7. The instrument shell is made of cold-rolled steel plate, and the surface is electrostatically sprayed and baked at high temperature, which is easy to clean and corrosion resistant;

8. The compressor has a self-protection function;

9. Fengming of the system when the temperature is too high;

10. Microcomputer controller, PID function, digital display temperature (continuous display during testing), degree 0.1°C, Pt100 RTD temperature probe;

11. It is very convenient to access the control box;

12. The micro self-priming pump imported from Taiwan carries out internal circulation to ensure the uniformity of the cold bath temperature;

13. The built-in electric heating rod can quickly increase the temperature of the cold bath.

1. Q: What services are supported?

A: Free lifetime online technical services are supported.

2.Q: How long is the warranty period of the equipment sold?

A: The warranty is for twelve months

3.Q: How long is the delivery time?

A: Within 3 working days after receiving the down payment for the products in stock, and the specific delivery time depends on the order quantity and products.

4.Q: What is the minimum order quantity?

A: For the equipment, the minimum order quantity will be 1 set. For the lab parts, please contact us for final confirmation.

5.Q: What’s your transportation?

A: Express, air, sea transportation are supported, and appointed forwarders are also supported.

6.Q: Do you accept customization service? Can I have my logo on the machine?

A:Yes, of course. We can not only offer standard machines, but also customized machines according to your requirements. And we can also put your logo on the machine.

7.Q: How to install and use the product?

A: Operating instructions or video will be sent to you online or by email. Most of our machine is shipped with a whole part, which means it is already installed, all you need to do is to connect the power cable and start to use.

8.Q: What’s the trade term and delivery term?

A: Most of the common trade terms are supported, like CIF, FOB, CFR and so on . We have ordinary instruments in stock, the delivery time is 1-7 working days. If there are not in stock, the delivery time is 15-30 working days after the down payment.  If you are in urgent, we can consider making a special arrangement for you.
