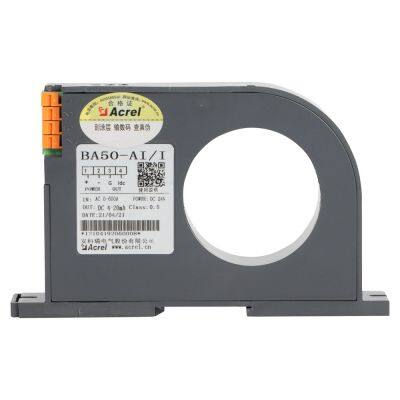

Acrel Electrical Sensor BA50-AI/V in AC0-600A Out 4-20mA/0-20mA Power Supply DC24V/12V Low Power Consump photo-3
Acrel Electrical Sensor BA50-AI/V in AC0-600A Out 4-20mA/0-20mA Power Supply DC24V/12V Low Power Consump photo-4
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2003
Factory Size:
3,000-5,000 square meters
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Overview
Product Introduction
BA Series AC current sensors transmit the AC current signal to standard DC analog signal (4-20mA or 0-5V) by accurate constant current technology and Temperature Linearity Compensation technology. They can all work under DC24V and 12V, and they have good capacity of overload, high accuracy, excellent isolatiion and low consumption. They are applied widely in the field of industrial automatization and comply IEC60688:1992 and IEC1851987.
Product overview

Features
Type
BA05
BA10
BA20
BA50


Input
Hole diameter
Φ5mm
Φ10mm
Φ20mm
Φ50mm
Current range
AC 0~10A
AC 0~50A
AC 0~200A
AC 0~600A
Overload
Continual 1.2 times; Instantaneous 10 times/5s
Frequency
25Hz~5KHz


Output
Range
DC 4-20mA; 0-20mA; DC 1-5V, 0-5V
Load resistance
Output current: ≤400Ω(12Vpower); ≤800Ω(24Vpower)

Output voltage:≥1kΩ
Ripple factor
<0.5% peak value
Accuracy
0.5
Response time
≤350ms
Power supply
Voltage
DC 12V or DC 24V
Comsumption
≤0.5VA (DC12V) ; ≤1VA (DC 24V)
Insulation resistance
≥ 100MΩ
Isolation
AC 3kV/min between input and connectors
Temperature drift
≤ 200ppm
MTBF
>50000h


ENV
Work T:
-20℃ ~ +55 ℃
Storage T:
-20℃ ~ +70 ℃
Relative
humidity:
5% ~ 95% (no condensation)
Altitude:
<2500m
Mounting
35mm standard DIN rail





Type
Input
Output
Option

BA05-AI


AC 0.5~10A
DC 4-20mA; 0-20mA


-T: RMS measurement
-1: DC12V power
-2: DC24V power
(If no T, sensors measure avarage value)

BA05-AV
DC 1-5V, 0-5V

BA10-AI


AC 8~50A
DC 4-20mA; 0-20mA

BA10-AV
DC 1-5V, 0-5V

BA20-AI


AC 40~150A
DC 4-20mA; 0-20mA

BA20-AV
DC 1-5V, 0-5V

BA50-AI


AC 60~600A
DC 4-20mA; 0-20mA

BA50-AV
DC 1-5V, 0-5V
