Competitive Price Fine Sand Recycling Machine Sand Recovery Plant

Zhengzhou VANGUARD Machinery Technology Co., Ltd.
Competitive Price Fine Sand Recycling Machine Sand Recovery Plant thumbnail-1
Competitive Price Fine Sand Recycling Machine Sand Recovery Plant thumbnail-2
Competitive Price Fine Sand Recycling Machine Sand Recovery Plant thumbnail-3
Competitive Price Fine Sand Recycling Machine Sand Recovery Plant photo-1
Competitive Price Fine Sand Recycling Machine Sand Recovery Plant photo-2
Competitive Price Fine Sand Recycling Machine Sand Recovery Plant photo-3
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
VANGUARD
Place of Origin:
China
Certification:
ISO9001-2008 international quality management system certification and European CE certification
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name VANGUARD
Place of Origin China
Certification ISO9001-2008 international quality management system certification and European CE certification
After-sales Service Provided Engineers available to service machinery overseas
Warranty 12 months
Condition New
Motor Type AC Motor
Product Description
Competitive Price Fine Sand Recycling Machine Sand Recovery Plant
The fine sand recovery device overcomes the difficult problem that the sand is washed and dehydrated by sand washing machine in traditional technology, and the loss of fine sand is difficult to control. The fine sand recovery device can effectively reduce the loss of fine sand, effectively reduce the content of stone powder in tail water. Fine sand recovery machine is also known as tail-sand recovery machine, fine sand extraction machine, fine sand collection machine, sand separator, mud separator, sand water mixture treatment system.
PRODUCT PARAMETERS
Model
Separator specification
Size of dewatering screen
Dehydration screen power（KW）
Type of pump
Pump power（KW）
Processing capacity（T/H）
Overall dimension
(mm)
WS8018
250
800*1800
0.75*2
2/3
11
5--10
2200*1400*2150
WS9020
300
900*2000
1.1*2
3/4
15
10--20
2500*1400*2300
WS1225
350
1200*2500
202*2
3/4
15
20--30
3000*1700*2300
WS1530
350*2
1500*3000
3.0*2
3/4
15*2
50--80
3100*2000*2500
2WS1530
350*2
1500*3000
3.7*2
3/4
15*2
50--100
3100*2000*2800
WS1840
350*2
1800*4000
3.7*2
3/4
15*2
100--130
4200*2300*2800
2WS1840
350*2
1800*4000
3*4
3/4
15*2
100--150
4550*2300*2800
WS2050
500*2
2000*5000
3.7*4
3/4 or 4/6
18.5*2
150--200
5200*2500*3100
2WS2060
500*2
2000*6000
3.7*4
2/3
22*2
200--260
6500*2500*3100
Notes
①Cyclone model can be selected according to the requirements  ②2/3 pump flow rate 45 tons / hour
③3/4 pump flow rate 80-100 tons/hour                    ④4/6 pump flow rate 300-360 tons / hour
⑤The pump can be selected according to the amount of water on site

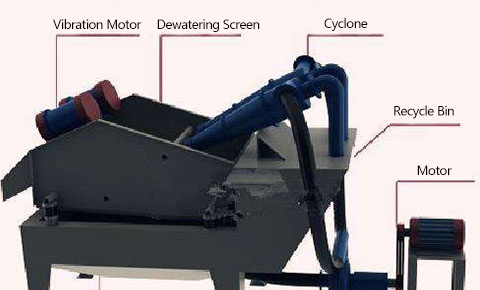

Features of Fine Sand Recycling Machine

1. Greatly reduce the mud, water, dust, impurities in the sand, greatly improving the quality of sand and increasing the benefits.
2. Advanced linear vibration dewatering sieve out of the dip material has a good dehydration effect.
3. Cyclone liner composition containing polyurethane improves the life of whole sand recycling device, which is conducive to concentrated slurry and liquid clarification.
4. Fine particles are fully recovered, reducing the workload of the sedimentation tank and the cleaning cost of the sinking tank.
Advantages of Fine Sand Recycling Machine
1. Higher sand quality, lower moisture content.
2. Compact structure, multiple functions, easy install, convenient maintenance, small occupation area.
3. Polyurethane screen is adopted, which is of longer life and less clogging.
4.Low energy consumption and environmental protection.
5.Achieve 80%-90% of the fine sand recovery effect and the direct economic benefit for customers is more than 15%.

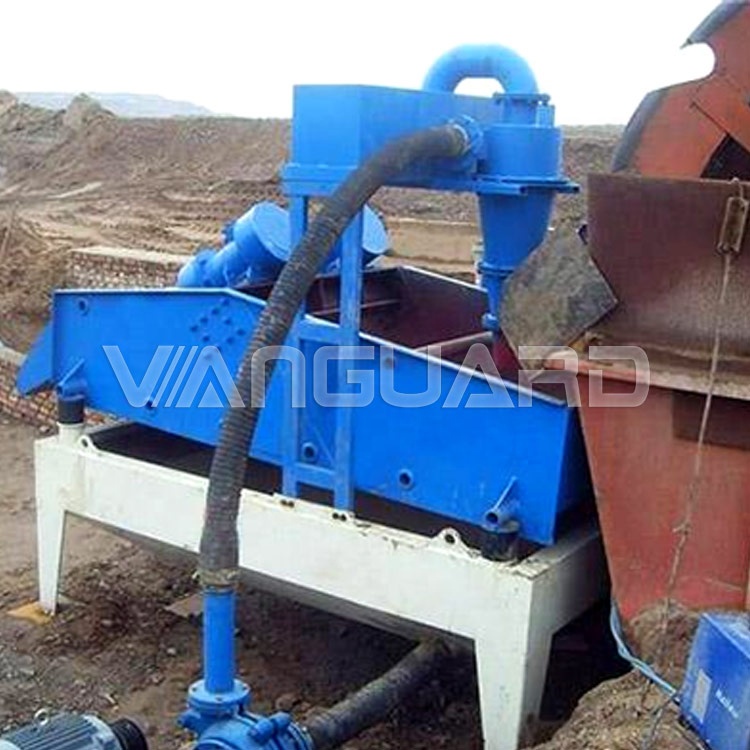

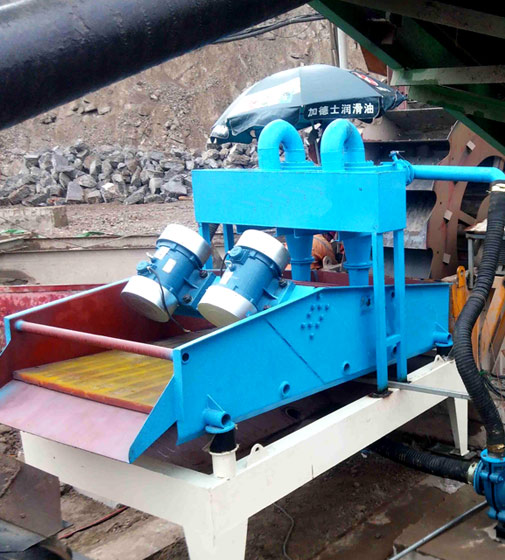

CUSTOMER CASES
Packaging and Shipping
About VANGUARD
Zhengzhou Vanguard Machinery Technology Co., Ltd. is a professional high-end equipment manufacturing enterprise integrating R&D, production and sales. Its business scope covers sand and gravel aggregates, industrial grinding powder, mobile crushing plant, EPC general contract project and other professional high-end equipment manufacturing enterprises. Our factory covers 110000 square meters and our products are sold to more than 100 countries, being the popular equipment in global crushing industry.
Matching of production and support system allows customers to get best service at lowest cost.
Qualification
Our products have passed ISO9001-2008 international quality management system certification and European CE certification and established a fully controlled quality management system. We are playing a leading role in quarry mining, sand making and industry powder producing fileds.
Our Services
FAQ
Q1: what will you do if the machine is broken down? Does your company supply the spare parts?
A: The Products warranty is 12 months. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. And we will supply the spare parts with high quality for you at lowest cost.

Q2: How long is your delivery time？
A: The lead time is 10-30 days. Delivery time will vary depending on the type of the machine, availability and shipping method.

Q3：What about Warranty?
Ours Warranty is 1 year for whole machinery .For wear parts, we guarantee the high quality parts for long-term supply.

Q4: How about the quality of your equipment?
A: Our products are manufactured strictly according to national and international standard, and we will take a test on every set of machine before delivery.
