DOING 2026 Waste Plastic to Diesel Recycling Plant Waste Plastic Pyrolysis Plant and Waste Oil Distillation Machine

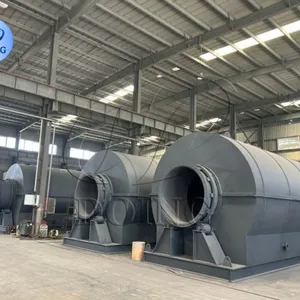

DOING 2026 Waste Plastic to Diesel Recycling Plant Waste Plastic Pyrolysis Plant and Waste Oil Distillation Machine photo-1
DOING 2026 Waste Plastic to Diesel Recycling Plant Waste Plastic Pyrolysis Plant and Waste Oil Distillation Machine photo-2
DOING 2026 Waste Plastic to Diesel Recycling Plant Waste Plastic Pyrolysis Plant and Waste Oil Distillation Machine photo-3
DOING 2026 Waste Plastic to Diesel Recycling Plant Waste Plastic Pyrolysis Plant and Waste Oil Distillation Machine photo-4
DOING 2026 Waste Plastic to Diesel Recycling Plant Waste Plastic Pyrolysis Plant and Waste Oil Distillation Machine photo-5

Product Spotlights

Our pyrolysis machine that can convert waste into heavy fuel oil, which can be used as a substitute fuel for industrial boilers, steel mills, and cement plants. Our waste oil refining machine can convert the heavy fuel oil obtained from waste pyrolysis into non-standard diesel, which can be used for heating boilers and heavy machinery, or mixed with base oil for use in tractors, ships, etc. However, it cannot be used in cars or motorcycles.
US$ 38000 - 88000 MOQ: 1 Set
Key Specifications
Get Latest Price
Certification:
CE, ISO
Warranty:
1 year
Structure:
Other
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao or other ports
Delivery Detail:
Delivery time depends on order quantity.
Certification CE, ISO
Warranty 1 year
Structure Other
Automatic Grade Automatic
After-sales Service Field installation, commissioning and training guidance
Customized Customized
Condition New
Transport Package As required
Trademark DOING
Origin China

Product Scheme


Equipment Details

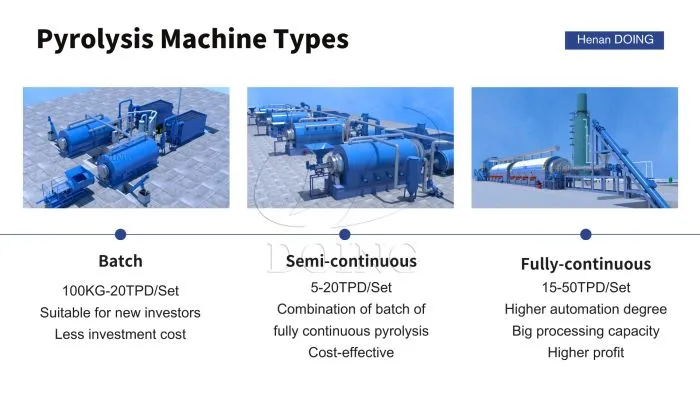

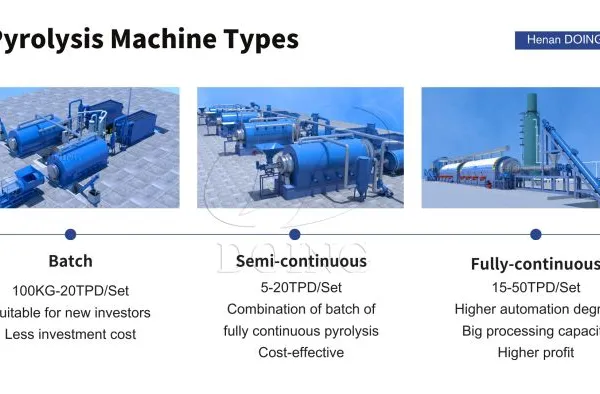

700 炼油设备类型.jpg.webp700-间歇设备配置细节.jpg.webp700-半连续设备细节.jpg.webp700-全连续炼油 (2).jpg.webp

Items

Waste Pyrolysis Plant

Equipment Type

Batch

Semi-continuous

Fully Continuous

Raw Material

Waste rubber tyres, plastic, oil sludge, coal tar, aluminum plastic, etc.

Structural Form

Horizontal rotation

24-hour Capacity

100kg-20ton

10-20 ton

15-50ton

Oil Yield

From 30%-70%

Operating Pressure

Normal

Pyrolysis Reactor Material

Q245/345R, boiler plate, stainless steel

Thickness of pyrolysis Reactor

14,16,18,20mm

Rotate speed of pyrolysis Reactor

0.4turn/minute

Total power

≤30KW

Mode of cooling

Circulating water cooling

Cooling Area of Condenser

100sqm

Kind of Transmission

Internal gear drive

Weight

Depends on the Scales

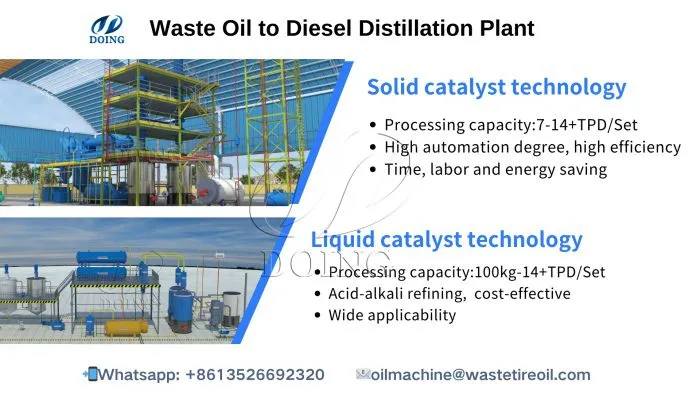

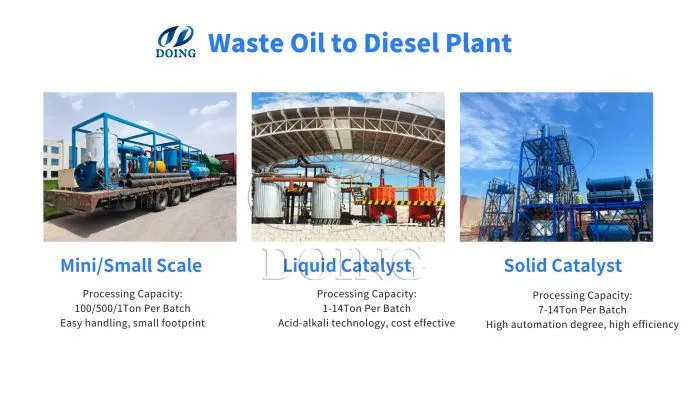

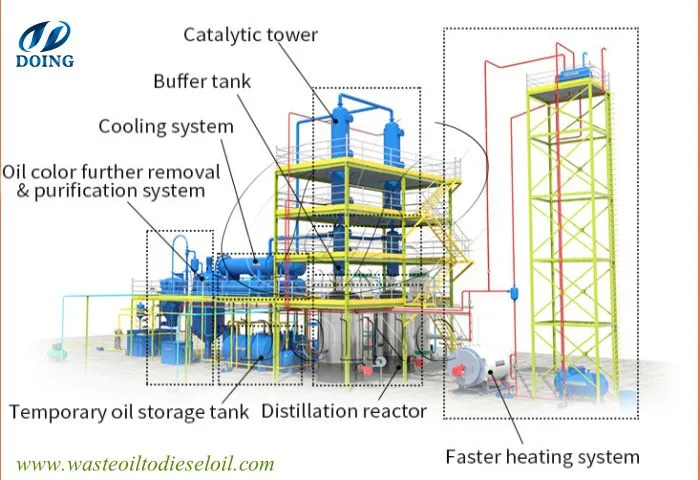

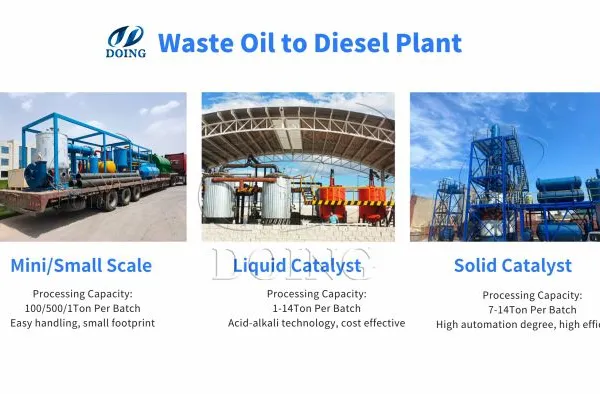

700-废油精炼 (3).jpg.webp700-精炼设备 (6).jpg.webp700-精炼设备细节.jpg.webp

Item

Content

Model

DY-500KG, DY-1T, DY-3T, DY-5T, DY-7T, DY- 10T, DY- 14T....

Raw Material

Used motor oil, waste engine oil, old luble oil, crude oil, tire plastic pyrolysis oil, etc.

Structure Form

Vertical (easy cleaning and maintenance)

Heating Method

Indirect heating to prolong the machine service life

Operating Pressure

Constant pressure

Heating Material

Coal, charcoal, fuel gas, fuel oil

Diesel Output Rate

80-85%

Material of Reactor

Q245/245R, boiler plate, stainless less

Reactor Thickness

12/14/16mm

Mode of Cooling

Recycled water cooling

Power in Total

20 Kw

Service Life

average 7 years

Land Area

200-300㎡(10T)

Catalyst

Solid catalyst

Liquid catalyst

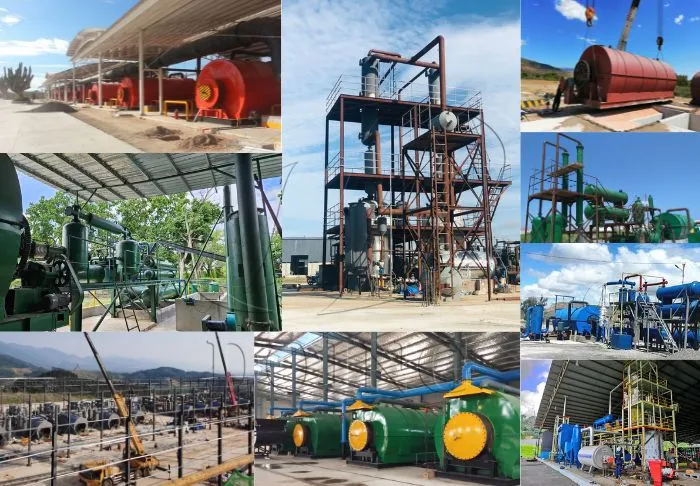

Project Case


Customer Feedback

12

Why Choose Us

750-精炼公司简介11

13700-公司服务 (2)

FAQ

Q: How much is a waste to diesel plant?

A: Different capacities of waste to diesel plants have different cost. And also different desgins of pyrolysis plants and distillations plant have different cost. But if you want to save some cost, our engineer also can design the most efficient machine solutions for you. To caculate detailed cost for your referrence , please contact us directly.


Q: How can I sell the tyre pyrolysis oil and plastic oil?

A: The good sales, because oil is an energy, hotels, restaurants, bath center, diesel stoves, boilers, mostly using this oil as fuel, other power plants, ceramic plants and many other enterprises to use more of this fuel. In addition, this oil through the oil processing and reconciling national standard can be directly used as fuel engine. Buy our equipment, users share a large network, this network has sold buy.


Q: How many countries your machine have been exported and installed?

A: Our machinery have been sold to more than 100 countries and regions around the world, winning
great praise and trust of our customers all over the world! For example, America, South Africa, Japan,  Italy, Romania, Macedonia, Albania, Estonia, Rusian, Egypt, Ethopia, Nigeria, Congo, Lebanon, Jordan, Pakistan, Kazakhstan, India, Tailand, Malaysia, Mexico, Panama, Guatemala, Aruba, Jamaica, Ecuador, Haiti, etc.

Q: Can we visit your factory of pyrolysis plant ? And where is your factory?

A: Our office is in Zhengzhou City, Henan Province, China. From Zhengzhou International Airport to our office is just need 30min. We are responsible to pick customer up. We have sample machine in our factory for your visiting. Welcome at any time!
