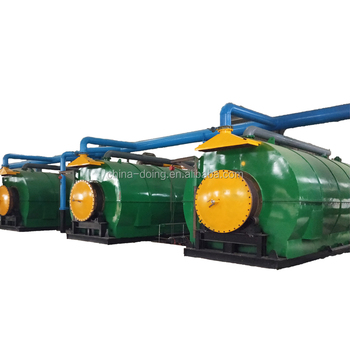

High Oil Yield Waste Plastic to Fuel Oil Recycling Pyrolysis Machine Convert Aluminum Plastic to Fuel Oil Pyrolysis Plant With 1-50TPD

Name: High Oil Yield Waste Plastic to Fuel Oil Recycling Pyrolysis Machine Convert Aluminum Plastic to Fuel Oil Pyrolysis Plant With 1-50TPD
Brand: DOING
Availability: InStock

FOB Price

US$ 28000 - 98000 / Set

1 Set(Min. Order)

Port qingdao or other ports
Payment TermsT/T L/C D/P D/A Cash Other

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	DOING	Place of Origin	China
Model Number	DY-0.1-50tpd	After-sales Service Provided	Overseas service center available
Warranty	one-year service guarantee	Certification	SGS/ISO/CE
Condition	New

Product Description

DOING COMPANY PYROLYSIS PLANT

The continuous type and batch type pyrolysis plants designed by Doing Company’s engineer team have been exported to the United States, the United Kingdom, France, Italy, Australia, Dubai, Brazil, Kazakhstan, Pakistan, India, Nigeria, Mexico, Egypt, Thailand and other 90+ countries and regions. Their outstanding economic and environmental benefits have led the development of the waste tire/plastic/oil sludge/rubber/aluminum plastic composite material pyrolysis industry. The whole process is safe and environmentally friendly. For details, please contact our professional project manager for consultation.

Product Paramenters

Scheme 1: small scale free installation pyrolysis plant unit

Scheme 2: cost effective batch type pyrolysis plant

Items	Batch Pyrolysis Plant
Equipment type	DY-1-6	DY-1-10	DY-1-12
Raw material	Waste plastics, tyres	Waste plastics, tyres	Waste plastics, tyres
Structural form	Horizontal rotation	Horizontal rotation	Horizontal rotation
24-hour Capacity	6 ton	10 ton	12 ton
Oil yield	2.7-3.3ton	4.5 -5.5ton	4.8 -6.6ton
Operating pressure	Normal	Normal	Normal
Material of pyrolysis Reactor	Q245R	Q245R	Q245R
Thickness of pyrolysis Reactor	16mm	16mm	16mm
Rotate speed of pyrolysis Reactor	0.4turn/minute	0.4turn/minute	0.4turn/minute
Total power	15KW	15KW	15KW
Mode of cooling	Water cooling	Water cooling	Water cooling
Cooling area of condenser	100sqm	100sqm	100sqm
Kind of transmission	Internal gear drive	Internal gear drive	Internal gear drive
Noise dB(A)	≤85	≤85	≤85
Size of Reactor(D×L)	2200×6000	2600×6600	2800×6600
Working form	Intermittent operation	Intermittent operation	Intermittent operation
Delivery time	20days	20days	20days
Weight	27T	32T	35T

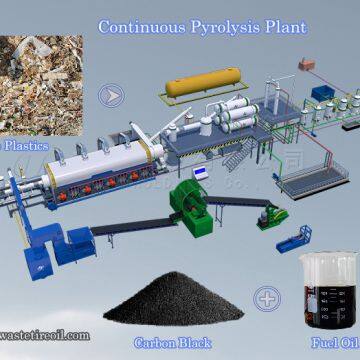

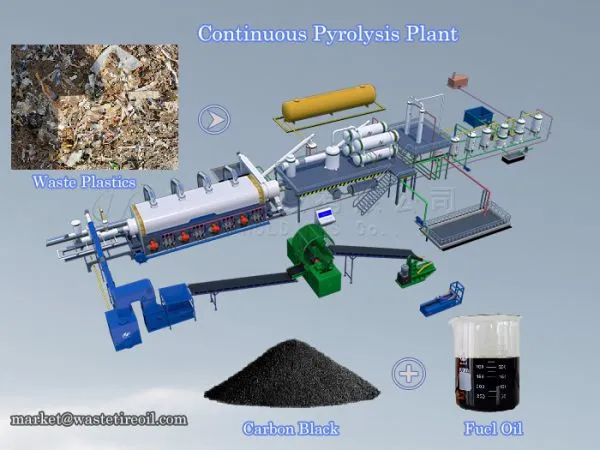

Scheme 3: New design continuous type pyrolysis plant

Item	Continuous Pyrolysis Plant
Model	DY-C-30	DY-C-50	DY-C-100
Cpacity	30T/D	50T/D	100T/D
Power	65Kw	80Kw	120Kw
Working type	Continuous
Reactor deisgn	Mutiple reactors (The quantity and size depends on the raw material condition)
Rotating	Internal rotating
Cooling system	Recycled waster cooling
Reactor material	Q245R/Q345R boiler plate
Heating method	Indireact hot air heating
Heating fuel	Fuel oil/gas
Feedstock	Waste tire/plastic/rubber
Output	Fuel oil, carbon black

Raw Materials & Oil Yields

Waste oil processing process

Project Case

Customer Feedback

Our services

Company Profile

00:00

00:45

DOING HOLDINGS CO., Ltd

Henan Doing Environmental Protection Technology Co., Ltd, the subsidiary company of Doing Holdings Co., LTD, is a comprehensive environmental equipment manufacturer integrating technological design, research and development, machine production, sales and after-sales service in one.
Our main business: solid waste and hazardous waste treatment equipment, waste tire/plastic/rubber/oil sludge/ aluminum plastic pyrolysis plant, pyrolysis oil /used oil to diesel distillation plant, and related environmental protection devices. Now, our products sells well in 90+ countries and regions around the world.
