Pedestal Rockbreaker System
Eliminate Crusher Downtime. Improve Safety. Maximize Production.
In mining and quarry operations, every minute of crusher downtime comes with a cost.
Oversize boulders, material bridging, and crusher blockages can bring an entire production line to a standstill. Traditional methods of clearing obstructions often expose personnel to unnecessary risks while reducing plant efficiency and increasing operational costs.
The pedestal rockbreaker system is engineered to solve these challenges at the source.

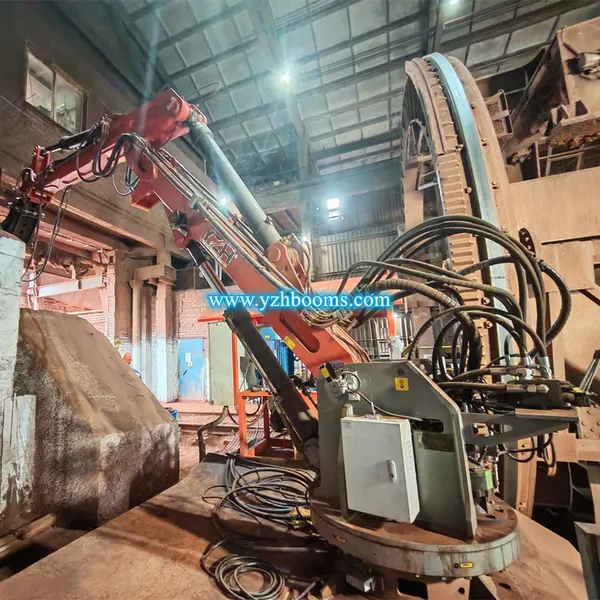

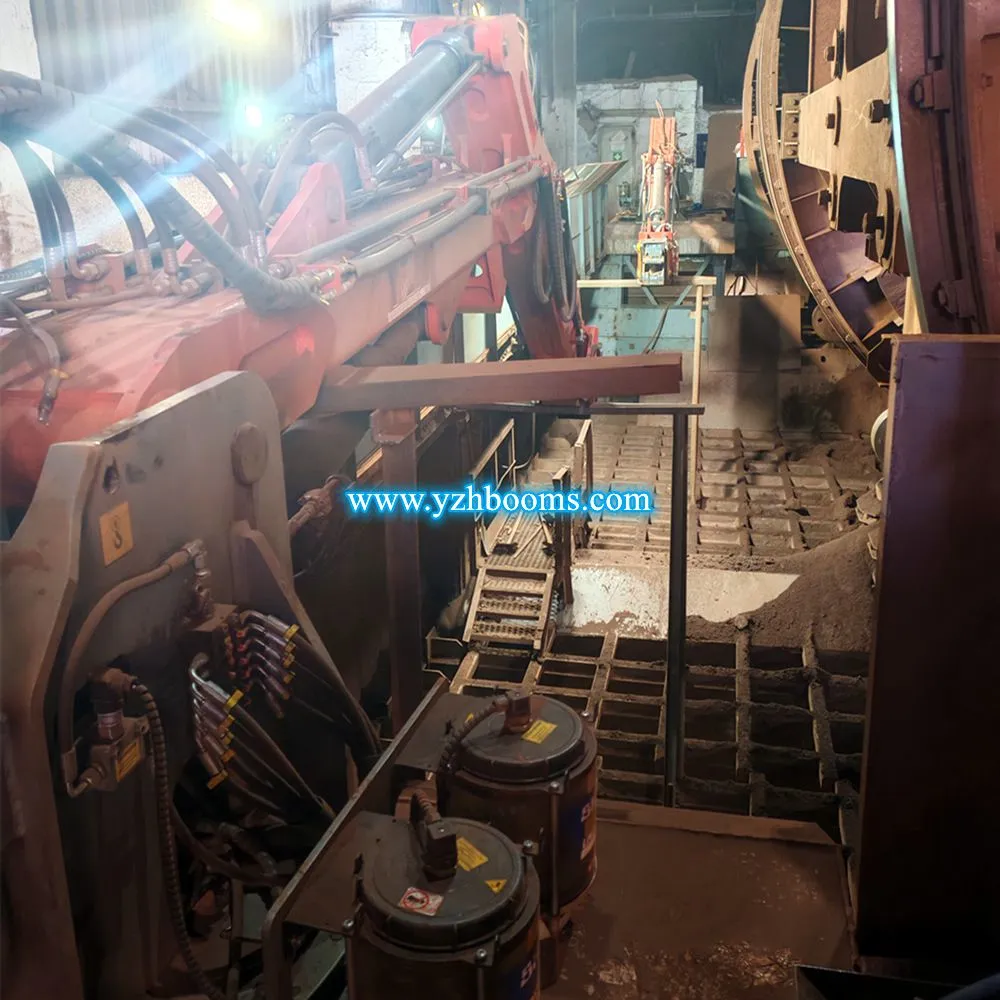

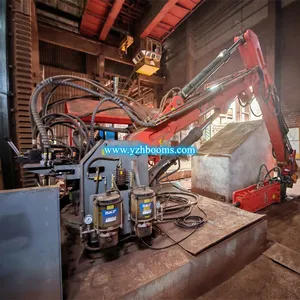

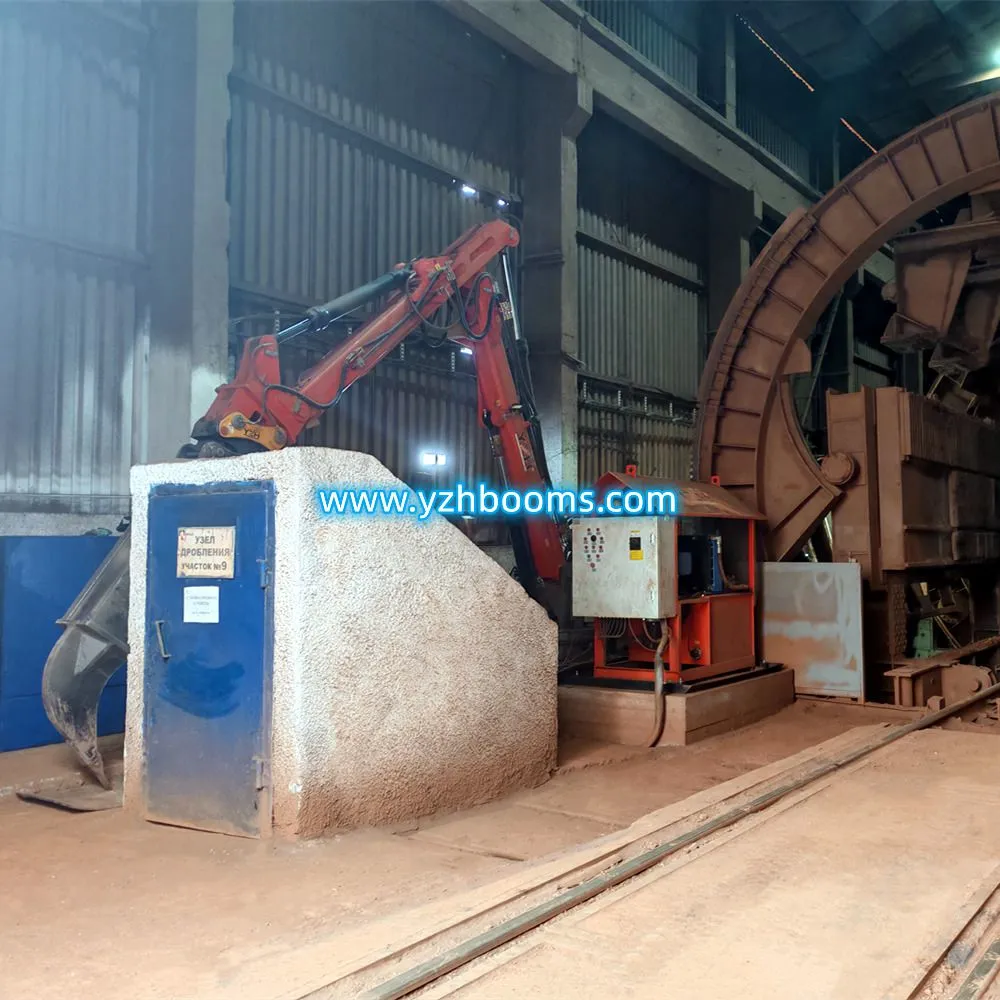

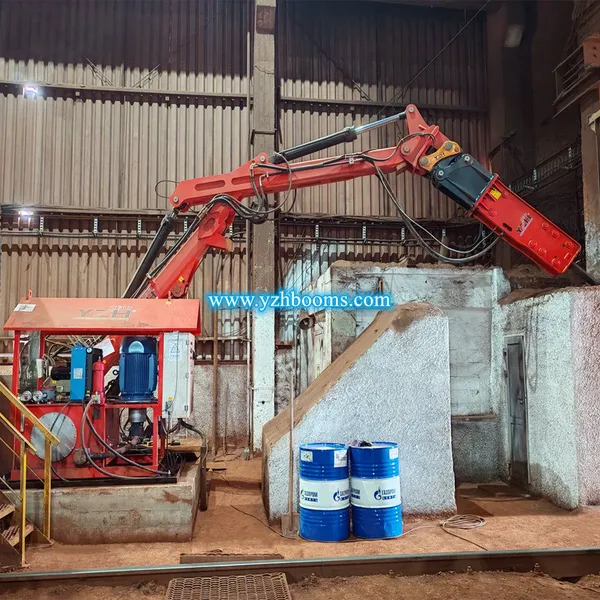

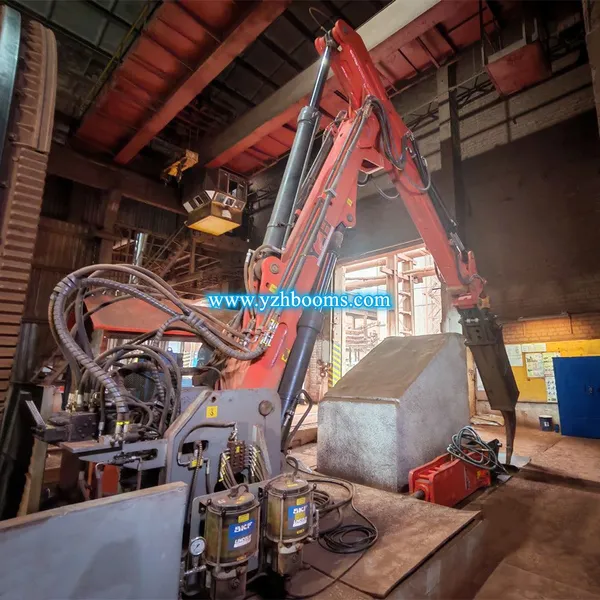

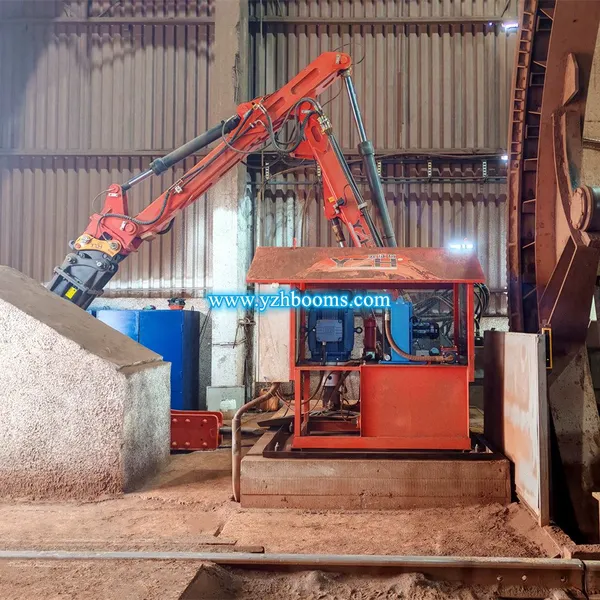

Installed directly at primary crushers, gyratory crushers, jaw crushers, grizzly stations, and ore passes, the system provides fast, precise, and safe breaking of oversize rock before it disrupts material flow. By combining a heavy-duty hydraulic boom, high-performance hydraulic breaker, intelligent control system, and reliable power unit, it transforms one of the most hazardous bottlenecks in mining into a controlled and efficient operation. Its primary role is to prevent crusher blockages, maintain continuous production, and eliminate the need for dangerous manual intervention.
Designed for Continuous Production
Production targets are not achieved by crushing more rock when everything runs smoothly.
They are achieved by minimizing the moments when production stops.
The pedestal rockbreaker system allows operators to immediately break and clear oversize material before it causes costly shutdowns. Whether dealing with hard granite, basalt, iron ore, copper ore, limestone, or recycled concrete, the system delivers the power and reach required to keep crushers operating at peak capacity. These systems are widely used around jaw crushers, gyratory crushers, impact crushers, grizzlies, and material handling stations to maintain uninterrupted material flow.
The result is simple:
• Reduced crusher stoppages
• Higher plant utilization
• Increased throughput
• Lower operating costs
• Faster return on investment
Safety Built Into Every Movement
Rock breaking around crushers has historically been one of the highest-risk tasks in mining and aggregate processing.
The pedestal rockbreaker system removes personnel from the danger zone.
Operators can safely control the boom from radio remote control, cabin control system, or remote console. Modern systems can also integrate cameras, automation functions, and remote monitoring technologies to further enhance operational safety.
By eliminating manual rock breaking and reducing exposure to unstable material, falling rock hazards, and crusher pinch points, the system helps operations achieve higher safety standards while improving productivity.
Engineered for the Toughest Environments
Mining equipment is expected to perform under extreme conditions.
Heat. Dust. Vibration. Impact loads. Continuous operation.
That is why every component of the pedestal rockbreaker system is designed for durability and long service life.
Heavy-duty structural steel construction, oversize pivot pins, reinforced boom sections, and high-reliability hydraulic components ensure dependable performance even in the most demanding applications. Many systems are specifically designed to withstand continuous heavy-duty duty cycles in mines and quarries while maintaining operational stability.
From compact mobile crusher installations to large-scale primary gyratory crushing stations, customized boom configurations are available to match each site's specific requirements.
Complete Turnkey Solution
A complete pedestal rockbreaker system typically includes:
✔ Hydraulic Breaker Boom
✔ High-Performance Hydraulic Hammer
✔ Hydraulic Power Unit (HPU)
✔ Electrical Control System
✔ Remote Control System
✔ Installation & Commissioning Support
✔ Operator Training & Technical Assistance
Every system is engineered according to crusher dimensions, feed opening size, material characteristics, and site layout to ensure full working coverage and maximum efficiency. Turnkey packages integrating boom, breaker, power unit, controls, and commissioning are commonly used across mining and quarry operations.
Typical Applications
1. Mining Operations
Primary Gyratory Crushers
Underground Ore Passes
Grizzly Stations
Material Transfer Points
2. Quarry Operations
Jaw Crushers
Impact Crushers
Aggregate Processing Plants
Limestone and Granite Quarries
3. Recycling Facilities
Concrete Recycling
Construction & Demolition Waste Processing
4. Tunneling Projects
Oversize Rock Reduction
Restricted Access Breaking Operations
These applications are among the most common deployment scenarios for pedestal rockbreaker system across mining, quarrying, tunneling, and recycling industries.
Keep Material Moving. Keep Production Running.
A crusher that stops producing is not simply an equipment issue—it is a production issue.
The pedestal rockbreaker system provides the reach, power, and reliability required to eliminate blockages quickly, protect personnel, and maximize plant performance.
When uptime matters, every second counts.
Invest in a solution designed to keep your crushers running, your operators safe, and your production targets within reach.
Contact us today to discuss a customized pedestal rockbreaker system solution for your operation.
| Model No. | Unit | BHC630 |
| Boom weight | kg | 6510 |
| Max. horizontal working radius | mm | 9120 |
| Max. vertical working radius | mm | 7100 |
| Min. vertical working radius | mm | 2705 |
| Max. working depth | mm | 6360 |
| Rotation | ° | 360 |
