Brand Name MEIHUA
Place of Origin China
Model Number HK2512RGTD
Usage Indoor
Pixels 10mm
Display Function Graphics
Tube Chip Color Full Color

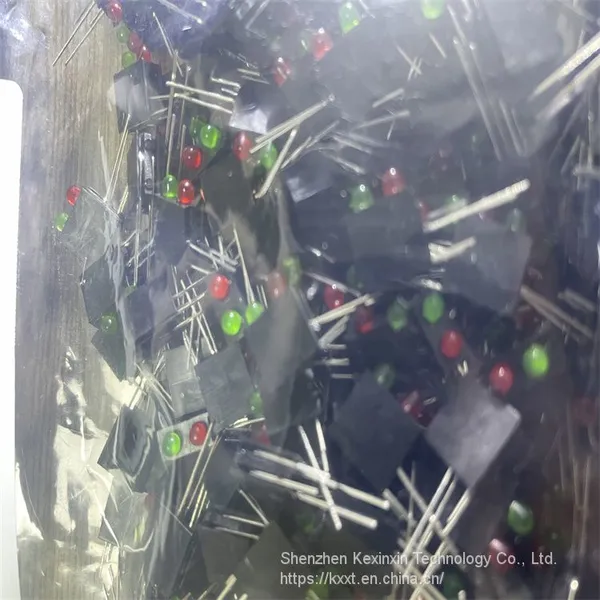

MHK2512RGTD


Luminous color: red light, plain green/yellow green lens color: foggy red, foggy green main wavelength: 568nm; 628nm Power: 78mW Luminous angle: 80 °; 120 ° C working temperature: -25 ℃~+85 ℃ LED cargo kit housing dual LED



Lianyungang Meihua Electronics Technology Co.,Ltd

 FEATURES


High intensity and reliability


LOW POWER CONSUMPTION


IC compatible, Easy assembly


LONG LIFE SOLID STATE RELIABILITY


Pb FREE PRODUCTS(Compliant with EU’s RoHS.)

.

 Description


5mm diameter package

Emitted color：

Yellow Green

 R:Red


 Chips materials：

1. G: GaAlInP/GaAs

2. R: GaAlInP/GaAs

 3.

Lens Type

 1. Green Diffused

2. Red Diffused

3


 Absolute Maximum Ratings(Ta=25℃) LED1


Parameter


Symbol

Rating

R G Unit


Power Dissipation Per Segment PAD 78/78 mW


Peak Forward Current Per Chip

（Duty=0.1,1KHZ）

IPF 120/120 mA


Average Forward Current

IF 30 mA


Reverse Voltage VR 5 V


Operating Temperature Range TOPR -25℃ to 85℃


Storage Temperature Range TSTG -40℃ to 85℃

 Optical-Electrical Characteristic(Ta=25℃)

Notes:

1. ±10%。 Tolerance of Luminous Intensity ±10%.

2. ±0.05V。Tolerance of Forward Voltage : ±0.05V.


Symbol


Parameter


Test Condition


Min


Typ


Max


Unit

VF

Forward Voltage

R:IF = 5mA - 2.0 2.6

V

G:IF = 5mA - 2.2 2.6

IR

Reverse Current

R:VR=5V - - 100

uA

G:VR=5V - - 100

λp

Peak Wavelength

R:IF = 5mA - 636 - nm

G:IF = 5mA - 574 -

λd

Dominant Wavelength

R:IF = 5mA - 628 - nm

G:IF = 5mA - 568 -

2θ1/2


Viewing Angle

R:IF = 5mA - 80 -

deg G:IF = 5mA - 120 -

Iv

Luminous Intensity

R:IF = 5mA - 20 - mcd
