Product Details
| Brand Name | DENOH | Place of Origin | China | |
| Model Number | HW230 | Certification | ISO9001,ISO14001,ISO45001 | |
| After-sales Service Provided | Engineers available to service machinery overseas | Warranty | 1 Year | |
| Weight | 98kg | Usage | Pipeline welding | |
| Condition | New | Dimensions | 707*530*560MM | |
| Tube Diameter | all |
Product Description

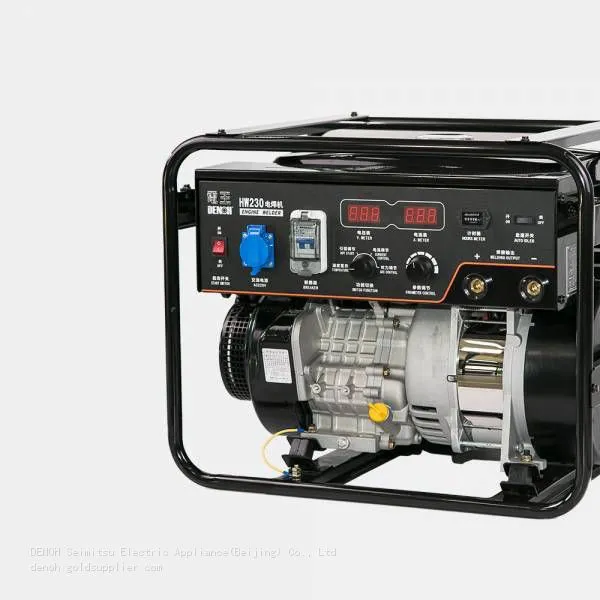

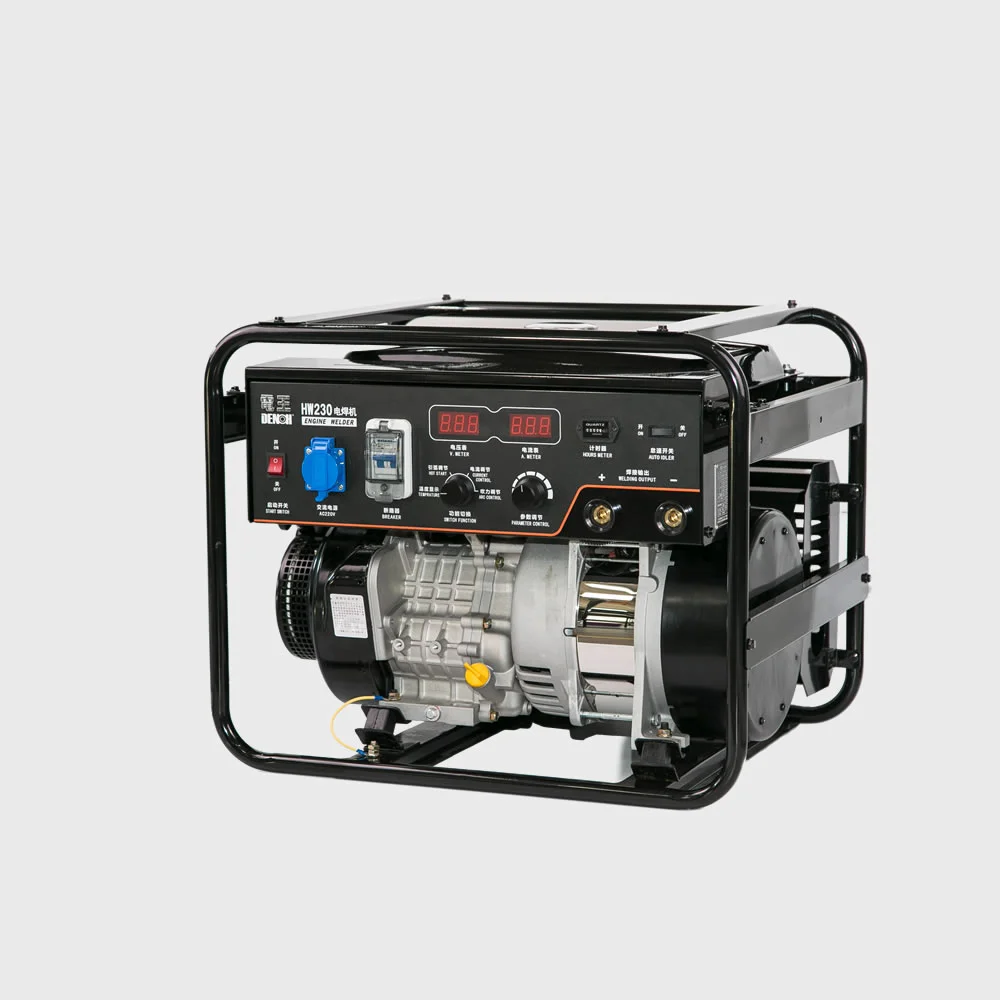

HW230 Power generator engine welding machine
1. Adopting digital preset, pre adjustment, and display functions, easy to operate.
2. The arc current and blowing force current can be adjusted to achieve stable welding with low current
3. Fully digital IGBT chopping control technology, stable arc control, good welding forming, and low spatter.
4. Designed for outdoor construction environments, integrating power generation and welding for heat dissipation, without the need for electronic fans.
5. The generator simultaneously outputs two welding windings and one auxiliary electrical winding, which are independent of each other and do not affect each other.
6. Auxiliary AC220V/2kW /50Hz output, can be equipped with tools such as angle grinder, grinding wheel, and lighting during welding work.
7. Suitable for various types of welding rods, it can perform excellent all position welding with cellulose electrodes, low hydrogen electrodes, and simple argon arc welding
8. Brushless and inducer power generation technology
9. The power generation efficiency is high, and the welding machine has strong continuous operation ability, which can achieve 24-hour continuous operation without stopping the machine.
Model No.: HW 230 | Insulation grade:H | ||
Form.: Digital brushless | Protection grade:IP23 | ||
Welding machine | Rated power | kW | 5.6 |
Rated current | A | 200 | |
Rated voltage | V | 28 | |
Unload voltage | V | 90 | |
Rated usage rate | % | 50 | |
φmm | 2.0-5.0 | ||
Current adjustment range | A | 40-230 | |
Rated rotating speed | RPM | 3600 | |
Electric generator | Rated power | kVA | 2 |
Rated voltage | V(AC) | 220 | |
Rated current | A | 9.1 | |
Phase number | Single-phase AC | ||
Power factor | % | 80 | |
frequency | Hz | 50 | |
Rated rotating speed | rpm | 3600 | |
Working status | continuous | ||
Drive method | Direct coupling | ||
Engine | Name | GT1300 | |
Form | 4-stroke 2-cylinder | ||
Air displacement | L | 0.391 | |
Max output power | kW(HP) | 9.6(13) | |
Unload rotating speed | rpm | 3800 | |
Rated rotation | rpm | 3580 | |
Rated output power | kW | 16.8 | |
Start mode | Hand start | ||
fuel | Gasline | ||
Cooling method | Air cooling | ||
Lubricant quantity | L | 0.74 | |
Other | Fuel tank capacitance | L | 12 |
Battery capcitance | 12V-36Ah | ||
Dimension(L*W*H) | mm | 707*530*560 | |
Net weigh | kg | 98 | |
