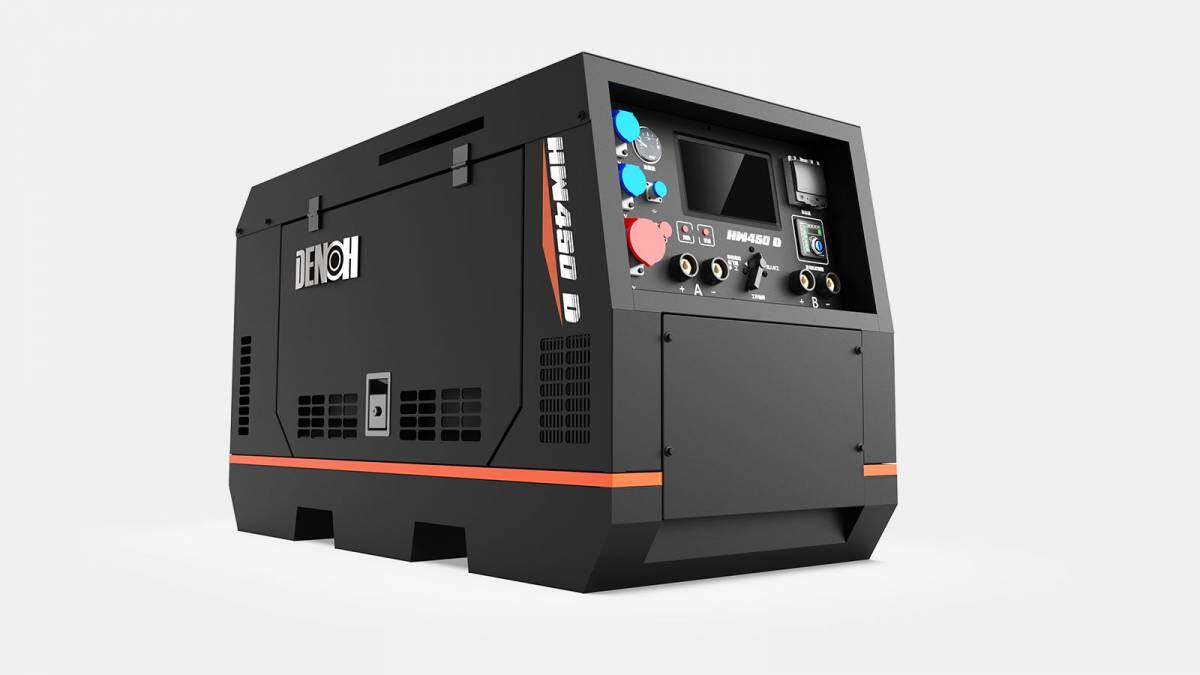

Help CenterDENOH Gas and Oil Pipeline Welder,Brushless Inducer Power Generation Technology,Engine Welding Machine HW450D Double Handle Digital Function Engine Welding Machine,Pipeline Welder,
Related Products
-
Movable Power Station China Generator Welder Diesel Pipeline WelderNegotiableMOQ: 1 Unit -
Hot Selling Welding Machine Saving EnergyNegotiableMOQ: 1 Unit
-
Diesel Welding Machine Welder Generator Portable Equipment For EngineNegotiableMOQ: 1 Unit
-
Having Excellent Fuel Saving Skills Welding Machine Denoh Engine WelderNegotiableMOQ: 1 Unit
-
Hw1000 Equipment For Engine Welding Generator PriceNegotiableMOQ: 1 Unit
Simple instruction:
Welding and power generator integrated machine.Don’t need Engineering vehicle power station.
Easy to move .It is very suitable for matching our single torch automatic welding trolley and dual torch automatic welding trolley.Also can match wire feeder to realize semi-auto welding and all kinds of manual welding
Adavantages:
1.Dual welding torch engine welding machine with digital function, the power supply has multi-kind of output charateristic
2.Cooperate with the DW series automatic welding trolley to get extremely optimized all position pipeline welding parameters and high-quality welding effect.
3.Can meet:
Single torch flux core welding;
Single torch pulse welding;
Single torch low splashing automatic root welding output;
Dual torch argon arc welding;
4.The main circuit topology adopts a Buck (chopping) topology structure
5.Adopting double closed-loop patented technology
6.Double torch current can be combined to single torch output, to meet the requirements of automatic welding;
7.Can meet usage of single/Dual torch argon arc welding,1set single torch automatic external welding and 15kW AC electric.
8.Adopting low spashing wave shape control technology,small splashing,stable weldpool,good weld consistency.
9.Adaptive arc length variation.
Insulation grade:H | |||
Form.: Digital brushless | Protection grade:IP23 | ||
Electric welding machine | Droop characteristics (CC) | ||
Rated power | kw | 12.4 | |
Rated current (Single/Dual) | A | 360/200 | |
Rated voltage (Single/dual) | V | 34.4/28 | |
Unload voltage(Single/dual) | V | 85 | |
Rated usage rate % | V | 50 | |
Current adjustment range(Single/Dual) | A | 6-400/40-200 | |
Constant characteristics(CV) | |||
Unload voltage | V | 85 | |
Rated power | kw | 9.6 | |
Rated current | A | 320 | |
Voltage ajustment scope | V | 15-35 | |
Rated usage rate | % | 80 | |
Electric generator | Rated power | kw | 15 |
Rated voltage | V(AC) | 400 | |
Rated current | A | 22.7 | |
Phase number | 3-phase 4-wire | ||
Power factor | % | 0.8 | |
frequency | Hz | 50 | |
Incentive methods | Brushlesss excitation | ||
Drive | Direct coupling | ||
Emission stage | Non road Phase III | ||
Form | 4-stroke 4-cylinder | ||
Air displacement | L | 1.372 | |
Rated output power | kW | 22 | |
Rated rotation | rpm | 3000 | |
Start mode | Electric start 12V | ||
fuel | light diesel oil | ||
Cooling mode | water | ||
Other | Fuel tank capacitance | L | 75 |
Battery Capcitance | 12V-45An | ||
Dimension(L*W*H) | mm | 1530*710*865 | |
Net weigh | kg | 550 | |
noise | dB | 75(7M) | |
