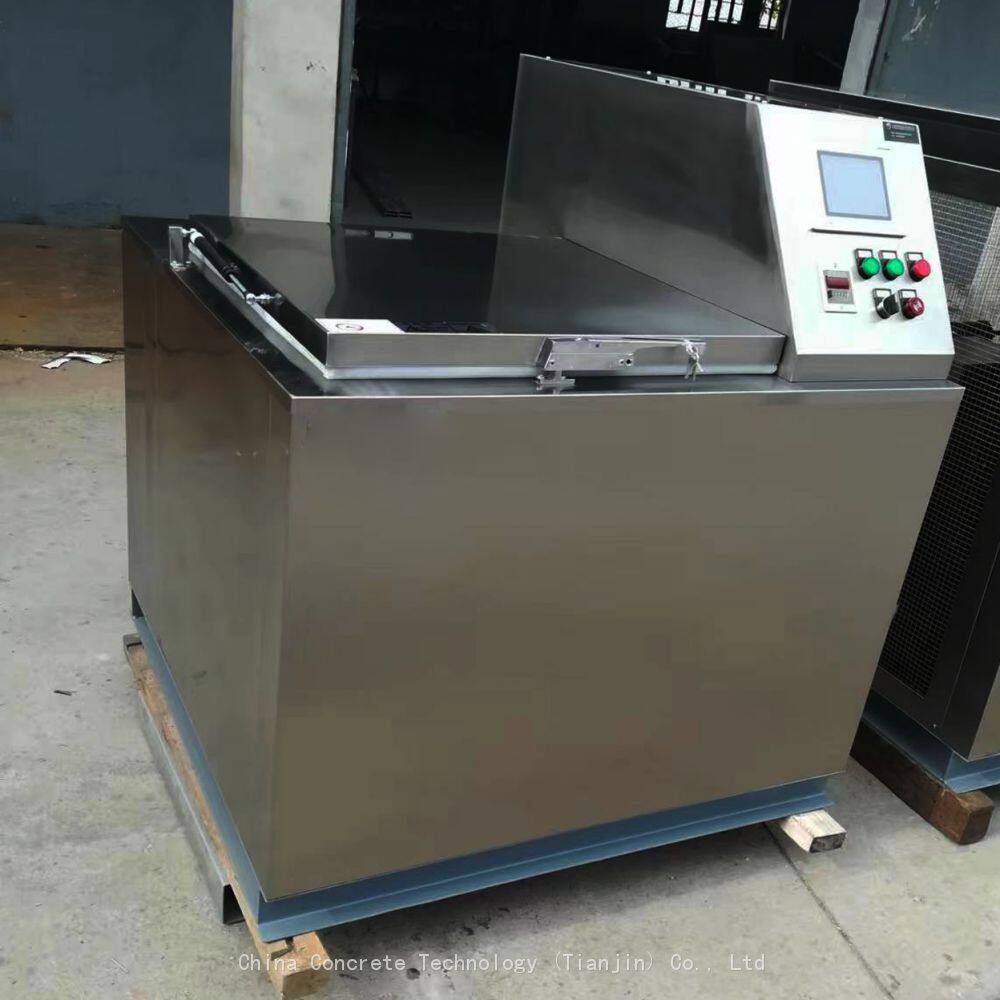

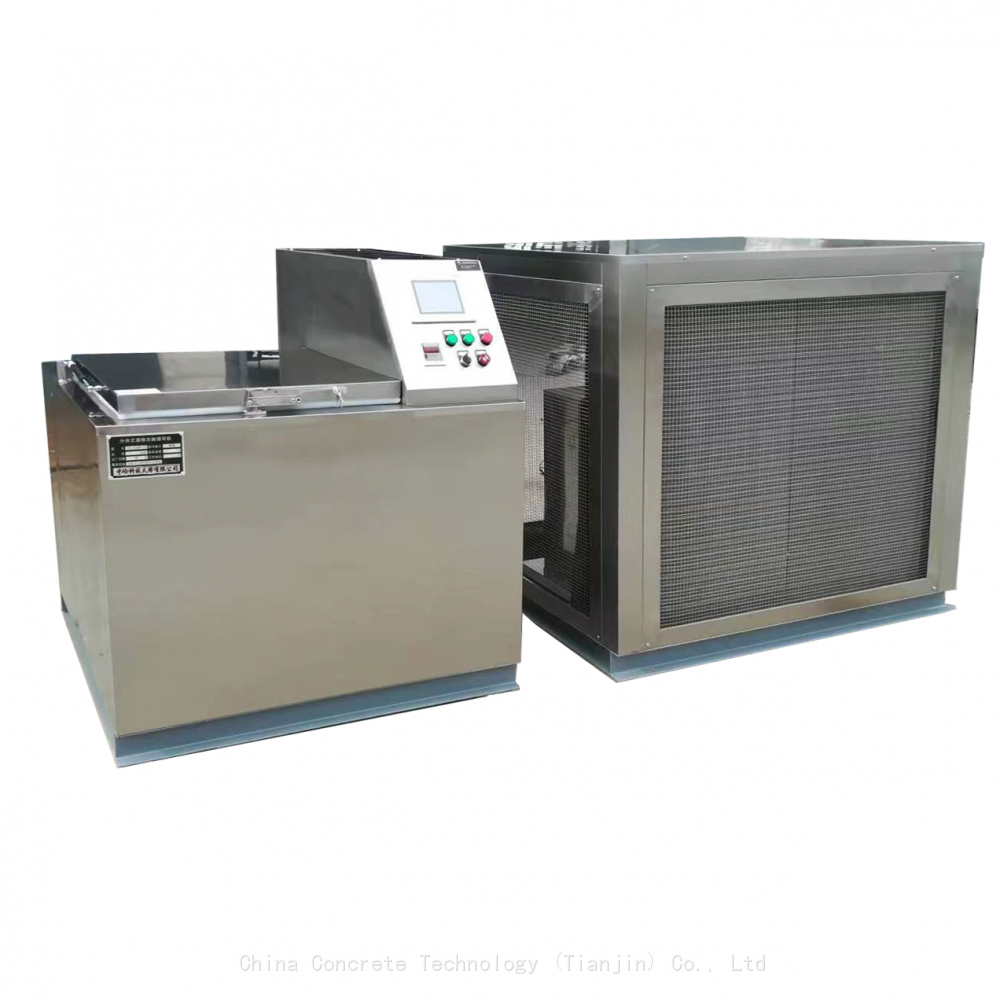

Help CenterUltra-low Temperature Concrete Freeze-thaw Testing Machine HDC Type Made in China
Related Products
-
Concrete Sulfate Dry Wet Cycle Testing Machine LSB Type Made in ChinaNegotiableMOQ: 1 Pack -
Concrete Carbonation Test Box HTX Type Made in ChinaNegotiableMOQ: 1 Pack
-
Programmable Temperature and Humidity Test Box HCB Type Made in ChinaNegotiableMOQ: 1 Pack
-
Intelligent Concrete Creep Tester XB50 Made in ChinaNegotiableMOQ: 1 Pack
-
Non-contact Mechanical Displacement Deformation Measurement and Control System LES Type Made in ChinaNegotiableMOQ: 1 Pack
Product Usage
Suitable for ultra-low temperature testing or ultra-low temperature freeze-thaw testing of mortar, ordinary concrete, and high-performance concrete, simulating the frost resistance performance of concrete under extremely harsh conditions.
technical parameter
1. Test method: water freezing and thawing method;
2. ※ Minimum temperature inside the box: -70 ℃;
3. Center temperature of the specimen: -60 ℃;
4. Melting temperature: 20 ℃;
5. Equipment accuracy: 0.1 ℃;
6. Temperature uniformity: less than 1 ℃;
7. Maximum specimen capacity: 15 pieces of 100 * 100 * 400mm or 45 pieces of 100 * 100 * 100mm;
8. There are three options for starting after an unexpected power outage: cold start, hot start, and stop;
9. ※ The control adopts two optional modes: program control and fixed value control, which facilitates the comparison of scientific research test results;
10. ※ The temperature and humidity are controlled by advanced cold and hot balance method, which can ensure insulation and no fluctuation in humidity;
11. Equipment weight: approximately 300 kilograms.
Note: Temperature, size and other parameters can be customized according to specific customer needs.
