TM-Z2A Automatic Membrane Switch Screen Printing Set

Name: TM-Z2A Automatic Membrane Switch Screen Printing Set
Brand: Tamprinter
Price: USD $1 - 800 / Set

FOB Price

USD $1 - $800 / Set

1 Set(Min.Order)

Supply Ability 1000 Set / Sets per Month
Port Shenzhen
Payment Terms:T/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	Tamprinter	Model Number:	TM-Z2A	Certification:	CE Certification
After-sales Service Provided:	Overseas third-party support available	Warranty:	1 Year	Usage:	Other, Bill Printer, Card Printer, Cloths Printer, Label Printer, Paper Printer, Tube Printer, Bill Printer, Card Printer, Cloths Printer, Label Printer, Paper Printer, Tube Printer, paper printer
Condition:	New	Automatic Grade:	Automatic

Packaging Details

this cheap under price screen printer will be packaged by wooden box/iron box/carton/plywood as required

Product Description

TM-Z2A Automatic Membrane Switch Screen Printing Set

Plate Type: Screen Printer

Condition: New

Place of Origin: Shenzhen, China (Mainland)

Brand Name: Tamprinter

Usage: membrane switch, sheet metal, plastic etc.

Automatic Grade: Fully Automatic

Color & Page: Single Color

Certification: CE

Warranty: 1.5year

After-sales Service Provided:

Engineers available to service machinery overseas

Packaging: plywood

Delivery Detail: Within 30 days after order confirmation

Video Link:

Precision membrane switch silk screen printing line print plastic film test video：

https://youtu.be/ziszT4SvOAA

https://youtu.be/VIo4ylngVFU

/v_show/id_XMTg1ODIwMzY1Ng==.html

Singapore membrane switch production plant：

https://youtu.be/BKt_nljanyE

Technical parameters:

Item	Description

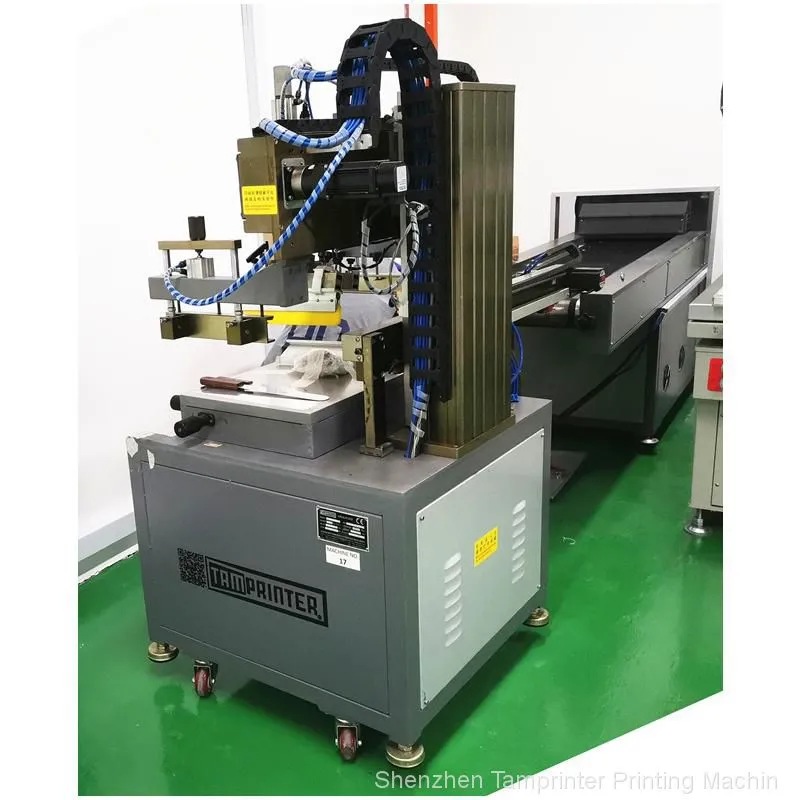

TM-3045Z Vertical screen printer with robot arm	Worktable area: 400X450mm Max printing area: 300X450mm Max screen fame size : 550X720mm Substrate thickness (mm):less than 40mm Printing speed (pcs/h):900 Working pressure（Mpa):4.0-6.0 Machine size(mm): 980X820X1580mm 2CBM weight:280kg Rated voltage(P/V/Hz) 3/380/50 Source power: 380V/1.5kw Free fitting clamp 300mm--1pcs，tinge 320mm---1pcs； clamp 450--1pcs，tinge 470mm--1pcs. Tool box
TM-UV400-L varnish Machine	Conveyorbelt width(mm) 380 Effective range (mm) 400 Max thickness of cured (mm) 40 Conveyor speed (m) 2~20 Power(P/V/Hz) 3/380/50 UV lamp（KW/2pcs）5.6 Driving power（W） 60 Total power（KW） 13 Dimension（LWH） 42007001200 5.2CBM Weight(kg) 350 Free fitting - 1 X speed regulator
Collecting device

Performance & Features

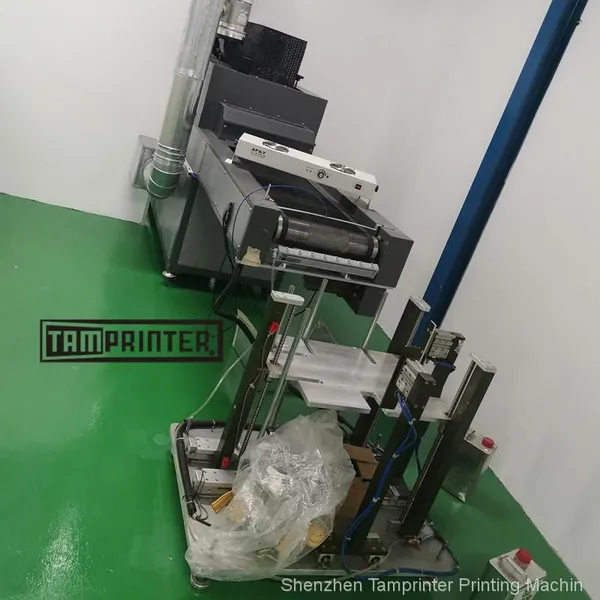

1. This line is composed of vertical screen printer, UV dryer and collecting device.

2. It is a fully automatic production line which takes off material automatically.Screen Printing Machine with Automatic Pick Up system to uv tunnel dryer.

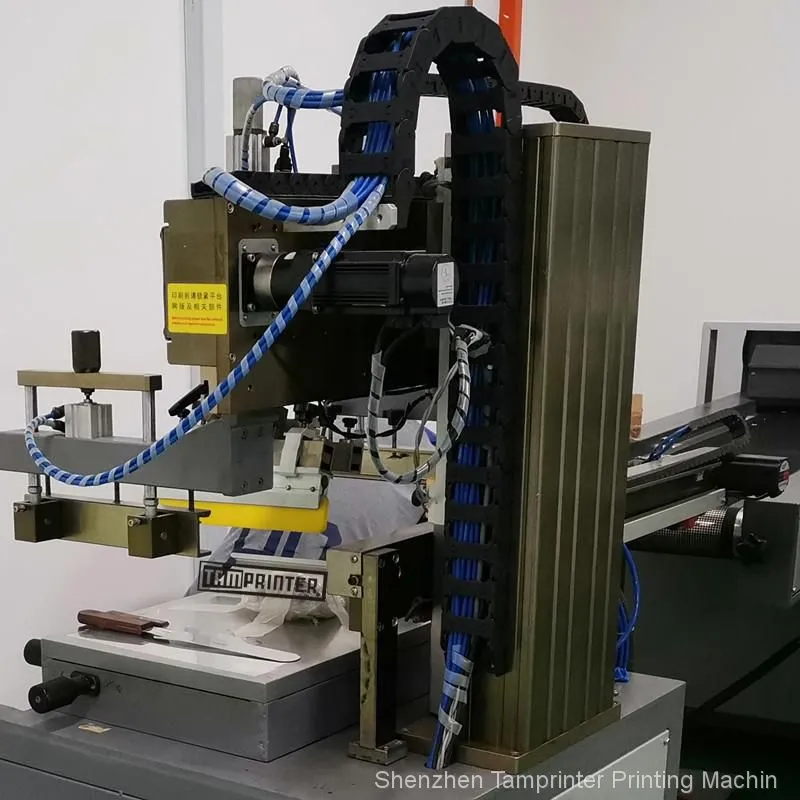

3. After printing finished, robot arm will suck and pull out the printing material, then send it to next working procedure (drying and products collecting).Automatic stacking to collect products.

4. It can not only save human labor, but also improve working efficiency of printing machines.

5. It applies to printing on membrane switches, sheet metal, plastic, plastic film etc.can printing Water Transfer Decals .

6. Anti-drip device,

7. printing very good quality half-tones, textures like video showed.

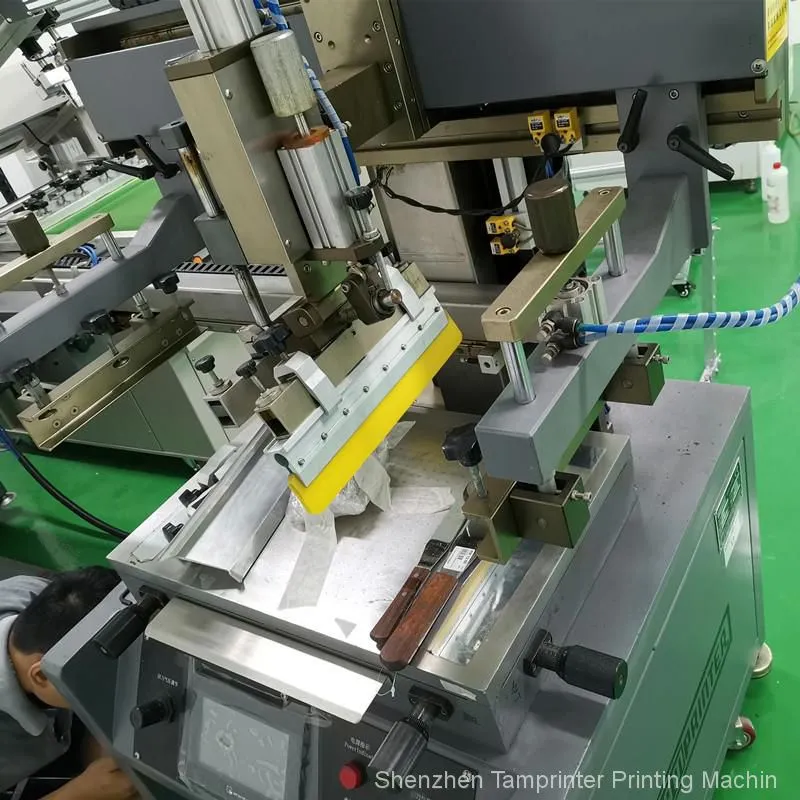

8. The squeegee pressure should be very good and consistent.

9. option Static elimination device

10. The main parts of the machine very good quality.

Tamprinter Printing Machinery is one of the largest fully automatic membrane switch screen printing set manufacturers and suppliers in China.when you placing an order, equipped with a professional factory, we can offer you fully automatic membrane switch screen printing set with high precision and reliable performance in short time. Welcome to buy our high quality equipment and experience our customized service.
