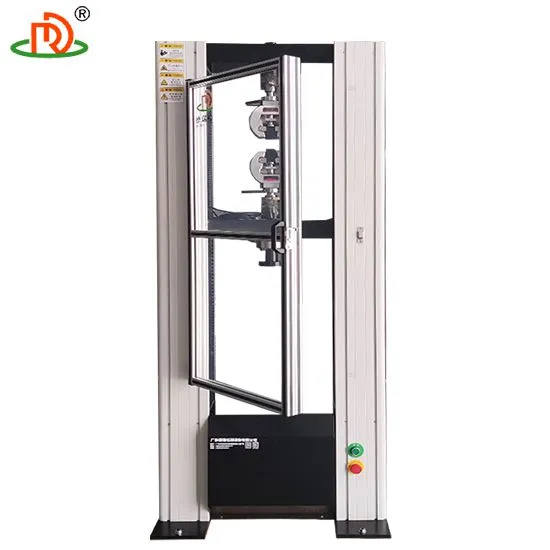

Computer Control Tensile Test Equipment Universal Tensile Strength Testing Machine
- 10 Set / Sets per Month
- shenzhen
- L/C
- 15 days
- Computer Control Peel Force Universal Tensile Strength Test Equipment
- 100kn Computer Electronic Laboratory Universal Testing Machine And Pressure Material Strength Tension Test Machine
- Laboratory packaging drop Double Wing Drop Test Machine
- Computer servo control carton compression testing machine
- Paper Package Clamp Compression Machine Cardboard Clamp Force Testing Equipment
- Electric Vehicle Battery Pack Crush Nail Penetration Testing Equipment
Product Details
Brand Name: | Derui | Place of Origin: | China | Model Number: | DR-L204 |
Power: | Other | Usage: | Other |
Product Description
APPLICATIONS
Deformation under defined load: Test deformation under defined load of tested sample
Load under defined deformation: Test load under defined deformation of tested sample
Software can issue report with results for max. force, elongation, tensile strength, peel strength, tear strength, compression strength, etc.
This machine can do different test as per customer requirement such as peel test, tear test, compression test, bend test with different clamps.
TEST STDANARDS
Tensile Test: ASTM D882 ASTM D 638 / ISO 527-1/2
Bend Test ISO-178 / ASTM D 790
Tear Test:ASTM D 624
Peel Test : ASTM D 3330
Compression Test : ASTM D 659
others...
DESCRIPTION
universal test equipment with 10T max force can do tensile test, tear test, peel test, bond test with different clamps for wire,metal,plastic,rubber and other kind of materials.
This universal test equipment uses the motor to drive screw to move fixtures. Fix sample between upper and lower fixture and pull sample by the upper fixture upward with specified speed. The load cell connecting with upper fixture will sense the force and then convert it into voltage sign to the display screen. Force value will be displayed automatically on the screen.
SPECIFICATIONS
Item | Description |
Max. Force | 10T (100KN) |
Load cell | Germany brand load cell for high accuracy |
Control system | PC with windows 7 system |
Motor | Panasonic servo motor w/ DC variable speed drive system, high-precision mechanical ball screw rod |
Force reading | kgf, Ibf, N, KN, T etc |
Stoke | 1100mm including fixture |
Load cell Resolution | 1/250,000 |
Load Precision | within ±0.5% |
Test speed | 0.01~300mm/min (adjustable) |
Software | TM 2101 |
Curves display | Load- elongation, Elongation-time, Time-elongation, Stress-strain |
Data display | Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc… |
Safety features | E-Stop Over-load protection Upper and lower limit switches Load sensor with automatic retreat |
