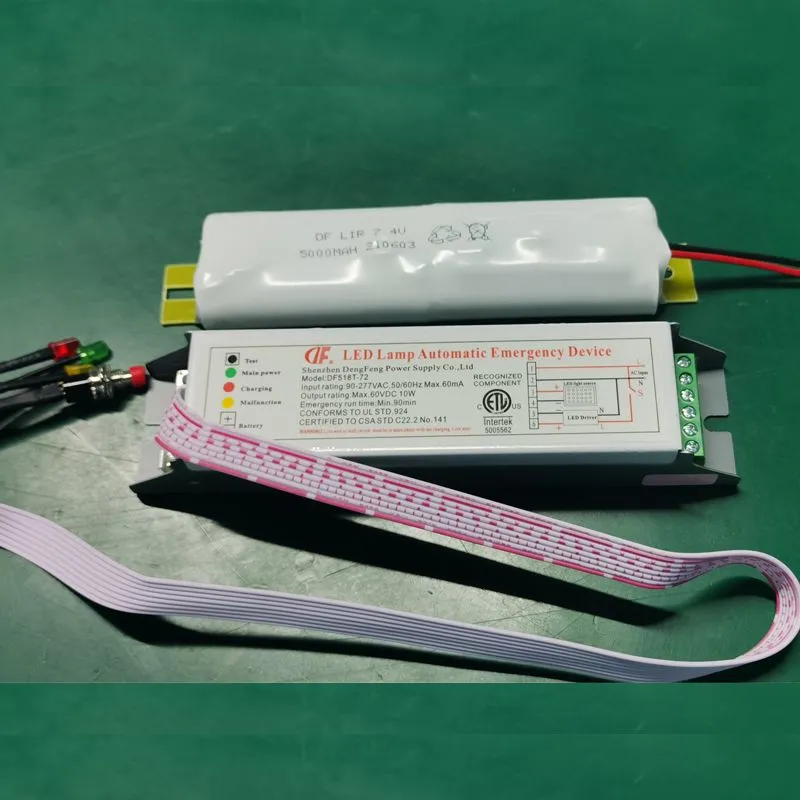

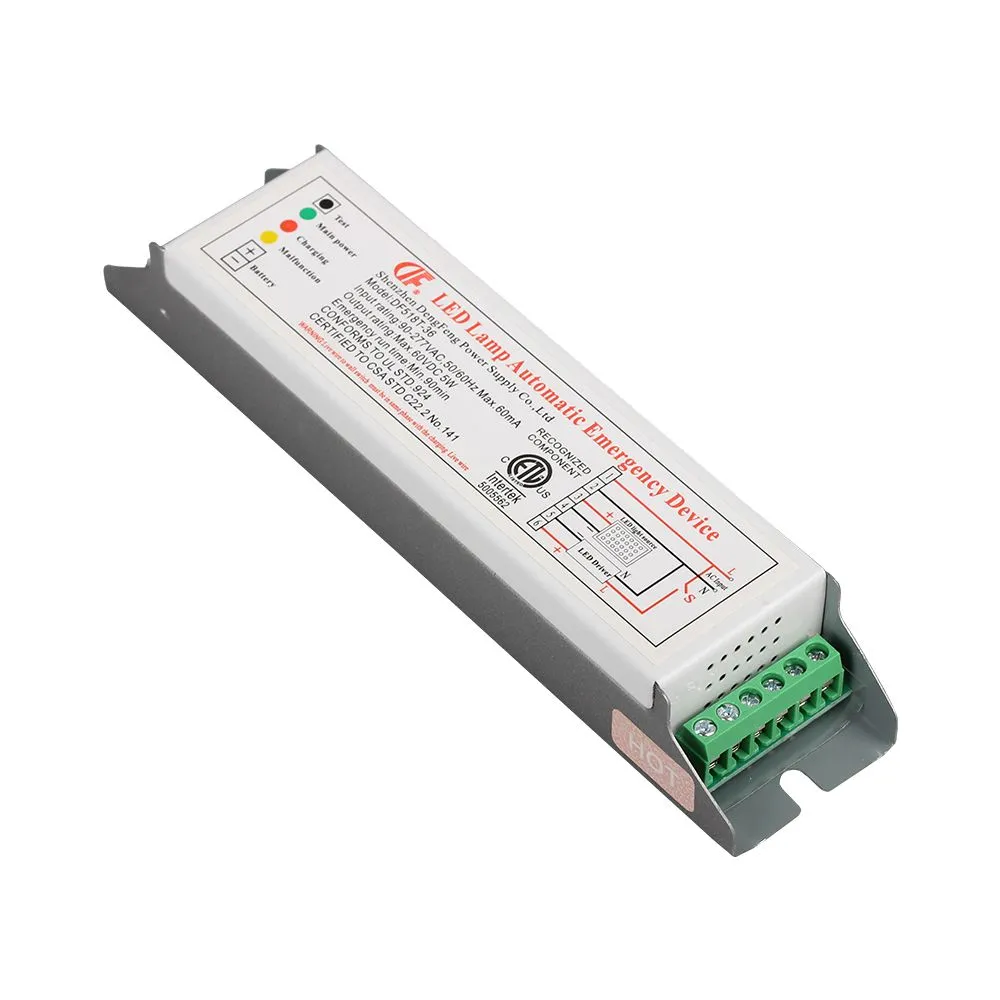

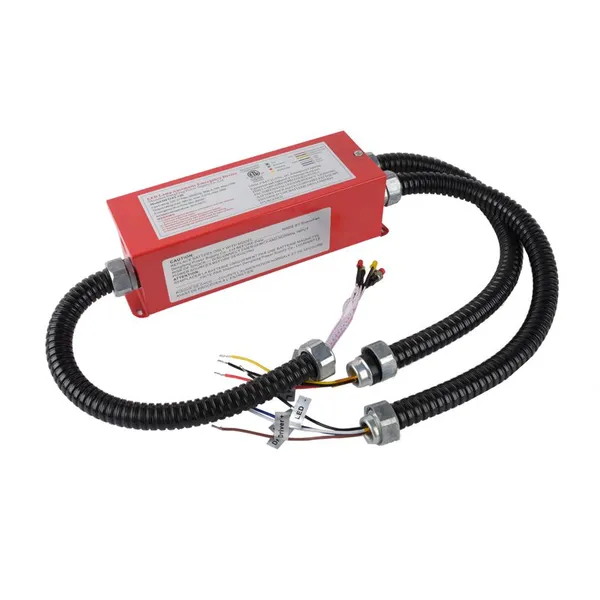

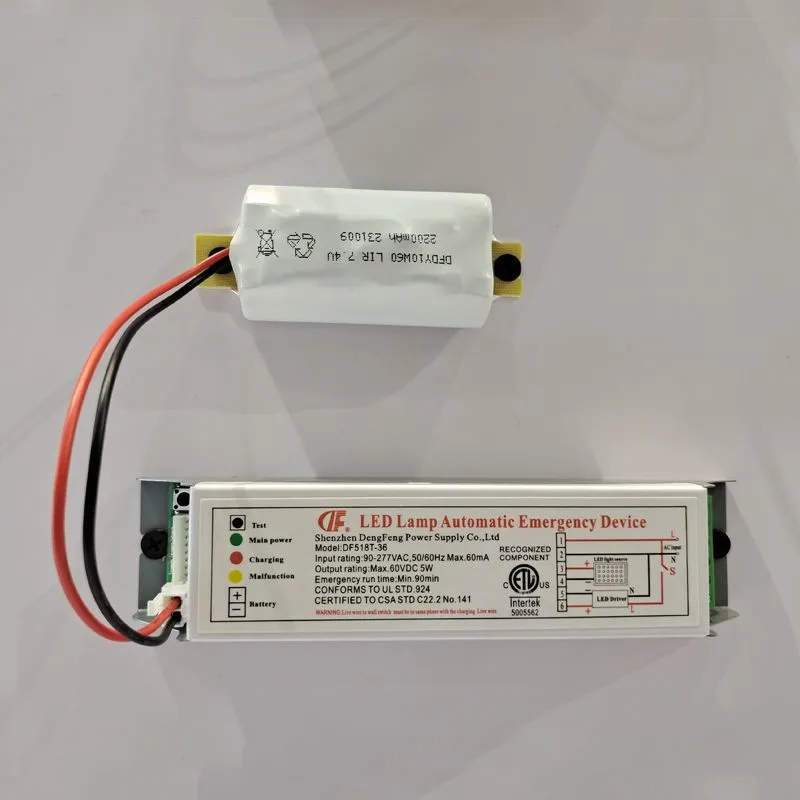

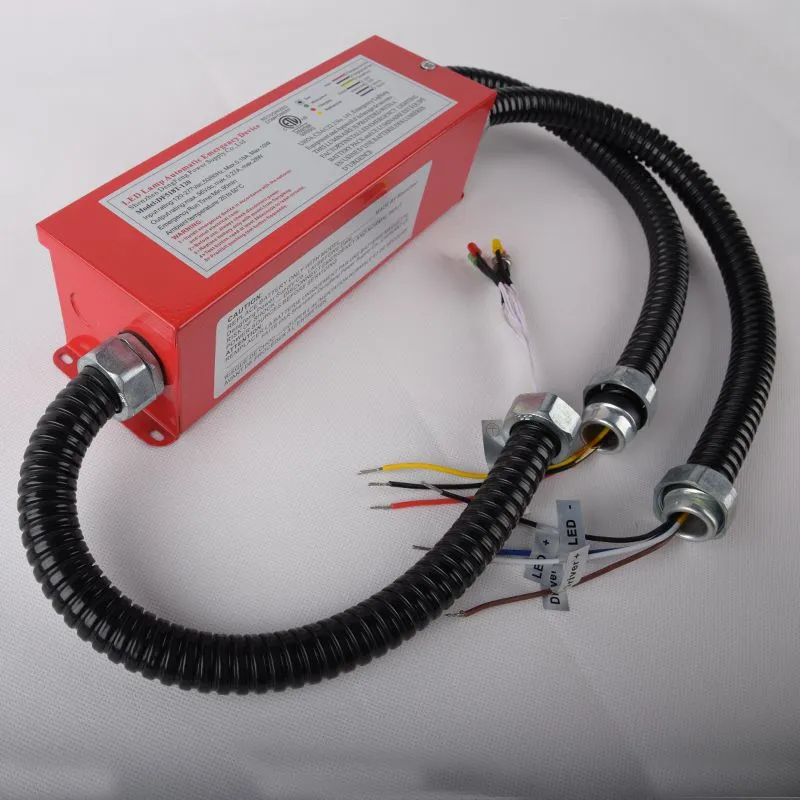

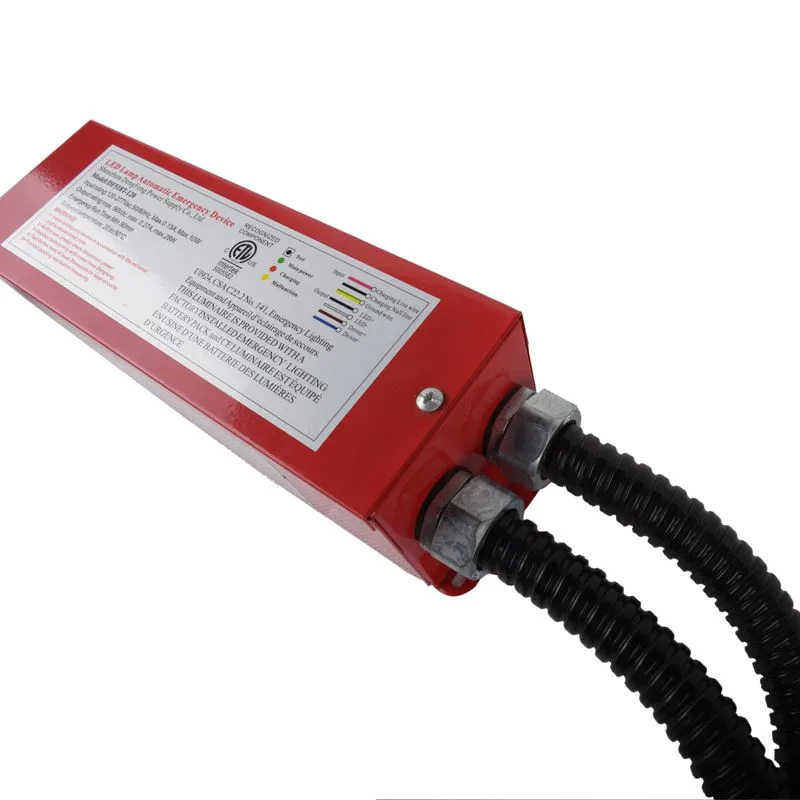

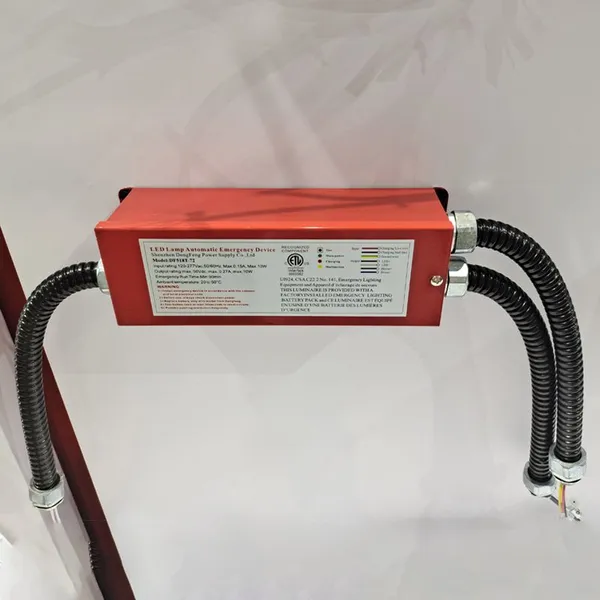

ETL LED Emergency Pack 5-28W 3 Hours Emergency Backup Driver
DF-ETL518T is suitable for 200W downlights, ceiling lights, three-proof lights, panel lights and other emergency lighting,When there is electricity, it does not affect the lighting, and reduces the power to 5~28W emergency lighting after power failure,International line, three-color indicator light, test button,No-load protection, constant current limited voltage charging, charge and discharge dual protection board to ensure the safe use of lithium battery pack,Connect the circuit in strict accordance with the wiring diagram, and do not open the cover at will;
The user can regularly check the discharge of the inverter, that is, cut off the mains power supply, and use the battery discharge lighting to automatically terminate.
Technical parameters:
Input: AC110-277V/50HZ-60HZ
Output: 3V-60V
Power: 5W-28W, or custom output power
Emergency time: 1-3 hours, or according to customer requirements;
Charging current: 150mA
Overall emergency power supply size/length * width * thickness =260*60*60mm;
Other detailed parameters of the overall emergency power box are subject to the specifications.
Authentication: the ETL/CE/FCC/ROHS/MSDS/PI967, etc.
| Support LED Power Rangement | Max.200W |
| Emergency Output Power | 5~28W |
| Input Voltage | AC110~277V, 50~60HZ |
| Battery Voltage | 3.7V/7.4V/11.1V |
| Emergency Operation Duration | >90Minutes With Customized |
| Working Environment | -10~50℃,65%±20% RH |
| Power Factor | >0.9 |
| Inverter Size | 260*60*60mm |
