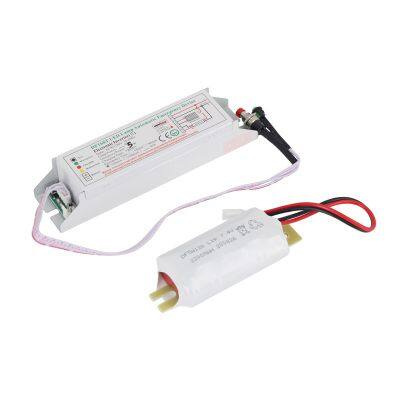

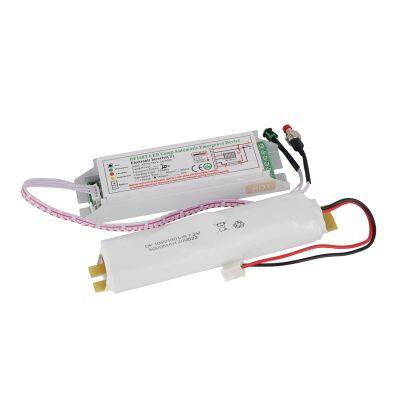

Outdoor Emergency Power Supply for LED Panel Lights Downlight

outdoor emergency power supply for LED panel lights downlight

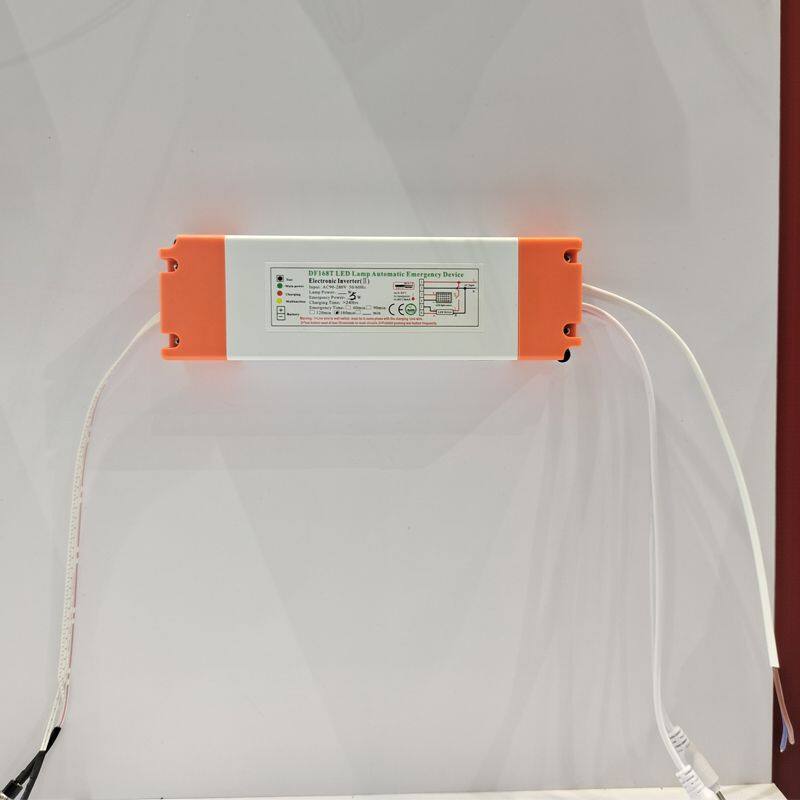

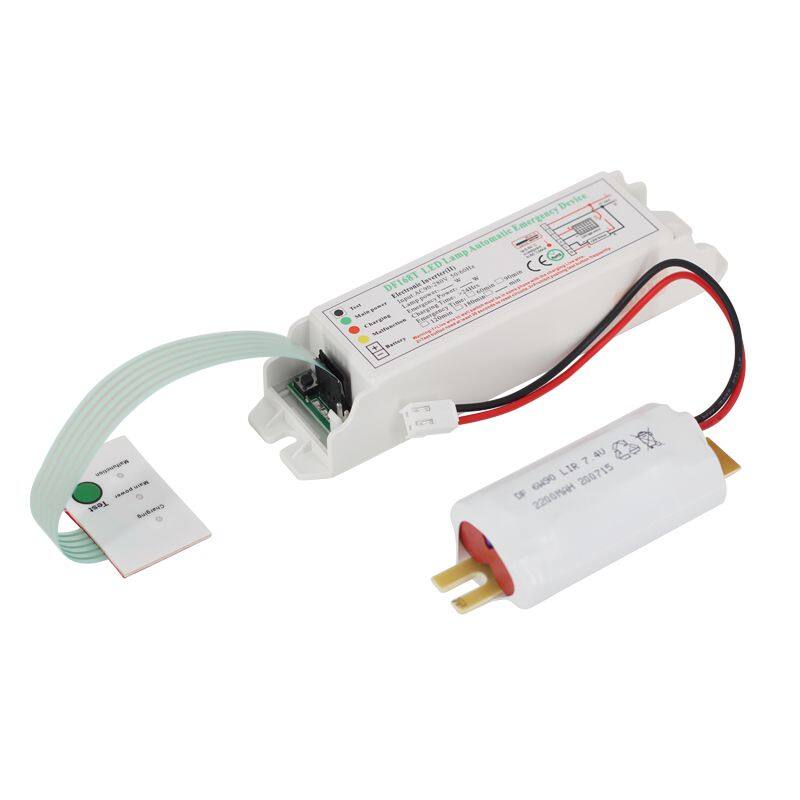

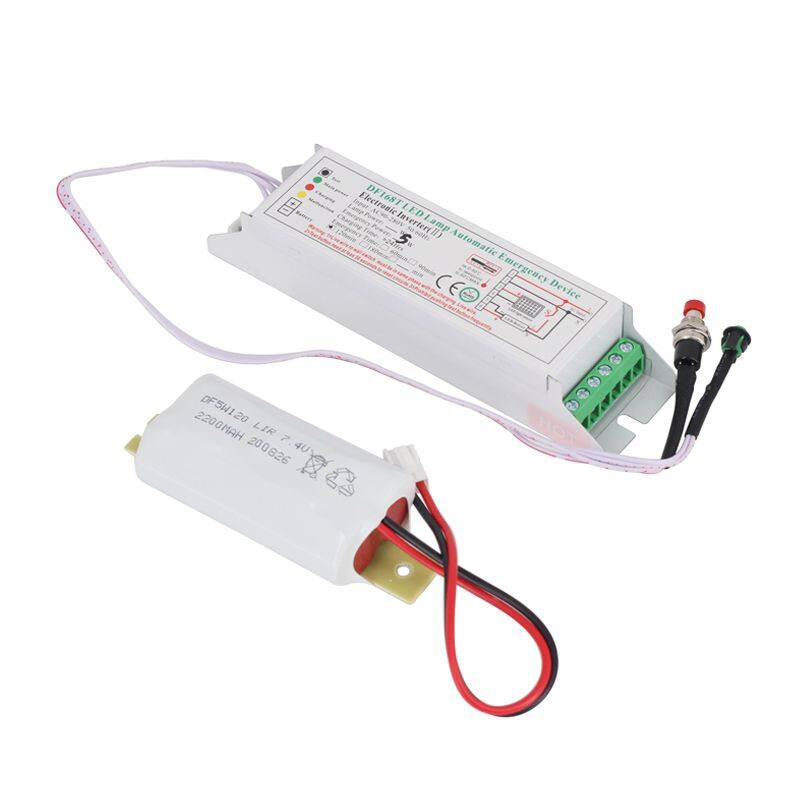

DF168T emergency power supply, which is economical and practical, is suitable for LED panel lights, downlights and other emergency lighting with reduced power within 60W; LED luminaire external drive power.

Used with 7.4V ternary lithium battery pack, can also use 7.2V nickel-cadmium or nickel-metal hydride battery pack;

It does not affect the lighting when there is electricity, and reduces the power to 3-10W emergency lighting after power failure;

International line, three-color indicator light, test button;

No-load protection, constant current limited voltage charging, charge and discharge dual protection board to ensure the safe use of lithium battery pack;

Connect the circuit in strict accordance with the wiring diagram, and do not open the cover at will;

The user can regularly check the discharge of the inverter, that is, cut off the mains power supply, and use the battery discharge lighting to automatically terminate;

Technical parameters:

Input: AC90-280V/50HZ-60HZ

Output: DF18V-120V

Power: 3W-10W, or custom output power

Emergency time: 1-3 hours, or according to customer requirements;

Battery: 7.4V Li-ion battery or 7.2V Ni-Cd or Ni-MH battery pack;

Charging current: 200mA

Split emergency power supply size/Length * width * thickness =137*34*26mm

Other detailed parameters of the overall emergency power box are subject to the specifications.

Certification: CE/FCC/ROHS/MSDS/PI967
