Walk-in Type Battery Explosion-proof High and Low Temperature Test Chamber

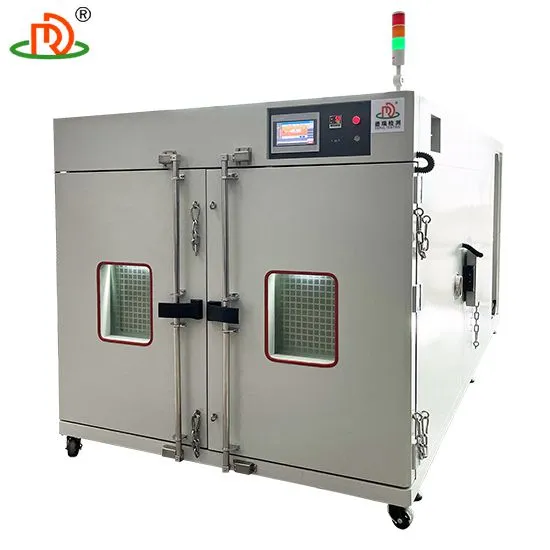

Walk-in Type Battery Explosion-proof High and Low Temperature Test Chamber photo-1
US$ 18750 - 31250 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Derui
Place of Origin:
China
Model Number:
HD-D202
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
30 days
Brand Name Derui
Place of Origin China
Model Number HD-D202
Power Other
Usage Other

This tester is mainly used for battery overcharge and overdischarge, charge and discharge test, the battery is placed in the explosion-proof box, external charge and discharge tester, for the protection of the operator and the instrument, the test box of this machine can be customized according to the test requirements.

The test should be conducted at an ambient temperature of 20℃±5℃, the positive and negative terminals of the fully charged battery are shorted, the battery is short-circuited, no external short circuit occurs during the test, the battery under test is qualified by not exploding and not catching fire.


SPECIFICATION

Indicators
Parameters
Operating temperature
Room temperature 25±5℃
Inner box size
500x500x500mm (WxDxH)
Dimension
700x650x1330mm (WxDxH)
Control method
Push-button control
Smoke venting
Diameter is 100mm
Pressure relief port
Opening size 200x200mm, located at the back side of the box
Inner box material
SUS201 stainless steel plate, thickness 1.2mm; and affixed with Teflon
Outer box material
1.5 mm thick cold-rolled steel plate with baking paint treatment;
Viewing Window
250x250mm two-layer tempered glass with stainless steel explosion-proof mesh
Box door
Single door with left opening and explosion-proof chain on the side of the door;
Test Holes
1 test hole of 50mm diameter on the right side of the device
Weight of the whole machine
About 65kg
Power source
1∮ AC 220V 50HZ
Whole machine power
About 200W
Main test items
Thermal shock test for battery products



Product Tags: Battery Explosion-Proof Test Chamber , Rapid-rate Thermal Cycle Test Chamber , Battery Impact Test Chamber
