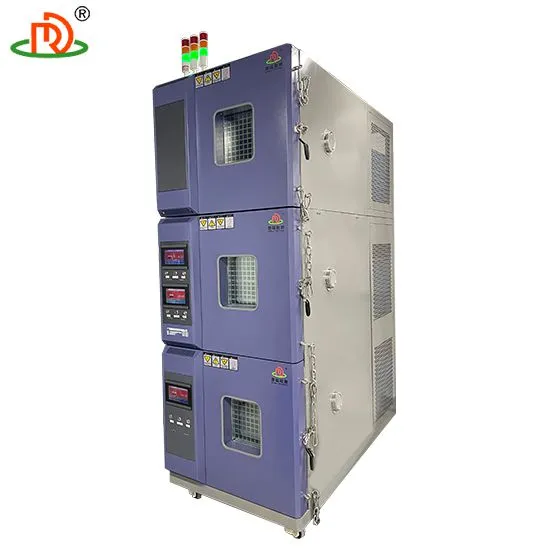

Help CenterThree Layers High and Low Temperature Explosion-proof Test Chamber
Related Products
-
High Temperature And Humidity Vibration Test BenchUS$ 25000 - 37500MOQ: 1 Set -
Energy-saving Large Custom Size Environmental Walk in Climate Test ChamberUS$ 50000 - 68750MOQ: 1 Set
-
Salt Spray Test ChamberUS$ 6250 - 12500MOQ: 1 Set
-
Corrosion Resistance TesterUS$ 1250 - 6250MOQ: 1 Set
-
High & Low Temperature Chamber & Tensile TesterUS$ 10000 - 31250MOQ: 1 Set
This tester is mainly used for battery overcharge and overdischarge, charge and discharge test, the battery is placed in the explosion-proof box, external charge and discharge tester, for the protection of the operator and the instrument, the test box of this machine can be customized according to the test requirements.
The test should be conducted at an ambient temperature of 20℃±5℃, the positive and negative terminals of the fully charged battery are shorted, the battery is short-circuited, no external short circuit occurs during the test, the battery under test is qualified by not exploding and not catching fire.
FEATURES
1.Explosion-proof High and Low Temperature Test Chamber is composed of the chamber, refrigeration systems, heating systems, air circulation system and control system.
2.The Battery Explosion-proof High and Low Temperature Test Chamber is made of high quality SUS#304 stainless steel material,the outer shell adopts A3 steel plate,surface electrostatic spraying.
3.Insulation system uses superfine fiberglass wool or polyurethane foam so as to ensure the temperature of inside chamber.
4.Temperature and humidity control adopts Korean import TEMI360 programmable touch screen temperature and humidity controller, with automatic calculation of PID function.
5.Adopts steam humidifying method, automatic water circulation loop,with functions of automatic filling water.
6.Refrigeration system adopts original France "Taikang" refrigeration unit and full sets of refrigeration parts.
7.Input mode PT100 sensor.
8.The system of heating up, heating down, dehumidifying, and humidifying can be operated independently so as to reduce the cost of testing, extend the operating life of the machine and decrease the failure rate.
9.Powerful multi-wing type air circulation which can ensure even temperature distribution inside the working chamber.
10.With larger transparent viewing window and lighting inside to observe the test.
11.Door seal adopts silicone rubber material which can avoid aging and hardening in high and low temperature conditions.
12.Standard configuration with one test hole on the left side of the chamber for easy testing operation and temperature measurement.
13.With various of safety protection device such as leakage and outage protection,compressor overpressure protection,overload fusing protection,audio signal alarm.
SPECIFICATION
