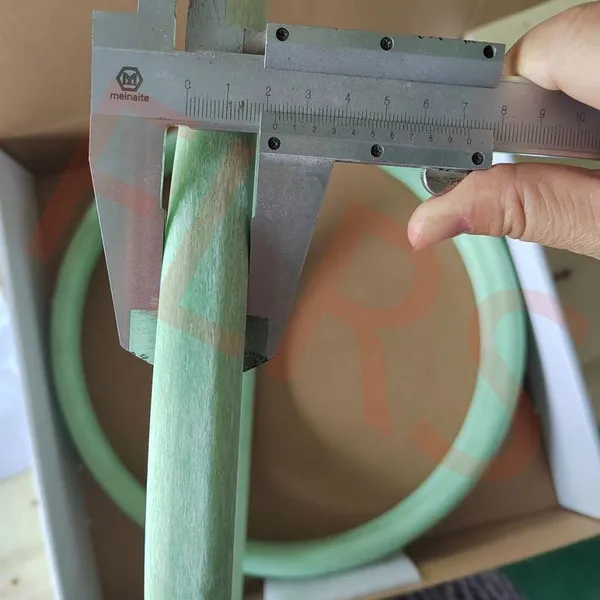

TYPE D Oval Insulation Gasket G10 Material For GOST 33259 RTJ Flanges
A flange isolation kit protects a flanged joint from the corrosion from static currents (by preventing a metal-to-metal contact among flanges, stud bolts, and gaskets). A flange insulation kit consists of one washer for each nut, one full-length insulating sleeve for each bolt, a gasket (type F, E, D, O), and thick plated steel washers for each nut.
| Item | Insulation Material | Material of Insulation Gasket | Max. Temp.(℃) | Insulation Resistance(Ω) | ||
| Sleeve | Washer | Pressure Class (lb) | ||||
| General | PTFE Solid Gasket | -100～100 | Over 2.0 x 1013 | |||
| 150 | ||||||
| Reinforced PTFE Gasket | -200～200 | 1.3 x 1011 | ||||
| 300 | ||||||
| Neoprene Faced Phenolic Gasket | -30～120 | RUBBER | CR 1.6 x 107 | |||
| PTFE | 150 | |||||
| Epoxy | Epoxy | Glass Reinforced Epoxy Plate Gasket with Rubber O-Ring | -40～150 | EPDM 2.0 x 1013 | ||
| Phenolic | Phenolic | 600 | ||||
| Reinforced Phenolic Plate Gasket with Rubber O-ring | -40～150 | VITON 9.7 x 109 | ||||
| 600 | ||||||
| Reinforced Phenolic Plate Gasket with Rubber O-ring | -60～150 | NBR 1.3 x 1011 | ||||
| 600 | ||||||
| High Pressure | Mica | Mica | Epoxy Faced Metal Plate with Rubber O-ring | 150 | - | |
| PTFE | Epoxy | 1500 | ||||
| Epoxy | Phenolic | Epoxy faced Metal Plate with PTFE Seal | 150 | Over 2.0 x 1013 | ||
| Phenolic | 2500 | |||||
| High Temp & Pressure | Mica | Mica | KAMMPROFILE Gasket with STARPITE | 1000 | 9.9 ｘ 1010 | |
Details:
The purpose of flange isolation kits is to prevent the (electrolytic) corrosion of flanges and flanged joints that static currents present on a piping system may induce.
The gasket isolation kit consists of a special gasket, isolation sleeves for all the stud bolts and nuts, and special washers. These components are manufactured in special materials with proper chemical stability, low water absorption, and dielectric properties.
Gasket Type:
Type E (Full Face Gasket)This gasket kit provides complete protection of both flange faces. The gasket has same outside diameter of
flanges. This feature will prevent collection of foreign matter between the flange faces to ensure complete cathodic isolation.
Type F (Rased Face Gasket)
This gasket is manufactured to fit only the raised face surface of the flanges. Outside diameter of the gasket is designed to be slightly less
than the inside diameter of the bolt circle. It is recommended that the flanges be wrapped to prevent foreign material from "shorting out"
the flanges.
Type RJ (Ring Type Joint Gasket)
