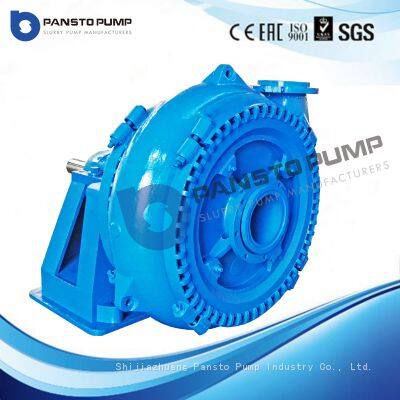

Wear Resistant Shijiazhuang Pump Manufacturers Mud Pump Water Pump
- 1000 Piece / Pieces per Month
- TIANJIN
- T/T L/C Cash
- High Performance Motor Power 110kw Pulp Slurry Pump for Iron Ore Dressing Plant
- Mass Flow Rubber Pump Horizontal Slurry Pump for Slurry Transportation
- Closed Impeller Horizontal Slurry Pump Sludge Pump
- Heavy Duty Mining Centrifugal Gravel Dredging Sand Slurry Pump for Iron Ore Dressing Plant
- Slurry Pump Accessories Mechanical Seal Mining Pump Water Pump
- A05 Material Sludge Pump Slurry Pump Flow Parts High Chrome Slurry Pump
Product Details
Brand Name: | PANSTO | Place of Origin: | China | Model Number: | 850PTL |
After-sales Service Provided: | Engineers available to service machinery overseas | Condition: | New |
Product Description
PGY series slurry pump
Product Introduction
With the development and improvement of impurity pump technology, our company combines the feedback experience of users and uses the theory of modern fluid mechanics, modern mechanical theory and computer software design technology; Our company has launched PGY series slurry pump, which has the characteristics of complete model, wide coverage of performance and working conditions, convenient selection and so on.
This series of products are designed as single-stage, single suction, centrifugal horizontal slurry pump. According to the outlet diameter, the horizontal pump is divided into 350mm, 300mm, 250mm, 200mm, 150mm, 100mm, 80mm, 65mm, 50mm, 40mm and other specifications; The pump of each specification and diameter has different impeller diameters for selection according to the head requirements.
This series of slurry pumps are innovative in hydraulic design and structural design. The flow passage parts are made of self-developed abrasion resistant high chromium wear-resistant alloy cast iron, which has the remarkable characteristics of high efficiency, energy saving, long service life, light weight, reasonable structure, reliable operation, low vibration, low noise and convenient maintenance.
The pump body adopts double pump shell structure to facilitate the replacement of overflow parts; According to the pressure requirements, the outer pump shell adopts nodular cast iron or gray cast iron, and the inner pump shell adopts high chromium wear-resistant white cast iron or cast steel.
Detailed Photos
Technical Parameters
Model | Distribution power P(KW) | Flow Q(m³/h) | Head H(m) | Rotational speed n(r/min) | Efficiency η% | Cavitation allowance NPSH(m) | Maximum particle size (mm) | Weight(kg) |
400PGY-F100 | 220-560 | 860-2339 | 37-63 | 490-590 | 77.6 | 4.4-5.8 | 96 | 5465 |
350PGY-A95 | 185-450 | 464-1826 | 15.3-65.2 | 300-590 | 81.1 | 3 | 88 | 5265 |
350PGY-A95 | 185-400 | 441-1735 | 13.8-58.8 | 300-590 | 78.1 | 3 | 88 | 5220 |
350PGY-A90 | 185-560 | 505-1844 | 21.2-79.9 | 400-730 | 82.8 | 3.9 | 85 | 5005 |
350PGY-A85 | 160-450 | 477-1742 | 19-71 | 400-730 | 79.8 | 3.8 | 85 | 4965 |
350PGY-A70 | 185-630 | 635-2333 | 16-77 | 490-980 | 80.4 | 3.9 | 92 | 3560 |
350PGY-A65 | 160-500 | 589-2166 | 14-66 | 490-980 | 77.4 | 3.7 | 92 | 3531 |
350PGY-A56 | 75-250 | 395-1560 | 9.7-46 | 490-980 | 80.9 | 3.5 | 96 | 3030 |
300PGY-A103 | 250-710 | 402-1573 | 30-110 | 400-730 | 74.5 | 2.8 | 69 | 5085 |
300PGY-A96 | 185-560 | 403-1466 | 25-94 | 400-730 | 77.8 | 3.5 | 69 | 5035 |
300PGY-A90 | 160-450 | 378-1374 | 22-82 | 400-730 | 73.8 | 3.4 | 69 | 4980 |
300PGY-A85 | 220-800 | 376-1504 | 30-129 | 490-980 | 77 | 3.5 | 76 | 4530 |
300PGY-A83 | 220-800 | 367-1469 | 29-123 | 490-980 | 75.5 | 3.5 | 76 | 4514 |
300PGY-A80 | 200-710 | 354-1416 | 27-115 | 490-980 | 73.5 | 3.4 | 76 | 4490 |
300PGY-A78 | 185-630 | 415-1796 | 21-103 | 490-980 | 75 | 3.2 | 76 | 4474 |
300PGY-A75 | 132-560 | 300-1480 | 20.8-98 | 490-980 | 77.5 | 3 | 72 | 3480 |
300PGY-A73 | 132-500 | 292-1441 | 20-92.4 | 490-980 | 76.5 | 3 | 72 | 3466 |
300PGY-A70 | 110-450 | 280-1381 | 18-85 | 490-980 | 75 | 2.9 | 72 | 3446 |
300PGY-A68 | 110-450 | 272-1342 | 17-80 | 490-980 | 73.5 | 2.7 | 72 | 3432 |
300PGY-A65 | 90-315 | 299-1249 | 15-71 | 490-980 | 76.9 | 3 | 72 | 3020 |
300PGY-A63 | 90-315 | 200-1211 | 14-67 | 490-980 | 76 | 3 | 72 | 3008 |
300PGY-A60 | 75-560 | 276-1153 | 13-61 | 490-980 | 73.9 | 2.8 | 72 | 2991 |
250PGY-A85 | 160-560 | 221-907 | 32-133.7 | 490-980 | 70.5 | 2.8 | 54 | 4110 |
250PGY-A75 | 110-355 | 225-900 | 23-103 | 490-980 | 74 | 3 | 56 | 3070 |
250PGY-A73 | 110-355 | 219-876 | 21.6-98 | 490-980 | 73.1 | 3 | 56 | 3056 |
250PGY-A70 | 90-315 | 205-976 | 19.4-86 | 490-980 | 75.6 | 2.8 | 56 | 2465 |
250PGY-A68 | 90-315 | 199-948 | 18.3-82 | 490-980 | 74.6 | 2.8 | 56 | 2453 |
250PGY-A65 | 75-250 | 235-950 | 16.5-72 | 490-980 | 79.6 | 2.5 | 62 | 2323 |
250PGY-A63 | 75-250 | 228-921 | 15-68 | 490-980 | 78.6 | 2.5 | 62 | 2311 |
250PGY-A60 | 75-185 | 218-870 | 14-62 | 490-980 | 83.5 | 2.5 | 62 | 2223 |
250PGY-A58 | 55-185 | 211-841 | 13-58 | 490-980 | 82.5 | 2.5 | 62 | 2214 |
200PGY-A71 | 75-220 | 142-552 | 22-94 | 490-980 | 69.8 | 2.4 | 48 | 2263 |
200PGY-A70 | 55-185 | 93-401 | 20-91 | 490-980 | 62.3 | 2 | 37 | 2245 |
200PGY-A65 | 75-200 | 150-600 | 17-76 | 490-980 | 70.8 | 2.5 | 48 | 2223 |
200PGY-A63 | 55-185 | 146-582 | 16-71 | 490-980 | 69.8 | 2.5 | 48 | 2211 |
200PGY-A60 | 45-160 | 135-550 | 15-64 | 490-980 | 75.9 | 2.5 | 48 | 2203 |
200PGY-A58 | 37-132 | 131-532 | 14-59.3 | 490-980 | 74.9 | 2.5 | 48 | 2033 |
200PGY-C58 | 37-110 | 134-596 | 12.8-61 | 490-980 | 69 | 2 | 75 | 2063 |
200PGY-A57 | 37-110 | 95-427 | 13-56.3 | 490-980 | 67.8 | 1.8 | 32 | 2023 |
200PGY-A55 | 37-110 | 124-504 | 12.3-53.4 | 490-980 | 73 | 2.3 | 48 | 2019 |
200PGY-A50 | 30-75 | 115-460 | 9.5-43 | 490-980 | 76.8 | 2.5 | 48 | 1735 |
200PGY-A48 | 22-75 | 111-442 | 8.7-39.7 | 490-980 | 75.8 | 2.5 | 48 | 1728 |
200PGY-C42 | 30-132 | 142-550 | 12-63 | 700-1480 | 77.1 | 2.2 | 69 | 1605 |
150PGY-A50 | 30-160 | 85-360 | 20-100 | 700-1480 | 69.6 | 2.5 | 34 | 1475 |
150PGY-A46 | 30-132 | 79-331 | 17-85 | 700-1480 | 67.6 | 2.3 | 34 | 1461 |
150PGY-A42 | 22-90 | 66-275 | 15-70.8 | 700-1480 | 71 | 2.5 | 35 | 1075 |
150PGY-A39 | 18.5-75 | 61-255 | 12.6-61 | 700-1480 | 69 | 2.4 | 35 | 1064 |
150PGY-B42 | 22-90 | 83-365 | 12.7-67 | 700-1480 | 71.6 | 2.5 | 40 | 1085 |
150PGY-A36 | 15-55 | 61-245 | 9.7-50 | 700-14802 | 71.6 | 2 | 32 | 1010 |
150PGY-A33 | 11-45 | 56-225 | 8.2-41.6 | 700-1480 | 69.6 | 1.8 | 32 | 1003 |
100PGY-A52 | 30-160 | 51-242 | 22-110 | 700-1480 | 56.3 | 2.1 | 21 | 1465 |
100PGY-A42 | 18.5-75 | 61-204 | 14-70 | 700-1480 | 66.7 | 2.5 | 24 | 1053 |
100PGY-A39 | 15-55 | 57-189 | 12-61 | 700-1480 | 65 | 2.4 | 24 | 1042 |
100PGY-A36 | 11-45 | 46-190 | 9.6-51 | 700-1480 | 67.7 | 2.5 | 24 | 980 |
100PGY-A33 | 7.5-37 | 43-174 | 8.0-43.2 | 700-1480 | 65.7 | 2.3 | 24 | 973 |
85PGY-A30 | 4-15 | 23-79 | 7.4-34.8 | 700-1460 | 63.5 | 2 | 19 | 504 |
85PGY-A27 | 3-11 | 20-71 | 6-28.2 | 700-1460 | 61.5 | 1.8 | 19 | 500 |
75PGY-A50 | 22-90 | 27-111 | 22.3-110 | 700-1480 | 45 | 3 | 13 | 1378 |
75PGY-A46 | 15-55 | 23-94 | 17-86 | 700-1480 | 44.7 | 1.4 | 14 | 1082 |
75PGY-A33 | 4-18.5 | 12-54 | 7.7-43 | 700-1480 | 42 | 2.9 | 13 | 537 |
50PGY-A19 | 1.5-11 | 8-35 | 12.8-57 | 1430-2930 | 58.8 | 1.3 | 11 | 173 |
50PGY-A17 | 0.55-7.5 | 4.5-23 | 9.4-44.6 | 1400-2900 | 52.4 | 2.5 | 11 | 121 |
Product Diagram
Certificates
Company Profile
At present our products involve more than a dozen series and more than 100 varleties. The main products are horizontal slurry pumps, vertical slurry pumps, rubber lined pumps, gravel pumps, froth pumps, desulfurization pumps, filter press feed pumps, dredge pumps, sewage pumps, submersible slurry pumps and spare parts. The compamy has a number of high-quality, high-level and experienced technical and management elites. The material can be adjusted according to the actual working conditions of customers, So as to improve the wear resistance and corrosion resistance of the pump and greatly prolong the service life of the pump. Our products are widely used in beneficiation, metallurgy coal,electric power, petroleum, chemical industry, sand excavation, urban sewage, environmental protection and other industries.
WorkshopWorkshop
Product Accessories
Application
Product Transportation
FAQ
Pansot mainly produce horizontal slurry pumps, vertical slurry pumps, rubber lined pumps, gravel sand pumps, froth pumps, desulfurization pumps, filter press feed pumps, dredge pumps, sewage pumps, submersible slurry pumps and spare parts.
2. Is Pansto direct factory or trader?
Yes, Pansto is direct Slurry Pump Manufacturer with Export and Import License, having its own foundry workshop, Machining Workshop, Heat treatment equipment and Assembly workshop, also advanced quality inspection equipment.
3. Can you provide OEM, ODM service?
Yes. OEM Service is an important part of our business. Pansto Pump accept OEM business as samples or drawings of all kinds of pumps and casting spare parts. And more we offer ODM service too.
4. What is your warranty period?
We provide one year of unconditional warranty on our products for the manufacturing defects.
5. What about delivery time?
Normally our production time is within two weeks. Please confirm before order.
6. The Min MQQ?
The MQQ is one pcs pump or spare parts.
