1. Summary

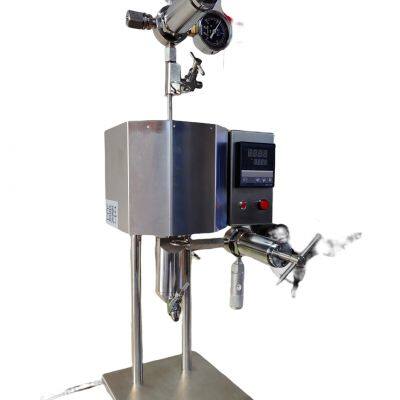

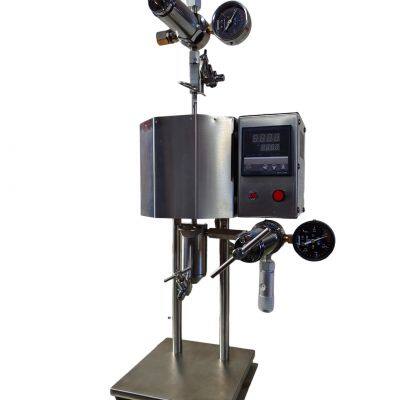

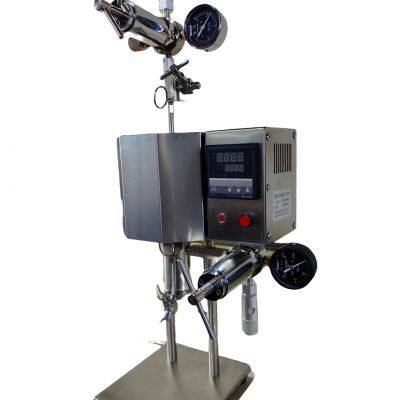

The Model 175 ml HTHP Filter Press can be used to measure the filtration rate of drilling fluids and cement slurry under the condition of deep wells (HTHP), at the same time can be used to prepare the mud cake formed after filtration under the HTHP conditions. It possesses the characters of high precision, small error, simple operation and accurate measured data. The apparatus has been used extensively in various oil-fields, research institutions and laboratories.
2. Model and specification
Sequence number |
Model |
Name |
Difference of disposition |
Features |
1 |
175ml |
HTHP filter press |
a. Mud sample cup with through hole b. Heating jacket with insulating layer |
a. Do the experiments for cement slurry. b. Heat efficiency is high. |
3. The major technical parameters
The major technical parameters are listed in the following table.
Sequence number |
Name |
Technical parameters |
1 |
Power supply |
220V±5% 50Hz |
2 |
Power |
400W |
3 |
Working temperature |
~150℃（300F） |
4 |
Working pressure of mud sample cup |
4.2MPa（600PSI） |
5 |
Pressure of back-pressure tester |
0.7MPa(100PSI) |
6 |
Effective area of filtration |
22.6cm2 |
7 |
Limiting pressure of mud sample cup |
6MPa(870PSI) |
8 |
Capacity of Mud sample cup |
175ml |
9 |
Gas source |
Nitrogen gas, carbon dioxide (Not contain oil and water) |
10 |
Overall size |
530*465*334mm |
11 |
Gross weight |
36kg |
