Polymer filter element for CPF filtration system

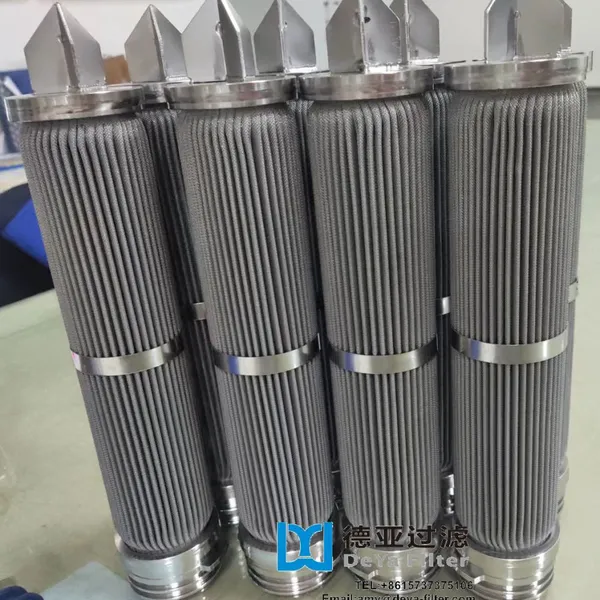

DEYA made Candle Filter Elements are groups of metal pleated filter elements fixed with candle holders to work as an candle-like filtration unit. Porous metal filters for high-temperature, high pressure polymer processing applications. Designed to remove the impurities ( such as titanium dioxide, gels and other solid residues ) of the polymer melt in chemical fiber, textile and plastics industries. Suitable for monomer, pre-polymer or polymer filter systems.
Typical applications
Polyester bottle chip
Polyester fibre
Cellulose acetate fibre
Nylon 6 and 66 fibre.
Features and benefits
Proven robustness for cleaning and repeat use
Long filter life
Operate in high temperature environments
High carbon resistance
High filtration area for pleated candle version.
Sintered Metal Powder Cylindral Elements Specification List:
| Filtration accuracy(μm) | Air-permeability(L/min •dm²) |
Bubble pressure point(pa) | Porosity | Dirt holding capacity(mg/cm²) |
Thickness(mm) |
| 5 | 47 | 6600 | 75 | 5 | 0.54 |
| 7 | 63 | 5000 | 76 | 6 | 0.54 |
| 10 | 105 | 3700 | 77 | 6 | 0.54 |
| 15 | 140 | 2450 | 79 | 7 | 0.54 |
| 20 | 280 | 2000 | 80 | 13 | 0.54 |
| 25 | 360 | 1500 | 78 | 19 | 0.54 |
| 30 | 520 | 1230 | 79 | 34 | 0.54 |
| 40 | 670 | 960 | 79 | 34 | 0.54 |
| 60 | 1300 | 650 | 85 | 36 | 0.54 |
Don’t hesitate to contact us for coming project, price quotes or to learn more about DEYA FILTER
whatsapp:008615737375106 email:amy@deya-filter.com
