Help CenterTriple Phase Thyristor Power Regulator Angle Phase 100a 200a 300a
Related Products
-
Triple Phase 400v Low Voltage Scr Power Regulator 30a 50a 75a 100a 200a 300aUS$ 105 - 189MOQ: 1 Piece -
Single Phase 220v Thyristor Power Regulator 25a 40a 50aUS$ 70 - 100MOQ: 1 Piece
-
Mppt Hybrid Solar Pumping Inverter Triple Phase 220v 400vUS$ 105 - 189MOQ: 1 Piece
-
Bypass Contactor Built-in Motor Soft Starter For Three Phase Caged Electric MotorUS$ 105 - 189MOQ: 1 Piece
-
Triple Phase 400v Static Var Generator Svg 30kvar 50kvar 75kvar 100kvar 150kvarUS$ 600 - 1000MOQ: 1 Piece

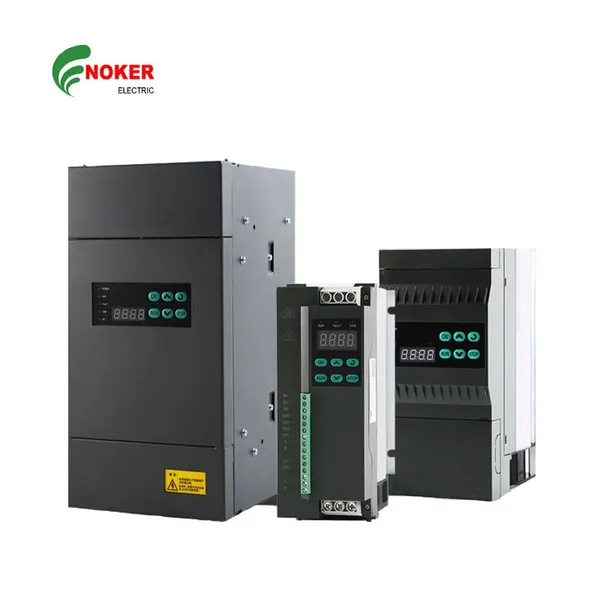

Thyristor power regulator, also known as scr power controller is used to control power delivery. They are designed to vary the ac voltage across the resistive&inductive loads. The thyristor power controllers provide a smooth way of power delivery to load. Unlike conactors, not have any electromechanical movemen.Thyristor power regulator includes the back to back connect silicon rectifier(scr), trigger pcb board, current transformers, temperature transformer. By the trigger pcb board to control the thyristor by phase angle&zero cross burst two models. The current transformers detect the three phase current, as the constant current control and to be the current protection. The temperature transformers detect the heatsink temperature to protect the Scr to be safe.
1. Built-in high performance, low power microcontroller;
2. Peripheral features;
2.1. Support 4-20mA and 0-5V/10v two given;
2.2. Two switch inputs;
2.3. Wide range of primary loop voltage(AC110--440V);
3. Efficient cooling solution, such small size, light weight;
4. Practical alarm function;
4.1. Phase failure;
4.2. Overheat;
4.3 Overcurrent;
4.4. Load break;
5. One relay output, 3A AC250V, 3A DC30V;
6. To facilitate centralized control RS485 communication;
