Help CenterScr Power Regulator
Related Products

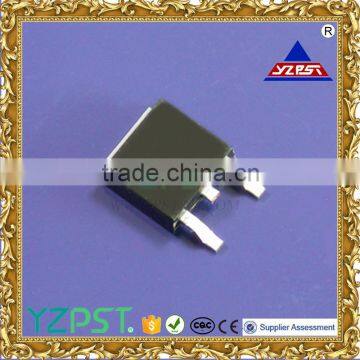

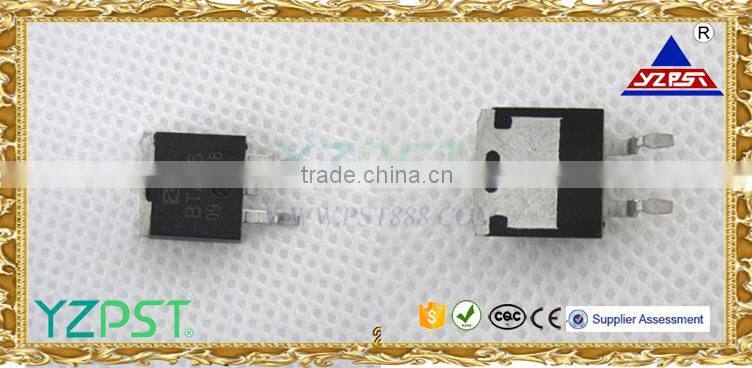

TO-252 Encapsulation scr transistor

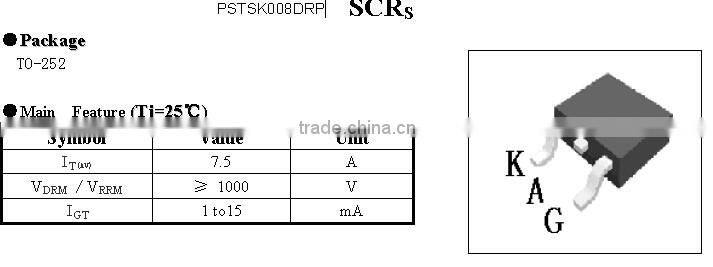

PSTSK008DRP
Absolute ratings (LimitingValues)
Symbol |
Parameter |
Value |
Unit |
IT(RMS) |
RMS on-state current (180°conduction angle) |
12 |
A |
IT(AV) |
AV on-state current (180°conduction angle) |
7.5 |
A |
ITSM |
Non repetitive surge peak on-state Current (tp=10ms) |
100 |
A |
I2t |
(tp=10ms) |
50 |
A2S |
IGM |
Peak gate current(tp=20us) |
2 |
A |
PGM |
Peak gate power |
5 |
W |
PG(AV) |
Average gate power |
0.5 |
W |
|
Tstg Tj |
Storage temperature Operating junction temperature |
-40--+150 -40--+125 |
℃ |
Thermai Resistances
Symbol |
Parameter |
Value |
Unit |
Rth (j-c) |
Junction to case |
1.3 |
K/W |
Rth (j-a) |
Junction to ambient |
60 |
K/W |

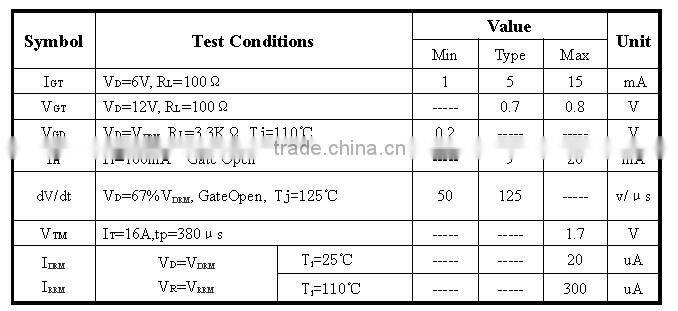

Electricalcharacteristics (Tj=25℃ unless otherwise stated)
1. We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items).
2. If the items are defective, please notify us within 3 days of delivery.
3. Any items must be returned in their original condition to qualify for a refund or replacement.
4. We can ship to you by FedEx/UPS/DHL/TNT/EMS/HK Post. Please contact us directly and we will use your preferred ways.
5. We are not responsible for any accidents, delays or other issues caused by the forwarder.
6. Any import fees or charges are on the buyer's account
1. With regard to your inquiry and quotation of products, we will give you the detailed reply within 24 hours.
2.we provide warranty for all the goods from us.
3. We're in this field more than 13 years. If there's any problem, please contact with us,we'll provide suggestion from our engineer to help you solve problem.
4. We have large warehouse for goods. Keep lots of goods in warehouse, so could promise fast delivery.
5. The price of sending samples is the same. We quate FOB price. You need to bear the freight after it boarded the ship freight.
NAME :John Chang AND Sam Zhou
SKYPE: yzforever0313
TEL: 0086-514-87782298 87782296
FAX: 0086-514-87782297
URL:WWW.YZPST. CC/ WWW.PST888.COM
ADD: Room303 Weiheng Building NO.184 Wangyue RD Yangzhou Jiangsu, China
All emails will be replied within 24 hours. Please leave a message in the Trade Manager. Thank you for ordering and hope you enjoy your purchase here. You commen ts are always welcomed and very important in our long-term business corporation.
We sincerely hope to cooperate with you.For more details, please contact me!
