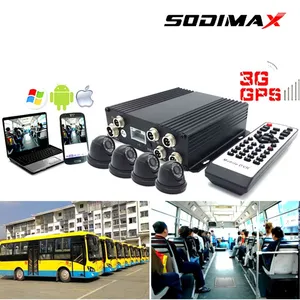

Vehicle Black Box 4G Dash Camera Fleet Management DVR Security Cameras Dashcam
US$ 4 - 5
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Sodimax
Place of Origin:
China
Model Number:
SD618-4G-GPS
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Port
Delivery Detail:
3 days
Related Products
-
8-CH Vehicle Mobile Digital Video Recorder With a Hard Disk Built-in GPS ModuleUS$ 4 - 5MOQ: 1 Piece -
4 Channel 1080P SD Card Rear View Mobile Car Vehicle Taxi SD DVR Video RecorderUS$ 4 - 5MOQ: 1 Piece
-
4 Channel 1080P SD Card Rear View Mobile Car Vehicle Taxi SD DVR Video RecorderUS$ 4 - 5MOQ: 1 Piece
-
8CH 3G Real Time Monitoring Dvr GPS Mdvr H.264 G-sensor School Bus Vehicle Mobile Dvr MDVRUS$ 4 - 5MOQ: 1 Piece
-
4CH 720P HD Mini SD Card Mobile DVR 3G 4G GPS WIFI Max 512G StorageUS$ 4 - 5MOQ: 1 Piece
Brand Name
Sodimax
Place of Origin
China
Model Number
SD618-4G-GPS

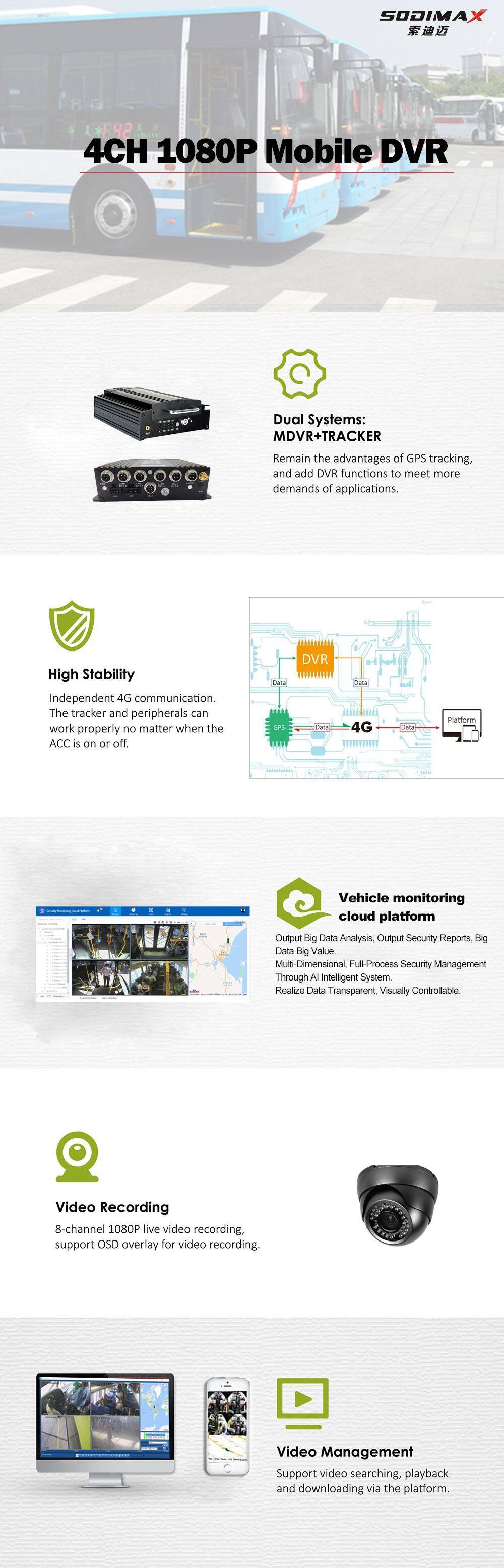

Mobile CCTV DVR Description&Specification
A. Standard H.264 compression format ensures high rate, less storage space and clear.
B. SD card support, faster recording speed and easy installation.
C. Advanced PCB layout&design and reliable SMT processing
D. Wide voltage range of 8 - 36 V
E. 5V/0.5A for Input, 12V/2A for output, compatible and easy installation

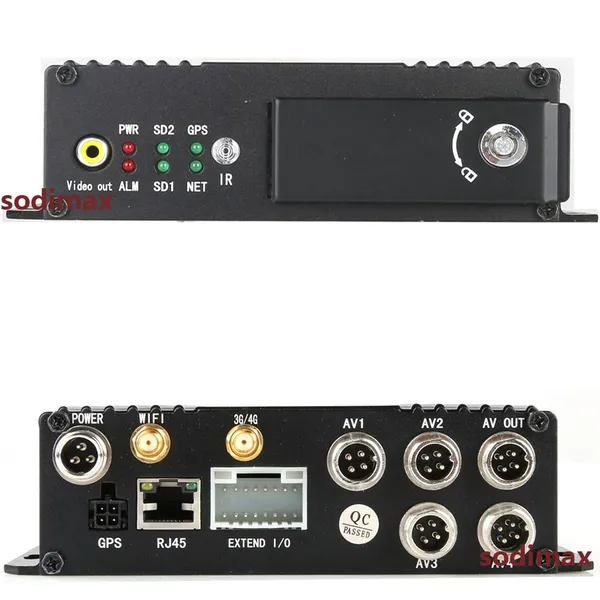

F. 4 Alarm in, 1 Alarm out. 4 Video in, 1 Video out. 4 Audio in, 1 Audio out. RS485/232 Support.
G. Professional management platform and PLAY software
H. Support Brake alarm, Reverse alarm, Motion detect, Door opening alarm, CMS platform, Customized Player.
Support Geo fence, Location, Speed alarm, G-sensor etc.
Support oil sensor, Fuel cut, Power cut, SOS alarm, Alarm button, Online tracking, Live talkback, Live surveillance, Live simultaneous storage, Dispatching system, Camera rotation, PTZ cloud control, SMS function, CMS platform, iOS&Android client(for Apple and Android phone), Remote control and etc.
Mobile CCTV DVR Specifications
| Item | Description | |
| OS | Linux | |
| Graphics Operation Interface | System parameters can be set through external display and remote controller | |
| Security Management | 2-level management for user password, administrator password, supporting encrypted transmission | |
| Video and Preview | Video Input, Output | 8-channel video input, 1channel video output; 1.0Vp-p, 75Ω |
| OSD | Character superposition function, information superposition of time and date, device ID and GPS, etc. | |
| Video Compression Format | Compression coding. Applying Hisilicon hi-performance processor. | |
| Dual-Stream | Supported | |
| Preview Function | Preview of 1-channel, 4-image stitching, supporting full screen triggered by event and switching of stitched images | |
| Frame Rate | PAL: 100 frames/s, up to 25 frames/s per channel; NTSC: 120 frames/s, up to 30 frames/s per channel | |
| Resolution | CIF, HD1 and D1 for selection, supporting 2 channels of D1+ 2 channels of CIF at the most | |
| Quality | Grade 1 to grade 5 for selection (descending) | |
| Bit Rate | CIF: 256Kbps ~ 1.5 Mbps, 8-level bit rates for selection | |
| HD1: 600Kbps ~ 2 Mbps, 8-level bit rates for selection | ||
| D1: 800Kbps ~ 3Mbps, 8-level bit rates for selection | ||
| Audio | Audio Input, Output | 8-channel input, 1-channel output |
| Compression Format | G.726 coding | |
| Recording | Storage Medium | Supporting dual SD cards, which supports up to 256GB |
| File Format/ System | ASF/FAT32 | |
| Video Strategies | Recording at startup by default, supporting timed recording, recording triggered by alarm and event, as well as manual recording | |
| Video Search | Searching by time, type, storage device and other conditions | |
| Video Playback | Supporting playback on local device, supporting synchronous playback of up to 8 channels and analysis on vehicle information in the files | |
| Supporting fast forward, fast backward, play and pause, supporting fast forward and fast backward at 2x, 4x, 8x and 16x speed, supporting file play from selected time | ||
| Alarm | Alarm Input/ Output | 6-channel on/off signal alarm input, 1-channel on/off signal alarm output |
| Alarm Recording | Prerecording function 15 seconds before alarm, duration of recording after alarm can be adjusted from 30s ~ 30min | |
| Storage Space Alarm | Supporting settings for alarm of storage space | |
| Function Alarm | GPS overspeed alarm, acceleration alarm, motion detection alarm | |
| Communication Ports | RS232, | |
| Wireless Transmission (Optional) | Embedded 3G wireless transmission module, WCDMA, CDMA2000, TD-SCDMA system for selection; | |
| Compatible with GPRS, EDGE; | ||
| GPS (Optional) | Supporting external GPS, WIFI download | |
| Remote Data Transmission Channel Selection | Supporting 3G; supporting remote downloads of back-end recording strategies; | |
| PTZ Control | Supporting PTZ control realized by local ad client software; | |
| Parameter Configuration | Supporting parameter configuration functions for mobile DVR coding channel; | |
| G-Sensor | Embedded | |
| System Upgrading | Supporting SD card, hard drive upgrading and remote upgrading | |
| Power Supply and Power Consumption | Power Supply | 1. ACC on/off |
| 2. Hard drive lock on/off | ||
| 3. Delayed shutdown | ||
| 4. Timed on/off | ||
| Input Voltage | DC:+8V ~ +36V | |
| Output Voltage | +12V@4*A | |
| Power-off Protection | With patented UPS power supply continuous working technology, it can work for 3~5 seconds after external power supply is cut so that the intactness of video data can be kept upon sudden power failure | |
| Power Consumption | ||
| Operating Environment | Temperature | Normal: 0℃ ~ +60℃; upon hard drive preheating: -25℃ ~ +60℃ |
| Humidity | 10% to 95% | |
