GPS Tracking Mobile Car DVR with Free Web and APP Counting System 4G Vehicle Passenger Counter

FOB Price

US$ 4 - 5 / Piece

1 Piece(Min. Order)

Port Shenzhen Port
Payment TermsT/T PayPal Cash
Delivery Detail3 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	sodimax		Place of Origin	China
Model Number	VPC-D

Product Description

4CH 720P 3G/4G Realtime Video Tracking Mobile DVR with Bus People Counter System for City Bus

The 3nd generation of Video counter system is based on advanced smart counting technology and attains high accuracy by detecting morphological characteristics of human(head and shoulder) and the human movement situation of getting On&Off the vehicle. 3nd generation is mainly characteristic of its high accuracy, despite crowded group, closthes, colors etc. Each counting camera can detect passenger On and Off, and can distinguish human and object. It becomes important system for public transportation enterprises and governments.

Features:

* 98% up accurate

* High accuracy despite crowded group

* Not affected by clothes color and passenger height etc

* Long duration and low maintenance

* Accurate counting for On and Off through Front and Back door

* Automatically generate statistic report

* Easy installation and uninstallation

* More accurate surveillance and more effective management on ticket, conductor and driver.

* Supporting 4ch/8ch video recording, SD card& HDD storage.

* Supporting 3g, gps, wifi, alarm, G-sensor functions.

Product Description&Specification:

System: Linux

CPU: TMS320DM6446

Operation Interface: OSD with mouse and remote control

Video Counting input: Max 2 channels

Video Counting output: 1 channel

Accuracy: 98% up

operating voltage: DC 8—36V

Operating power: ≤4W

Operating temperature: -20°C -- +80°C

Operating humidity: 10% -- 95%

USB port: Standard 2.0

Counting input port: Aviation

Item		Description
OS		Linux3.0
Graphics Operation Interface		System parameters can be set through external display and remote controller
Security Management		2-level management for user password, administrator password, supporting encrypted transmission
Video and Preview	Video Input, Output	4-channel video input, 1channel video output; 1.0Vp-p, 75Ω
	OSD	Character superposition function, information superposition of time and date, device ID and GPS, etc.
	Video Compression Format	Compression coding. Applying Hisilicon hi-performance processor.
	Dual-Stream	Supported
	Preview Function	Preview of 1-channle, 4-image stitching, supporting full screen triggered by event and switching of stitched images
	Frame Rate	PAL: 100 frames/s, up to 25 frames/s per channel; NTSC: 120 frames/s, up to 30 frames/s per channel
	Resolution	AHD 720P,D1, HD1 ,CIF 4channel
	Quality	Grade 1 to grade 8 for selection (1 is the best)
	Bit Rate	CIF: 300Kbps ~ 1.2 Mbps, 8-level bit rates for selection HD1: 500Kbps ~ 1.5 Mbps, 8-level bit rates for selection D1: 600Kbps ~ 2Mbps, 8-level bit rates for selection 720P: 800Kbps ~ 4Mbps, 8-level bit rates for selection
Audio	Audio Input, Output	4-channel input, 1-channel output
Audio	Compression Format	G.726 coding
Recording	Storage Medium	Supporting one 2.5” hard drive and one SD card, which supports up to 128G, supporting data redundancy storage technology;
	File Format/ System	Special file system
	Video Strategies	Recording at startup by default, supporting timed recording, recording triggered by alarm and event, as well as manual recording
	Video Search	Searching by time, type, storage device and other conditions
	Video Playback	Supporting playback on local device, supporting synchronous playback of up to 4 channels and analysis on vehicle information in the files
	Video Playback	Supporting fast forward, fast backward, play and pause, supporting fast forward and fast backward at 2x, 4x, 8x and 16x speed, supporting file play from selected time
Alarm	Alarm Input/ Output	8-channel on/off signal alarm input, 2-channel on/off signal alarm output
	Alarm Recording	duration of recording after alarm can be adjusted from 10s ~ 999S
	Storage Space Alarm	Supporting settings for alarm of storage space
	Function Alarm	GPS overspeed alarm, acceleration alarm, motion detection alarm
counter	Passenger Video counter	Two doors Synchronous statistics. the recognizing accuracy was more than 95%
Communication Ports		485,RS232, RJ45 10M/100M self-adaptable network interface
Wireless Transmission (Optional)		Supporting Wi-Fi;
GPS (Optional)		Supporting external GPS
PTZ Control		Supporting PTZ control realized by local;
Parameter Configuration		Supporting parameter configuration functions for mobile DVR coding channel;
G-Sensor		Embedded
System Upgrading		Supporting SD card, hard drive upgrading and remote upgrading
Power Supply and Power Consumption	Power Supply	1. ACC on/off 2. Hard drive lock on/off 3. Delayed shutdown 4. Timed on/off
	Input Voltage	DC:+9V ~ +36V
	Output Voltage	+12V@5*0.5A;
	Power-off Protection	With patented UPS power supply continuous working technology, it can work for 3~5 seconds after external power supply is cut so that the intactness of video data can be kept upon sudden power failure
	Power Consumption	<10W in normal operation; <0.5W in standby mode
Operating Environment	Temperature	Normal: 0℃ ~ +60℃; upon hard drive preheating: -25℃ ~ +60℃
Operating Environment	Humidity	10% to 95%
Dimensions		160(W) x62(H) x200(D) mm.
Weight		Net: 2020g, Gross: 3500g

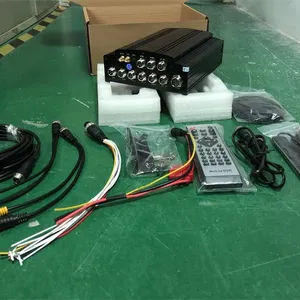

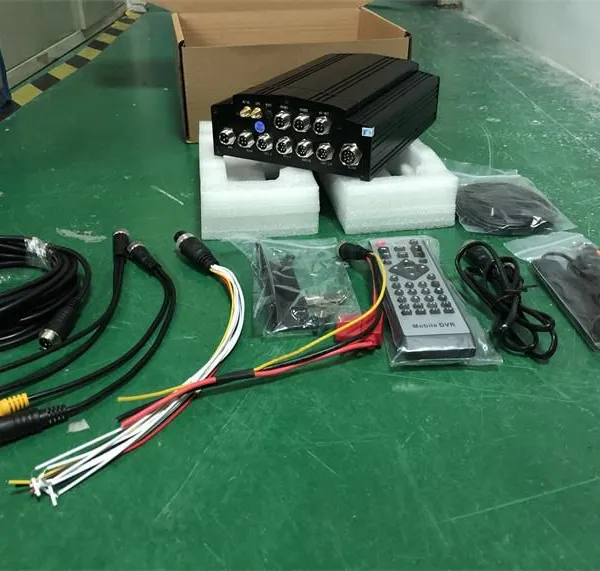

1. Main Unit(below)

Counter Processor(brain), Mounted at the bottom of seat or ceiling of bus, process and calculate the data, send to HDD storage or 3g/4g

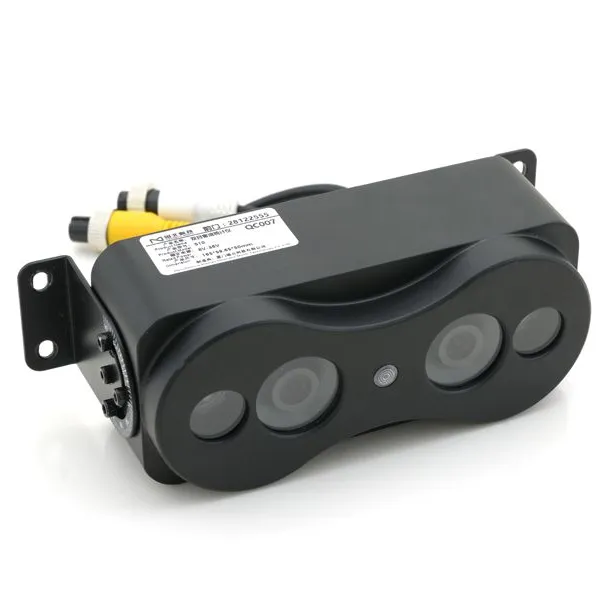

2. Binocular Camera

Mounted on the ceiling of the doors, counts passengers get in or out of the bus.

3. Door Sensor

Door open/close sensor, is used for sensing the door open or close status.

Platform show

Notice: If you buy our 3G counter(with mdvr together), you will use our platform ;if you buy our GPRS counter ,also you can use our management platform tool ,also you can use your own platform with our protocol by RS232/485 interface.

Please contact us for specific manual in details
