Environmentally Friendly Waste Plastic to Fuel Oil Pyrolysis Machine

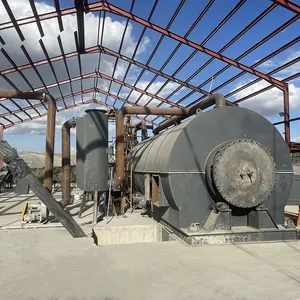

Environmentally Friendly Waste Plastic to Fuel Oil Pyrolysis Machine photo-1

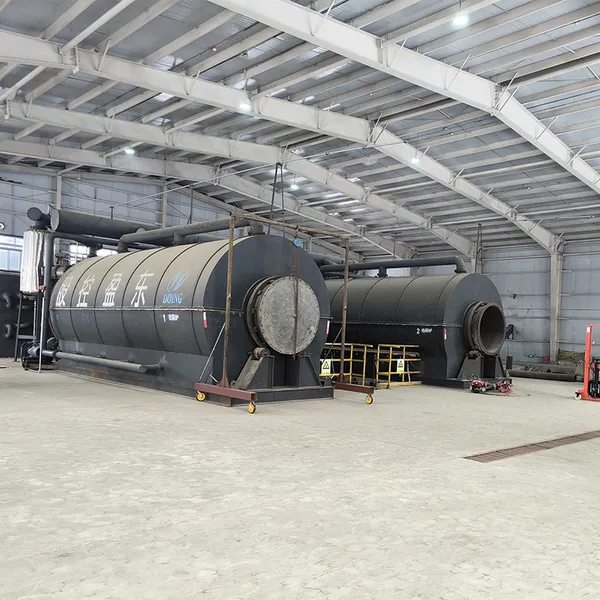

Environmentally Friendly Waste Plastic to Fuel Oil Pyrolysis Machine photo-2

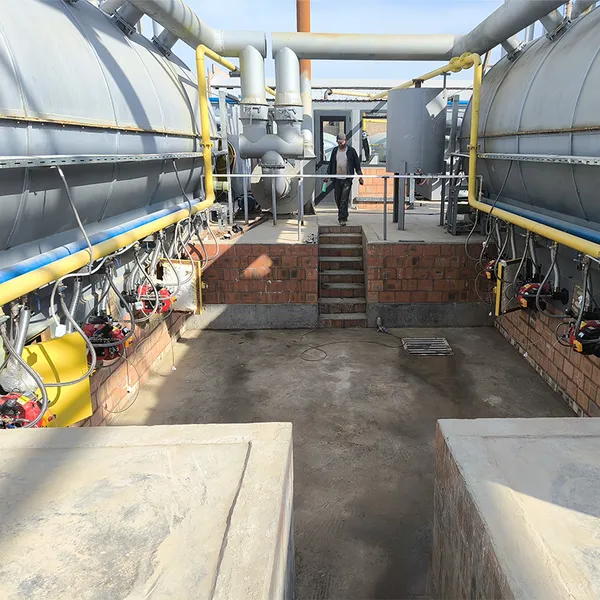

Environmentally Friendly Waste Plastic to Fuel Oil Pyrolysis Machine photo-3

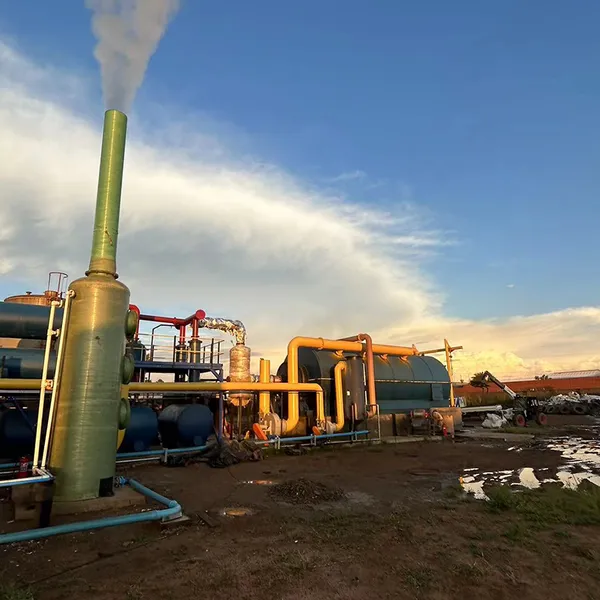

Environmentally Friendly Waste Plastic to Fuel Oil Pyrolysis Machine photo-4

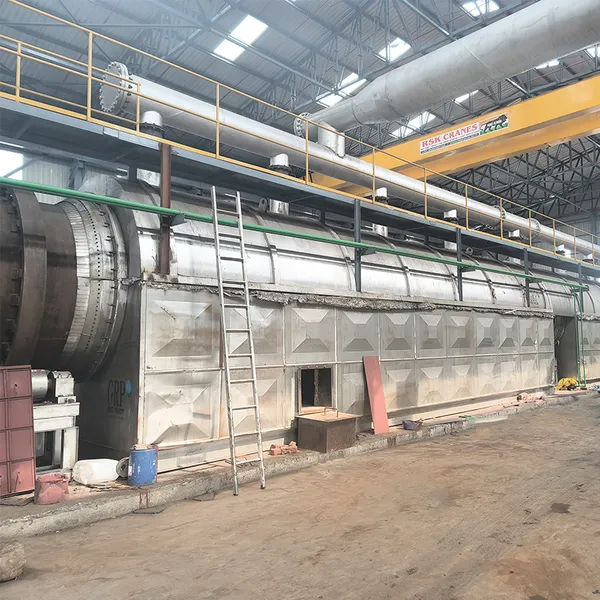

Environmentally Friendly Waste Plastic to Fuel Oil Pyrolysis Machine photo-5

Product Spotlights

Our pyrolysis machine has different capacities, such as 1/5/10/12/15/20/30/40/50+tpd, with batch type design and continuous type design.
US$ 28000 - 98000 MOQ: 1 Set
Key Specifications
Get Latest Price
Certification:
ISO9001:2008, CE
Warranty:
one-year service guarantee
After-sales Service:
Field installation, commissioning and training
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao or other ports
Delivery Detail:
Delivery time depends on order quantity.
Certification ISO9001:2008, CE
Warranty one-year service guarantee
After-sales Service Field installation, commissioning and training
Trademark DOING
Origin China


00:03

01:25

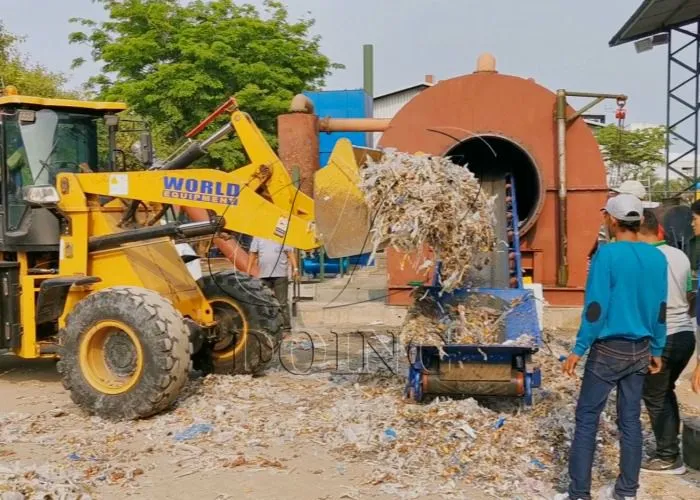

700 塑料进料

DOING COMPANY PYROLYSIS PLANT

The continuous type and batch type pyrolysis plants designed by Doing Company’s engineer team have been exported to the United States, the United Kingdom, France, Italy, Australia, Dubai, Brazil, Kazakhstan, Pakistan, India, Nigeria, Mexico, Egypt, Thailand and other 100+ countries and regions. Their outstanding economic and environmental benefits have led the development of the waste tire/plastic/oil sludge/rubber/aluminum plastic composite material pyrolysis industry. The whole process is safe and environmentally friendly. For details, please contact our professional project manager for consultation.

Product Paramenters

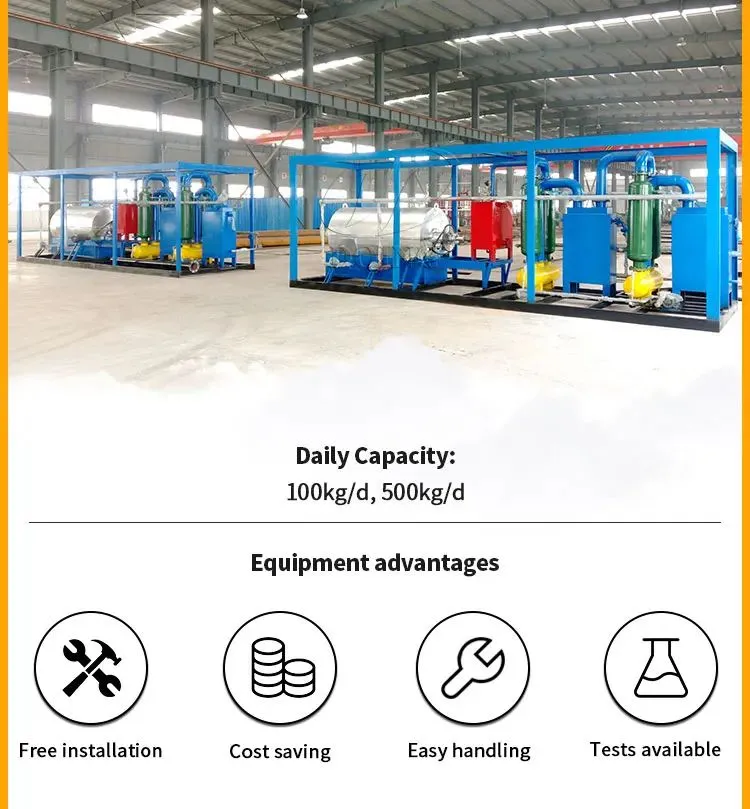

Scheme 1: small scale free installation pyrolysis plant unit

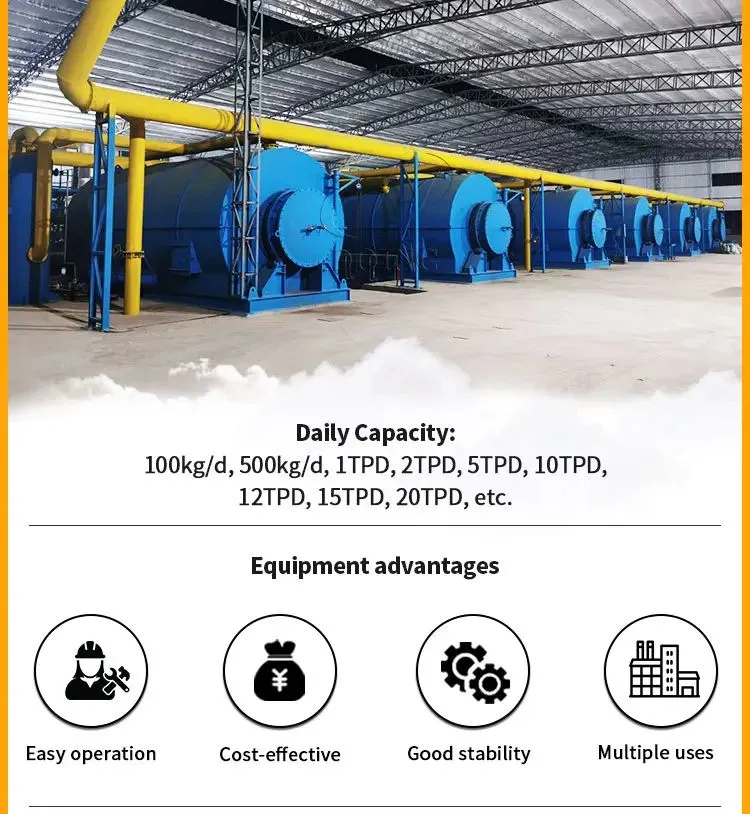

Scheme 2: cost effective batch type pyrolysis plant


Items

Batch Pyrolysis Plant

Equipment type

DY-1-6

DY-1-10

DY-1-12

Raw material

Waste plastics, tyres

Waste plastics, tyres

Waste plastics, tyres

Structural form

Horizontal rotation

Horizontal rotation

Horizontal rotation

24-hour Capacity

6 ton

10 ton

12 ton

Oil yield

2.7-3.3ton

4.5 -5.5ton

4.8 -6.6ton

Operating pressure

Normal

Normal

Normal

Material of pyrolysis Reactor

Q245R

Q245R

Q245R

Thickness of pyrolysis Reactor

16mm

16mm

16mm

Rotate speed of pyrolysis Reactor

0.4turn/minute

0.4turn/minute

0.4turn/minute

Total power

15KW

15KW

15KW

Mode of cooling

Water cooling

Water cooling

Water cooling

Cooling area of condenser

100sqm

100sqm

100sqm

Kind of transmission

Internal gear drive

Internal gear drive

Internal gear drive

Noise dB(A)

≤85

≤85

≤85

Size of Reactor(D×L)

2200×6000

2600×6600

2800×6600

Working form

Intermittent operation

Intermittent operation

Intermittent operation

Delivery time

20days

20days

20days

Weight

27T

32T

35T

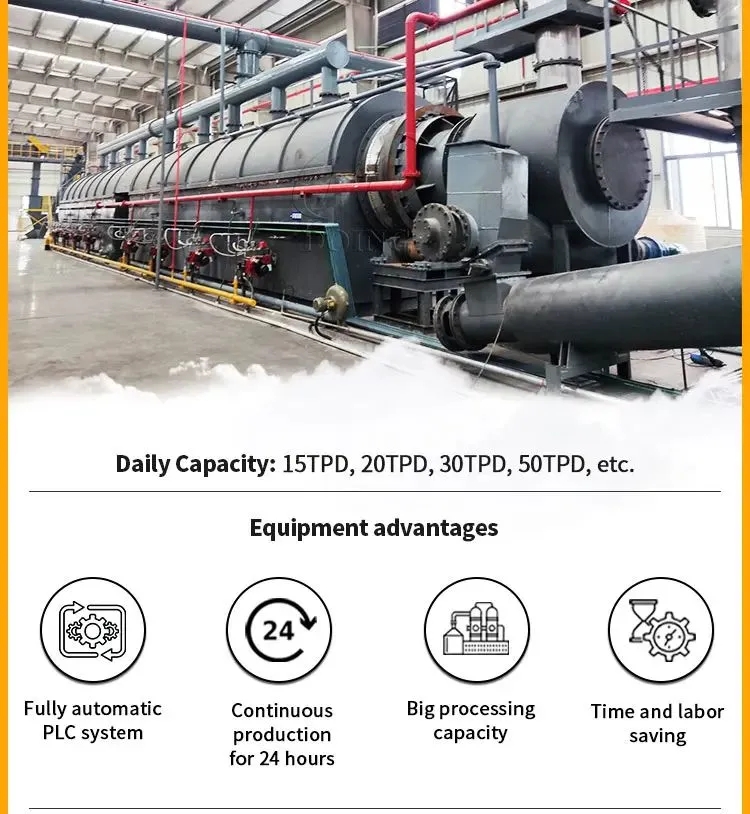

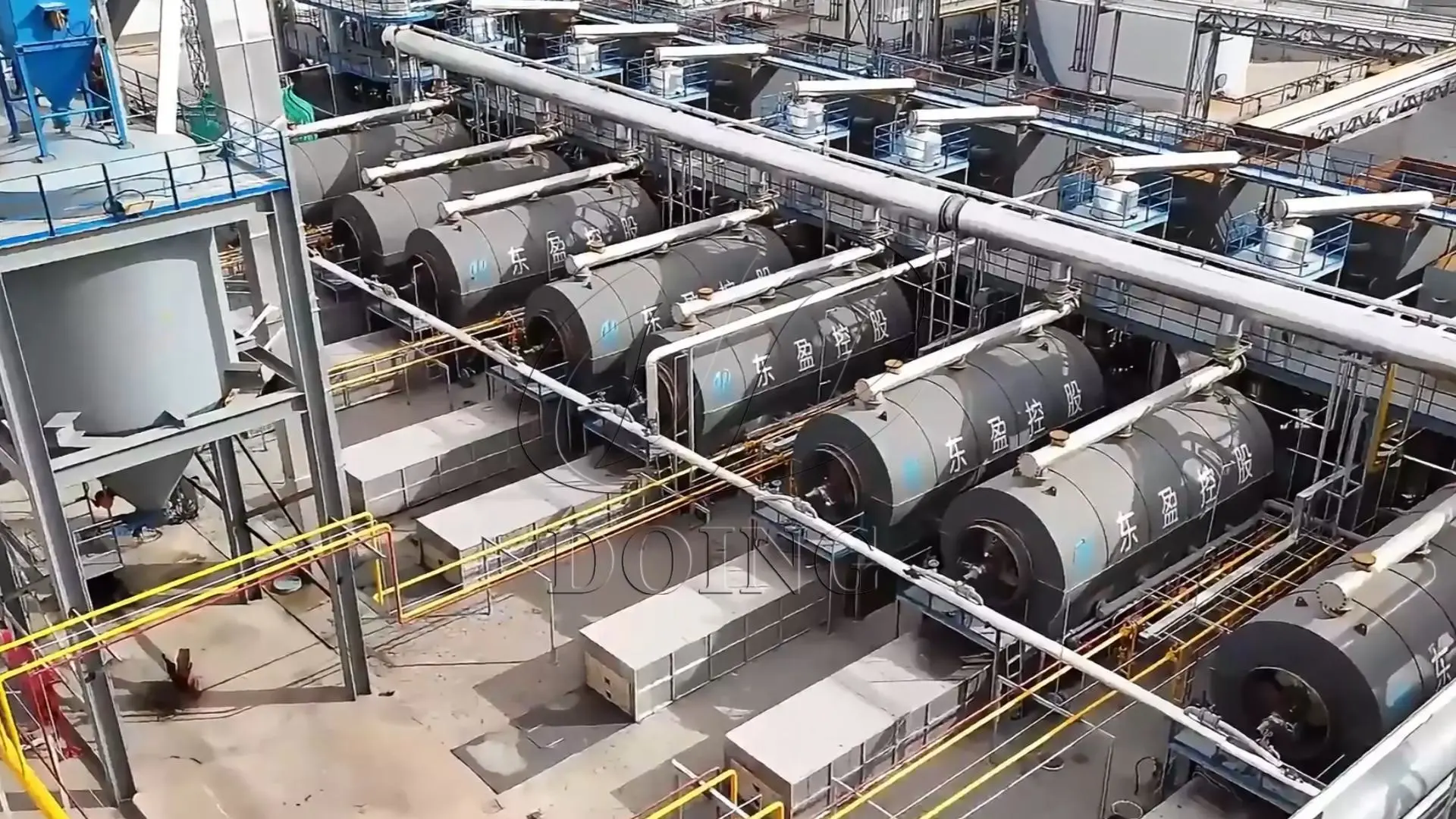

Scheme 3: New design continuous type pyrolysis plant


Item

Continuous Pyrolysis Plant

Model

DY-C-30

DY-C-50

DY-C-100

Cpacity

30T/D

50T/D

100T/D

Power

65Kw

80Kw

120Kw

Working type

Continuous

Reactor deisgn

Mutiple reactors (The quantity and size depends on the raw material condition)

Rotating

Internal rotating

Cooling system

Recycled waster cooling

Reactor material

Q245R/Q345R boiler plate

Heating method

Indireact hot air heating

Heating fuel

Fuel oil/gas

Feedstock

Waste tire/plastic/rubber

Output

Fuel oil, carbon black

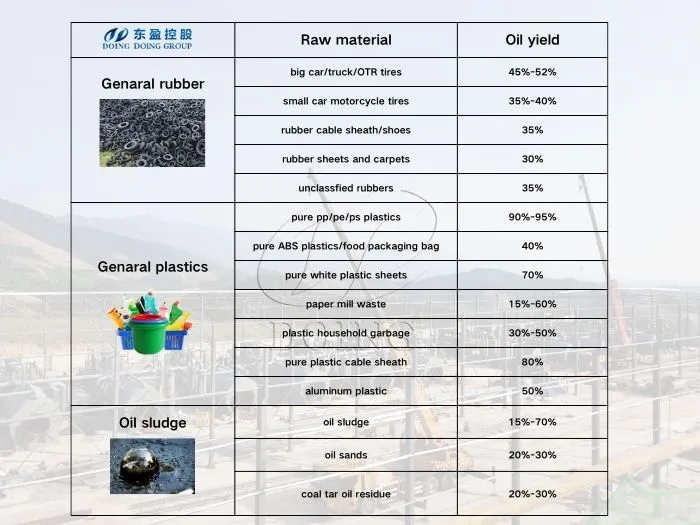

Raw Materials & Oil Yields

700 炼油设备原料及出油率.jpg

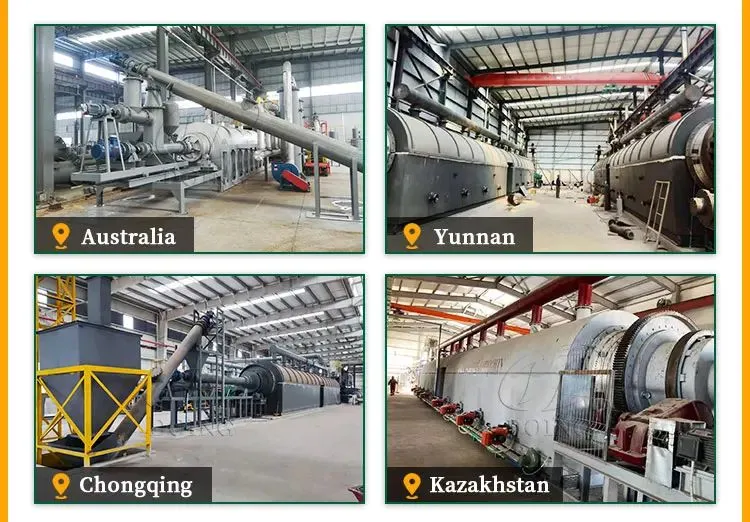

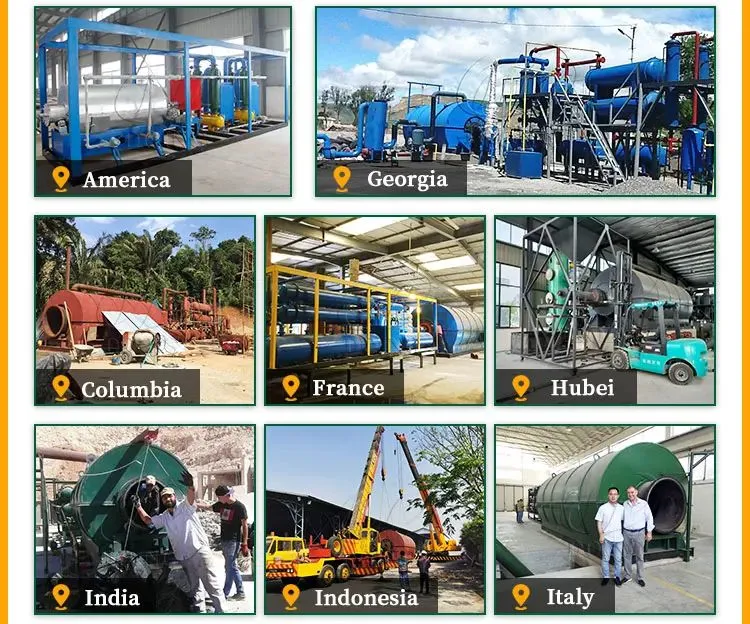

Project Case

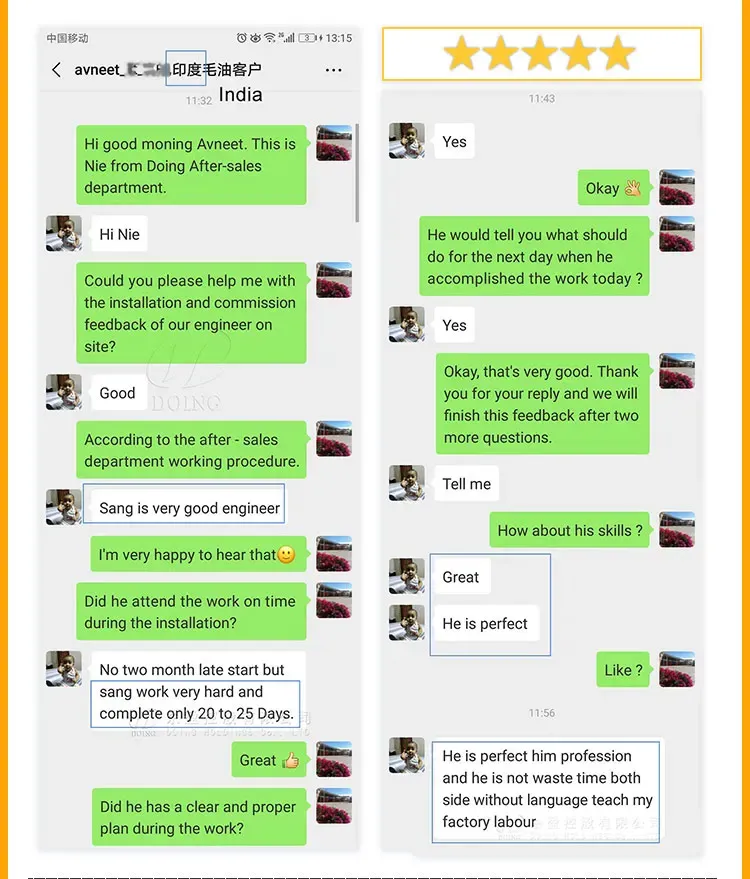

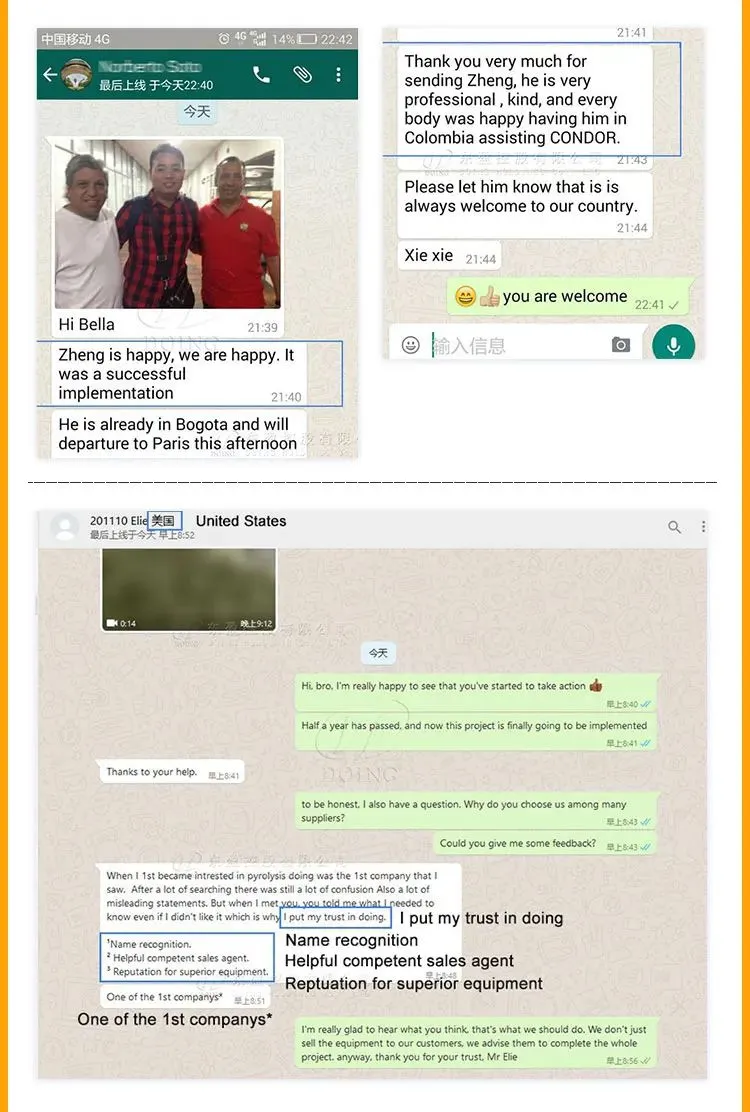

Customer Feedback



Our services



Company Profile

00:00

00:45

13

DOING HOLDINGS CO., Ltd

Henan Doing Environmental Protection Technology Co., Ltd, the subsidiary company of Doing Holdings Co., LTD, is a comprehensive environmental equipment manufacturer integrating technological design, research and development, machine production, sales and after-sales service in one.

Our main business: solid waste and hazardous waste treatment equipment, waste tire/plastic/rubber/oil sludge/ aluminum plastic pyrolysis plant, pyrolysis oil /used oil to diesel distillation plant, and related environmental protection devices. Now, our products sells well in 90+ countries and regions around the world.
