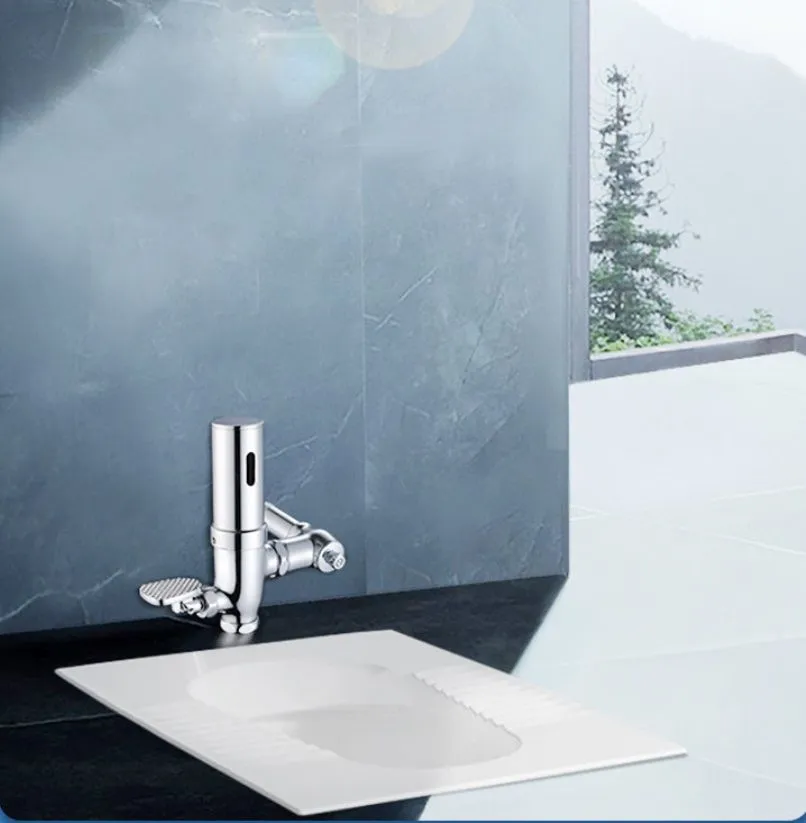

Surface mounted toilet foot flush valve

H-50A exposed foot stool sensor

Inlet pipe diameter: G1

Water outlet pipe diameter: G1

Applicable water pressure: 0.1Mpa -0.7Mpa

Power supply voltage: AC 220V-50/60Hz (AC)

Static power consumption:<2W (AC) 0.5mW (DC)

Sensing range: automatic ranging

Operating environment temperature: 0-45oC

Protection level: Ip56

External dimensions: 180 * 130mm

Functional features:

The induction flushing device for surface mounted toilets is designed and manufactured by introducing foreign technology and production equipment, absorbing the advantages of products from similar industries in Europe, America, and Japan, and adopting the principle of infrared induction.

1. Installation features: Surface mounted design, convenient pipeline connection; Equipped with a detachable flushing solenoid valve, the water outlet is uniform and smooth, making installation convenient.

2. Equipped with foot valve: According to the user's needs, the foot valve can be stepped on to flush the toilet at any time. In addition, the cleaner can step on the foot valve to clean the toilet, making the cleaning work high and convenient.

3. Streamlined design: beautiful and elegant, catering to modern trends.

4. Water saving: The machine requires 6L of water after each use (note: the water pressure is 0.3-0.6Mpa)

5. Hygiene: All flushing actions are automatically completed by sensors without the need for manual operation. Rinse thoroughly without leaving any odor, which can effectively prevent bacterial cross infection.

6. Intelligent odor prevention: When the toilet is not in use for a long time, the flushing valve will flush water every 24 hours to prevent the water in the trap from drying up, which may cause odor review.

7. Anti pollution function: It can prevent sewage from flowing back and contaminating water sources.
